QPix 360

Name: QPix 360 - SG QPIX360
Brand: SDJ
Price: 79 EUR
Availability: InStock

Discontinuous

QPix 360

QPix 360

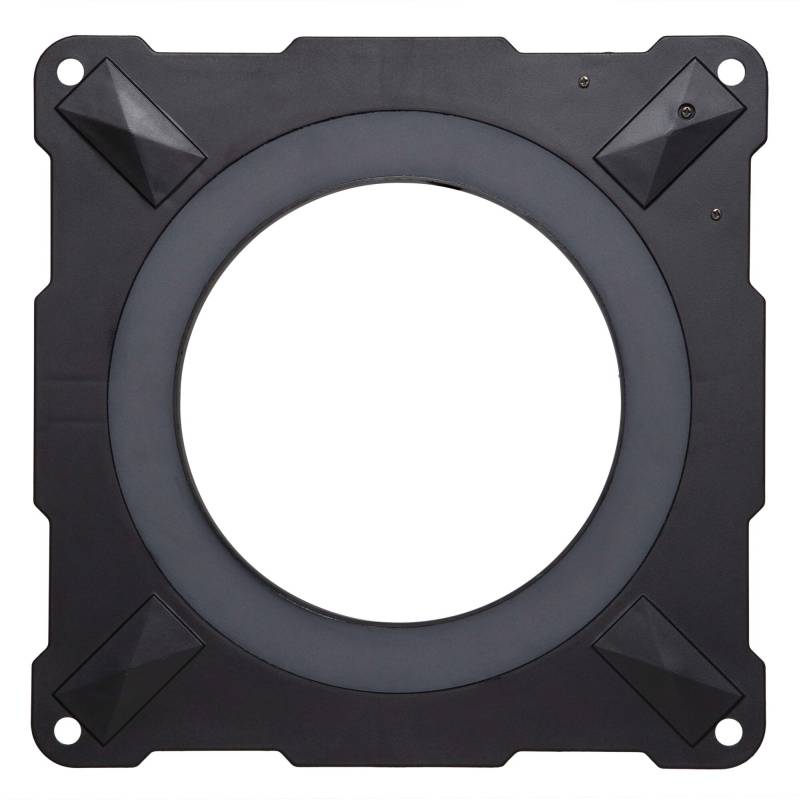

Led ring
144 SMD led RGB led/FC
Single pixel control
DMX control

Light source	144 SMD led RGB high efficiency (for each QPix 360) Led refresh frequency >400Hz flicker free
Optic system	Viewing angle 120° x 120° Flat smoked diffuser (flat white diffuser on request) 24 sectors control (for each QPix 360) Pitch 16,6 mm
Color system	RGB led source
Effects	Individual control for each RGB sectors Linear dimmer Electronic strobe Color macro and sectors macro can be recalled by DMX
Control and programming	6 different DMX configuration available 4/7/18/108/432/436 Proprietary signal control between QPix 360 (cable include) DMX control by QPix 360 BOX (sold separately) Each QPix 360 BOX control 6 pcs of QPix 360 maximum Master/Slave mode

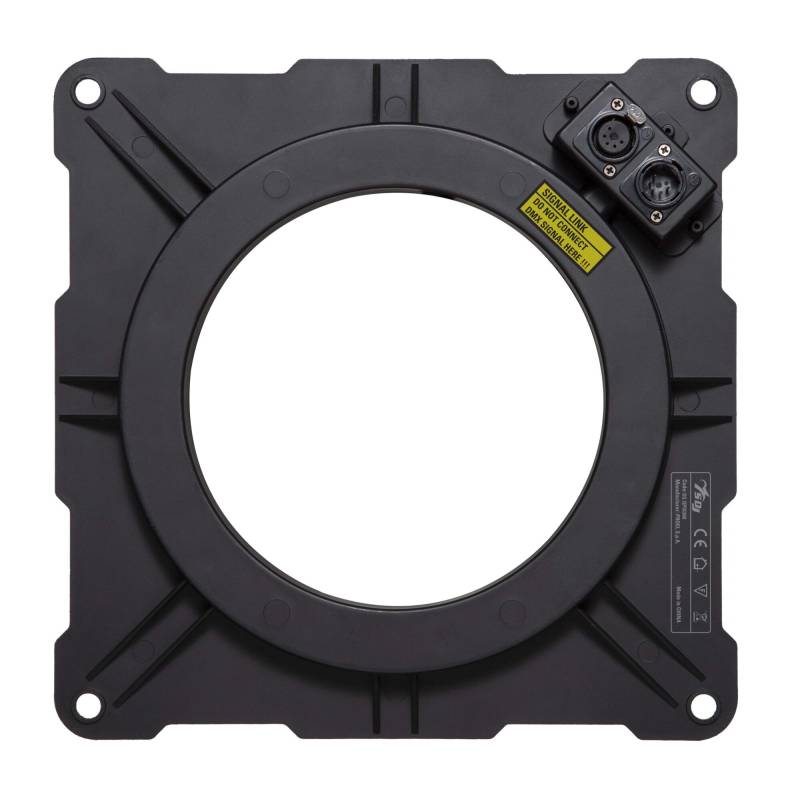

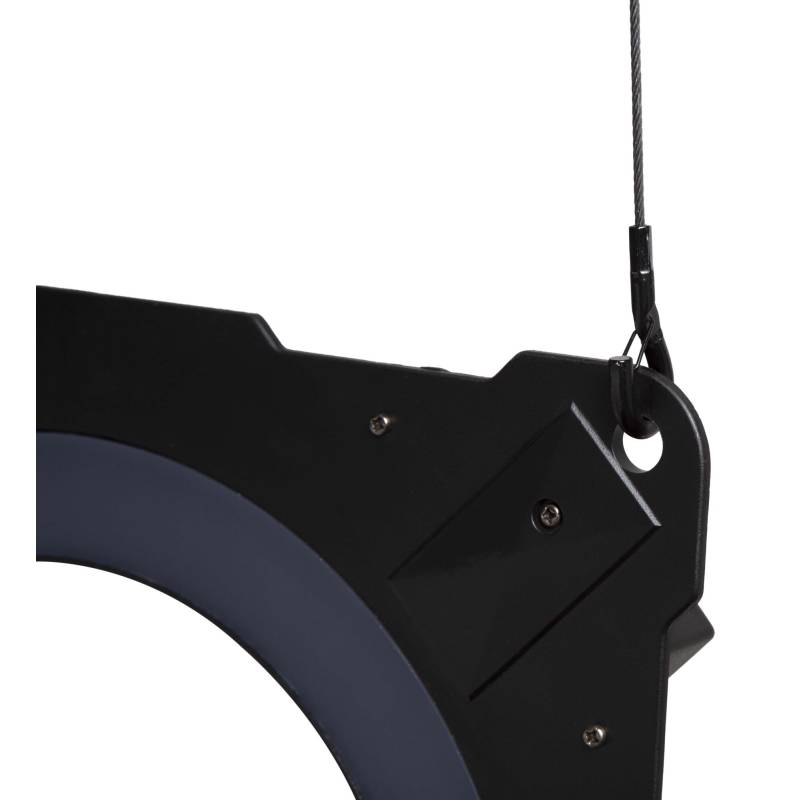

Structure and cabinet	ABS housing black color 4 Mounting points 2 steel connection ropes (included) for each QPix 360 1 multi ways kit connection (included) for each QPix 360 1 clamp mounting point for each QPix 360 Box 5-poles XLR IN/OUT on the QPix 360 (only for dedicated signal cable) 3-poles XLR IN/OUT on the QPix 360 Box for the DMX signal 5-poles XLR OUT on the QPix 360 Box (only for dedicated signal cable) IP rating 20
Power supply	Maximum power for the QPix 360: 28W Maximum power for the QPix 360 Box: 32W IN/OUT power connection with PowerCON on the QPix 360 Box 85cm signal cable 5-poles XLR (included inside each QPix 360/QPix 360 box)
Weight and dimensions	QPix 360 weight: 1kg QPix 360 Box: 2kg QPix 360 sizes: 320x320x30 mm QPix 360 Box sizes: 200x10x70 mm
