Description

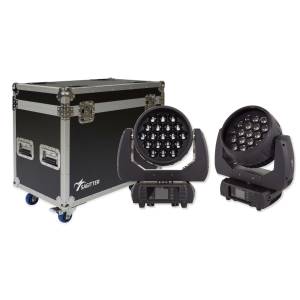

Quartz 300
19X15W Osram led RGBW/FC
Single pixel control
Motorized zoom 8°-62°
DMX control

  • Model: SG QUARTZ300
  • Weight: 13.50Kg
  • EAN: 8032496631873
  • This product has a minimum quantity of 1

Quartz 300 is an innovative versatile led moving head, which can outstandingly perform several different jobs during one show. Thanks to the innovative Full Color technology of its 19 brand new leds OSRAM RGBW/FC, 15W each, Quartz300 guarantees a superior light washing over surfaces and stages as well as a stunning brightness over the entire chromatic range. Quartz300 runs onboard an advanced zoom technology with dedicated optics, which allows to keep the highest color mixing quality even running the digital zoom from 8 up to 62 . Furthermore the advance zoom technology enables Quartz300 to release a narrow and defined light ray, performing a “beam effect”, as well as a wide and diffused beam, performing a “wash effect”. This brand new moving head series offers the users the “single pixel” control system thus create several graphic effects, which combined to the optical system guarantees an effective “air fx”.

Light source19x15W RGBW Full Color
LED lifespan: >50.000h
LED Refresh frequency: >400Hz flicker-free
Optic systemBeam angle: zoom from 8° - 62°
Luminous flux: 8600Lux (5m – full ON – 8°) / 800Lux (5m – full ON – 62°)
Color systemLED source 4 in 1 RGBW Full Color
Infinite chromatic possibilities
EffectsLinear dimmer 0-100%
Electronic high speed strobefrom 1 to 20 flashes/s, with adjustable speed
Random strobe and pulse effect with adjustable speed
Single Pixel control
Color macros and Pixel macros selectable from DMX
Control and programming3 different DMX channels configurations: 14/20/92 channels
Protocol USITT DMX 512
Pan&Tilt 8/16 bit resolution selectable
Master / Slave mode
Reset via DMX
Structure and cabinetBlack metal Housing, and plastic materials with high resistance
LCD color graphic display
PAN selectable 630°/540°/270° and TILT selectable 270°/180°/90°
Mounting points: 1 pairs of 1/4 turn locks
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
3-poles XLR in/out connection
IP Rating: IP 20
Forced air fan cooling system with electronic control
Power supplyInput Voltage: AC~100-240V 50/60Hz
Switching power supply unit
Power consumption 350W
Power IN/OUT connection with powerCON sockets
Power supply cable 1,5 mt included
Weight and dimensionsNet weight: 11,5 kg
Dimensions: 420x205x450 mm
