Description

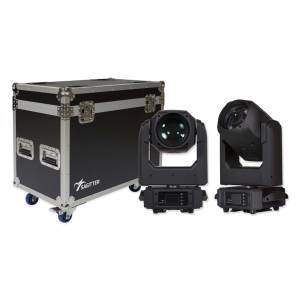

Archer Beam B5
Lamp Sirius 5R Osram 189W
1 wheel 11 Colors
1 wheel 16 fixed gobos
8 facet rotating prism
5 facet rotating prism
DMX control
Lamp (included)

  • Model: SG ARCHERB5
  • Weight: 17.00Kg
  • Dimensions: 36.00cm x 28.00cm x 34.00cm
  • EAN: 8032496468950
  • This product has a minimum quantity of 1

The new series of Archer Beam B5 and B10 moving head projectors are equipped with Osram discharge light sources belonging to the Sirius family of 189W and 280W. Their special optics are capable of emitting highly defined beams of light - up to 2.5 ° - while ensuring maximum brightness thanks to the numerous combinations of AIRFX, resulting from an innovative system of optical prisms. The wide range of controls allows management of the "overlapping" system of the two prisms - both linear and circular - achieving graphic effects never seen before.

Light source

• Metal Halide Lamp Osram SIRIUS HRI 190W

• Color temperature: 8200K

Optics

• Projection angle zoom from 2,5 °

• Electronic focus

• Brightness: 39120 LUX@20m

Color system

• Color wheel 11 dichroic filters + white (CTO – CTB)

Effects

• Fixed gobo wheel with 16 static gobos (14 gobos + 2 beam reducers)

• Gobo scroll effects at variable speed

• Circular prism 8 facet with bidirectional rotation and indexable

• Linear prism 5 facet with bidirectional rotation and indexable

• Frost filter

• Linear dimmer from 0 to 100

• High speed strobe effect

• Random strobo effect

Control and programming

• 3 DMX configurations available: 15/16/18 channels

• Control signal USITT DMX512

• Wireless DMX by Wireless Solution ready (kit not included)

• Selectable 8/16bit Pan & Tilt resolution

• Function reset controlled by DMX control

Structure and cabinet

• Metal internal structure with hi-resistance ABS cover

• High resolution LCD colour display

• Pan & Tilt three-phase motion motors

• Pan angle 540°

• Tilt angle 270°

• Mounting points 1 pairs of 1/4-turn locks omega older

• Automatic repositioning of Pan and Tilt

• Pan&Tilt movement lock system

• XLR 3-poles DMX IN/OUT connection

• IP rating 20

• Controlled cooling system

Power supply

• Input Voltage: AC~100-240V 50/60Hz

• Switching power supply unit

• Max power: 230W @ 230VAC

• Power connection with TRUE ONE IN/OUT connectors

Weight and dimesions

• Net weight: 15 kg

• Dimensions (L x A x P): mm. 307x494x220
