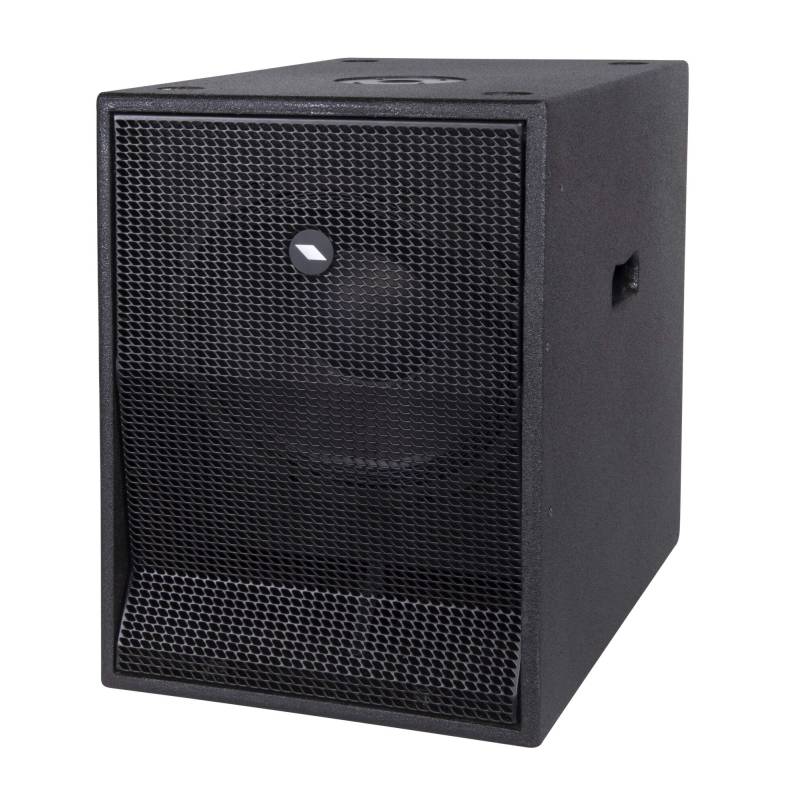

S12 A Active Subwoofer
![S12 A Active Subwoofer S12 A Active Subwoofer](https://beta.b2b.proel.com/image/cache/data/proel/S12A_34_DX-800x800h.jpg)
![S12 A Active Subwoofer S12 A Active Subwoofer](https://beta.b2b.proel.com/image/cache/data/proel/S12A_FRONT-800x800h.jpg)
![S12 A Active Subwoofer S12 A Active Subwoofer](https://beta.b2b.proel.com/image/cache/data/proel/S12A_V10PLUS_LR-800x800h.jpg)
![S12 A Active Subwoofer S12 A Active Subwoofer](https://beta.b2b.proel.com/image/cache/data/proel/S12A_34_DX-80x80h.jpg)
![S12 A Active Subwoofer S12 A Active Subwoofer](https://beta.b2b.proel.com/image/cache/data/proel/S12A_FRONT-80x80h.jpg)
![S12 A Active Subwoofer S12 A Active Subwoofer](https://beta.b2b.proel.com/image/cache/data/proel/S12A_V10PLUS_LR-80x80h.jpg)
Description
- Model: S12A
- Weight: 21.60Kg
- Dimensions: 63.00cm x 46.00cm x 62.00cm
- EAN: 8032496649274
- Warranty Extension: 4 Years
- This product has a minimum quantity of 1
PROEL introduces the S Series, a new range of compact and powerful sub-woofers designed to complement PROEL full-range speakers. The variety of size, power and SPL offered by the four active S models provides, at an unbeatable price point, the perfect low extension solution for any speaker model available in the PROEL range.
All the S models feature high-excursion woofers in a Hybrid Band Pass configuration (HBP). This innovative design provides a higher efficiency compared to direct radiation sub-woofers and, in addition, guarantees a much better coupling of the tuning ducts with the external air, reducing the distortion and the air turbulence, for a more defined sound and deep and punchy lows.
The new CLASS D amplifier modules with SMPS (Switch Mode Power Supply) can generate a massive amount of continuous power in a compact, lightweight and reliable package. All the modules include a STEREO pre-amp section, 24dB/oct. crossover filters with selectable frequency and PHASE reverse switch.
The cabinets are built with 15/18mm plywood and finished with extra-durable polyurethane paint. They feature two flush handles and four sturdy 75mm wheels for an easy transport (S15 and S18 only).
- Compact active HBP sub-woofer
- 12” woofer with 3” VC for a deep and extended response
- 1200 W peak power
- STEREO input, link and output
- SPL MAX 128 dB
- Frequency response 43 Hz - 160 Hz
System type | Hybrid Band Pass subwoofer |
Loudspeaker | 12" woofer with 3" VC |
Amplifier Continuous Power | 600 W |
Frequency Response | 43 Hz - 160 Hz |
Max SPL | 127dB |
Connectors | IN: 2 x NEUTRIK COMBO |
OUT: 2 x NEUTRIK XLR-M | |
LINK: 2 x NEUTRIK XLR-M | |
Controls | Volume, GND lift |
X-over Frequency, Phase | |
Power Supply | 230 VAC or 120 VAC 50/60 Hz |
Weight | 19 kg (41.9 lb) |
Cabinet | 15/18 mm plywood |
Black anti-scratch paint | |
1.5 mm metal grille | |
2 handles | |
1 x pole socket | |
Dimensions (W x H x D) | 360x500x520 mm |
