Description
UP-Light battery-powered architectural
4x20W RGBL/FC LEDs
IP65 outdoor use
Wireless DMX control - CRMX
Vision Control APP
- Model: SG NOMADNANO
- Weight: 0.01
- EAN: 8032496933885
- This product has a minimum quantity of 1

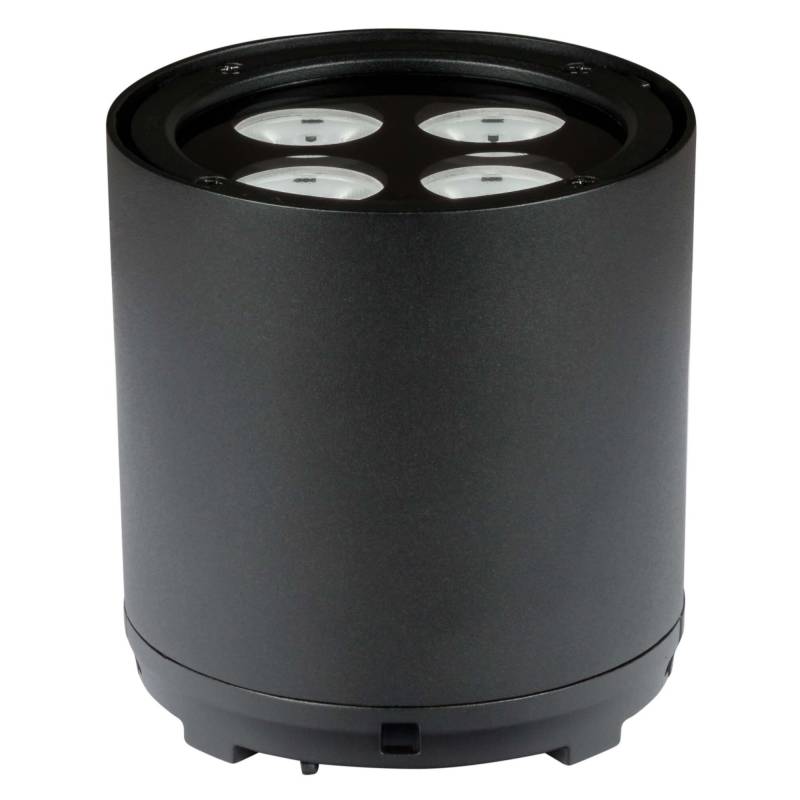

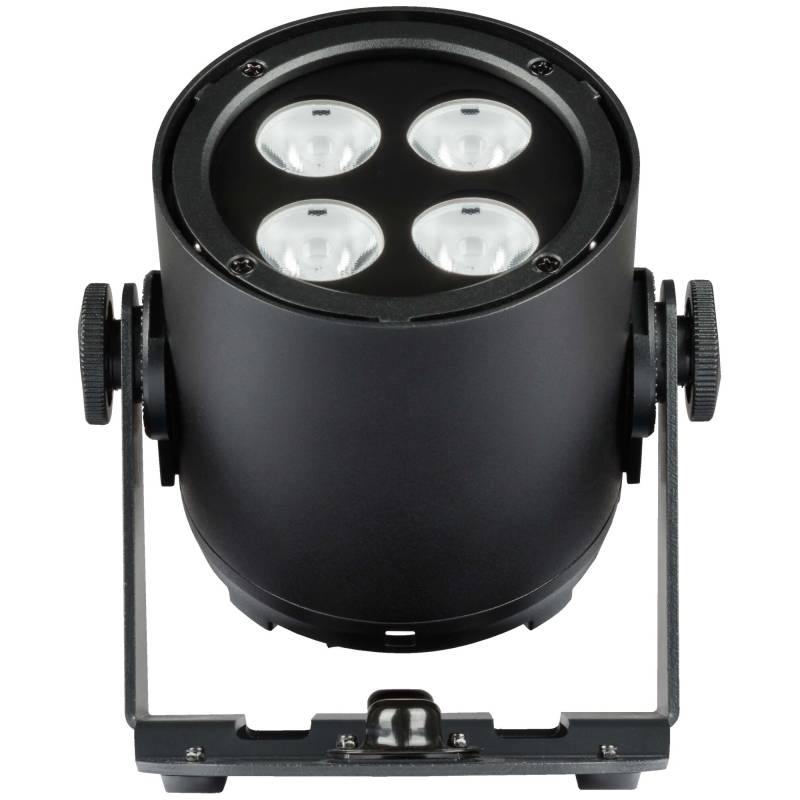

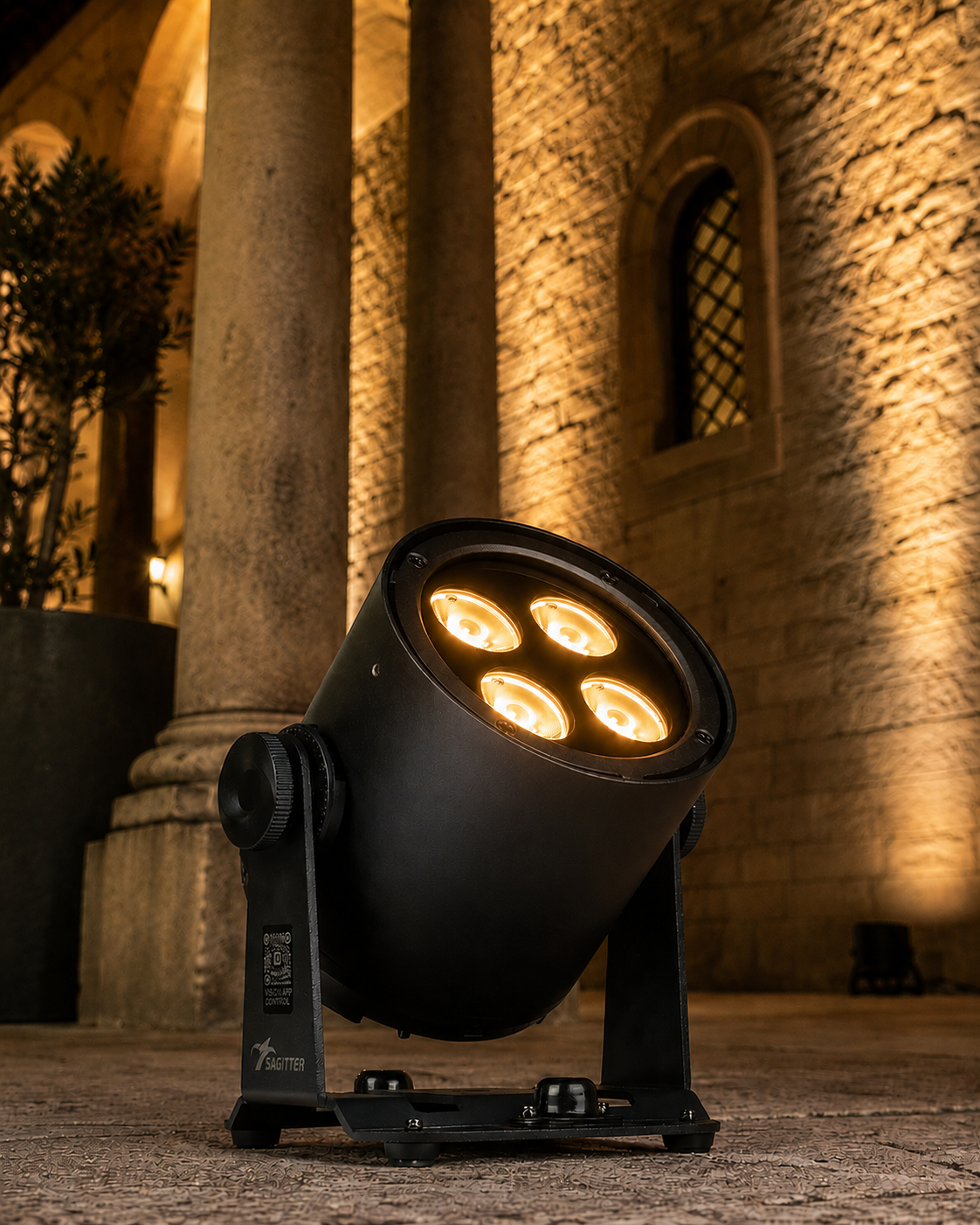

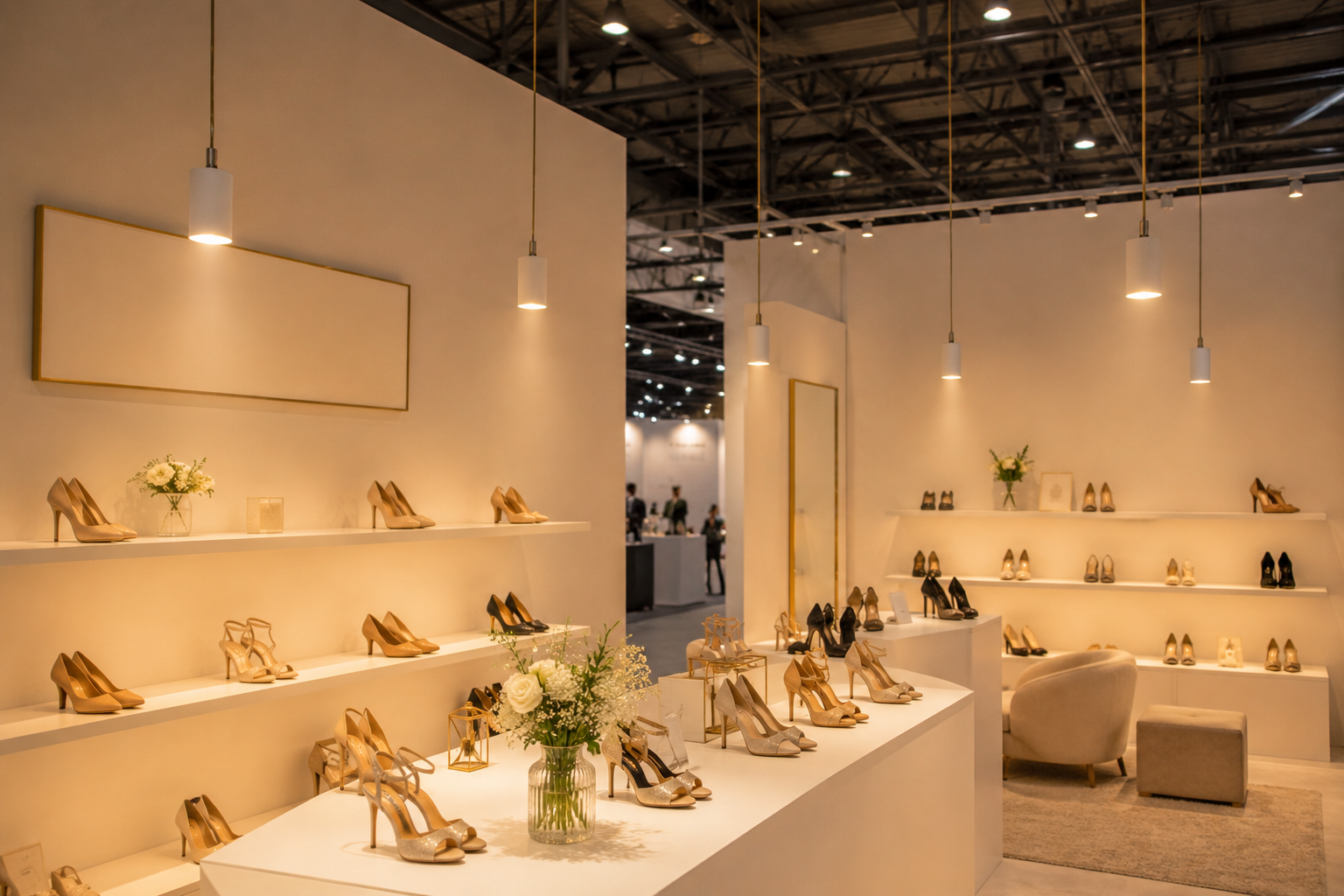

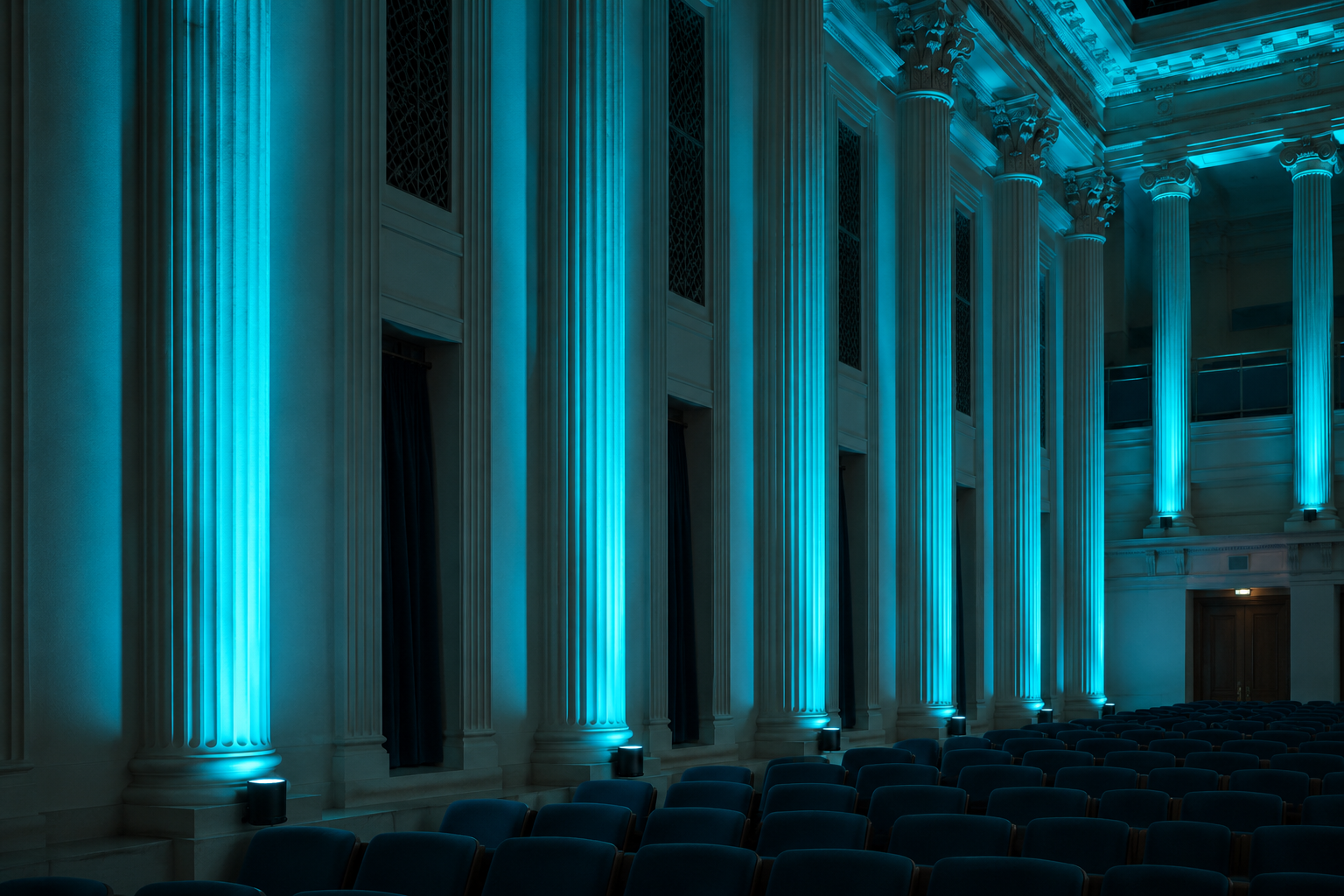

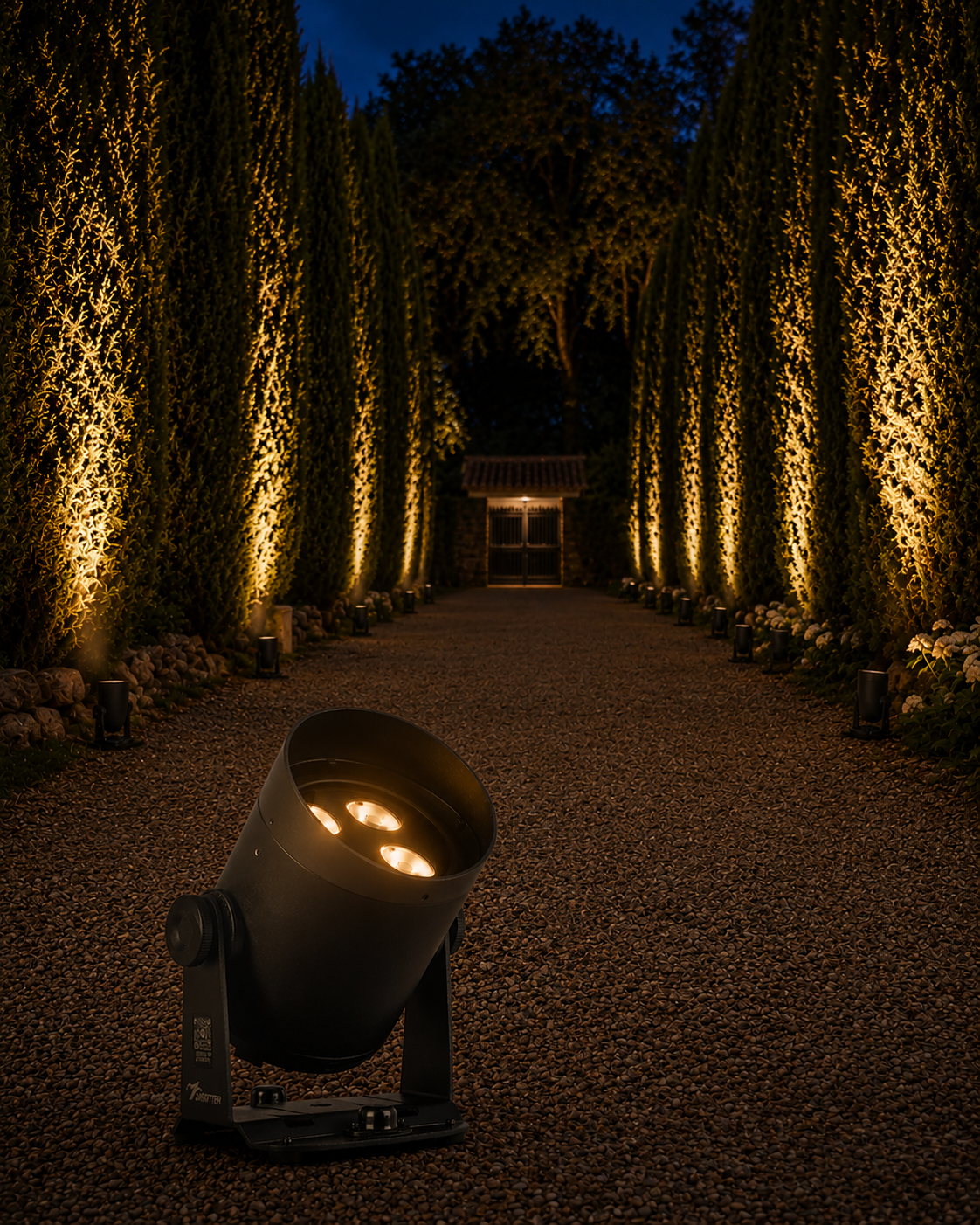

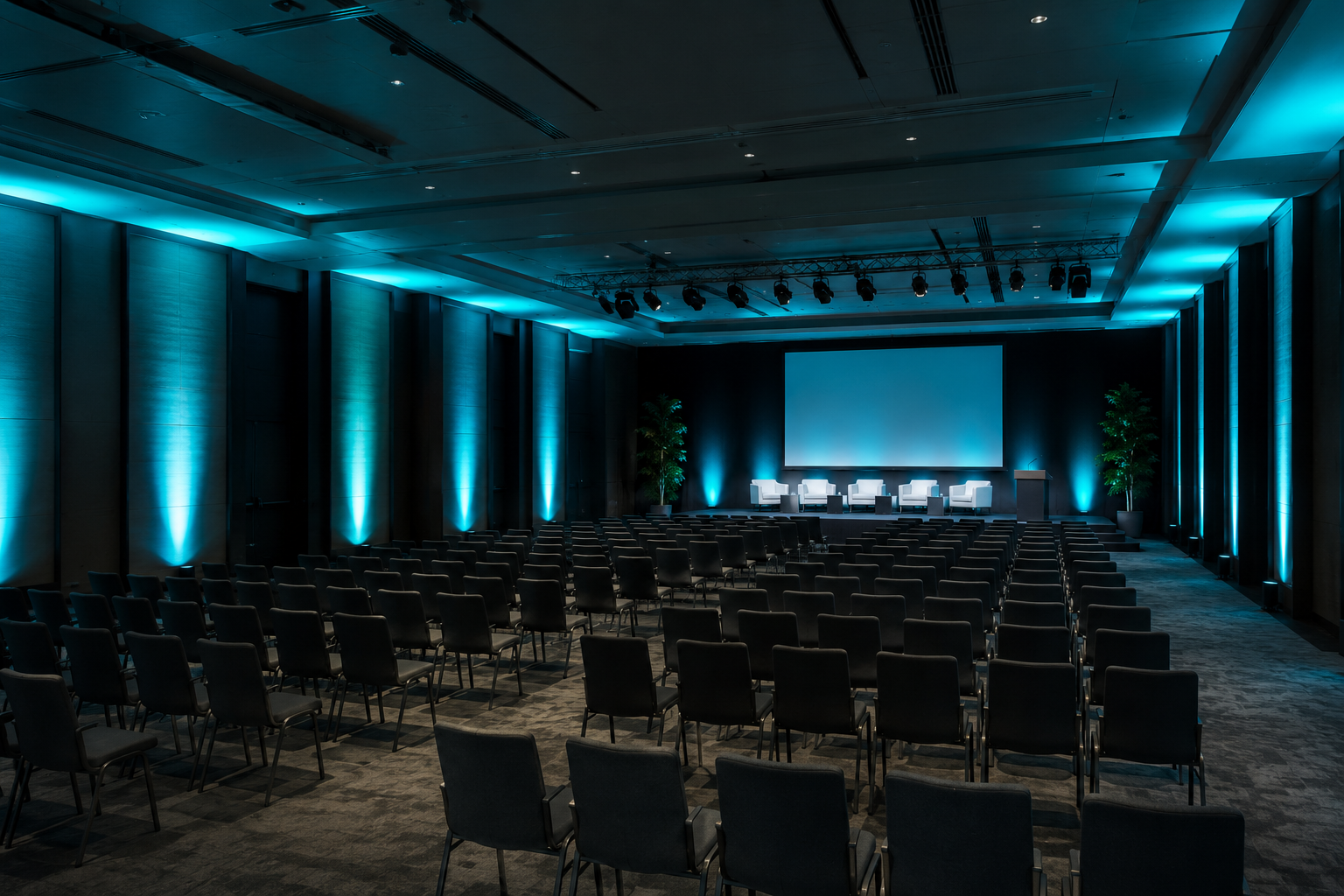

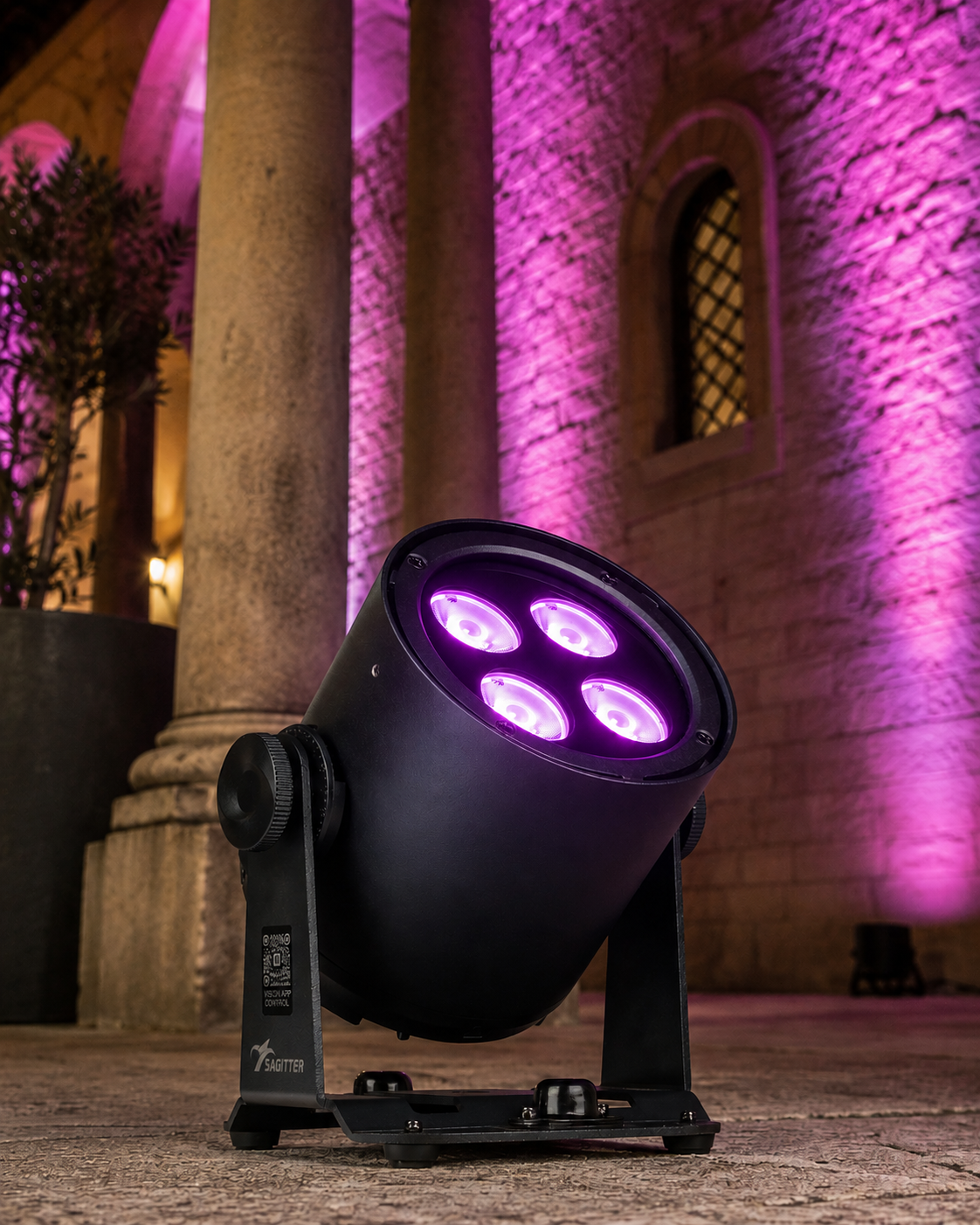

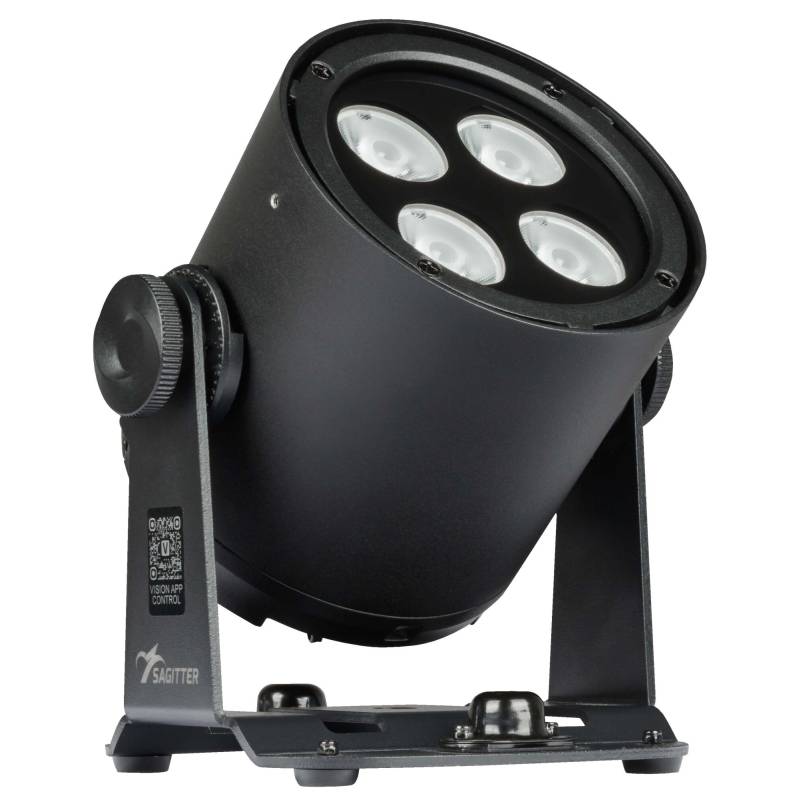

NOMAD NANO is a compact professional IP65 battery-powered LED projector designed for architectural applications, events, and scenic installations where maximum flexibility, high color rendering, and complete positioning freedom are required.
Thanks to its 4-color RGBL emission system, IP65 protection rating, integrated lithium-ion battery, and CRMX wireless DMX transceiver, NOMAD NANO represents an advanced solution for lighting designers who require color accuracy, operational autonomy, and intelligent control even in complex environments.
It is equipped with a high-efficiency RGBL LED source and delivers an extended and natural color reproduction, with balanced whites and a wider color gamut compared to traditional RGB systems. The optical system ensures a powerful and uniform light output, ideal for architectural lighting, ambient light effects, and events.
NOMAD NANO is completely flicker-free thanks to high-frequency electronic management.
The control system offers extensive operational flexibility with multiple DMX modes, built-in automatic programs, static color management, and advanced light parameter control. Battery management is optimized to maximize runtime depending on intensity and selected operating modes.

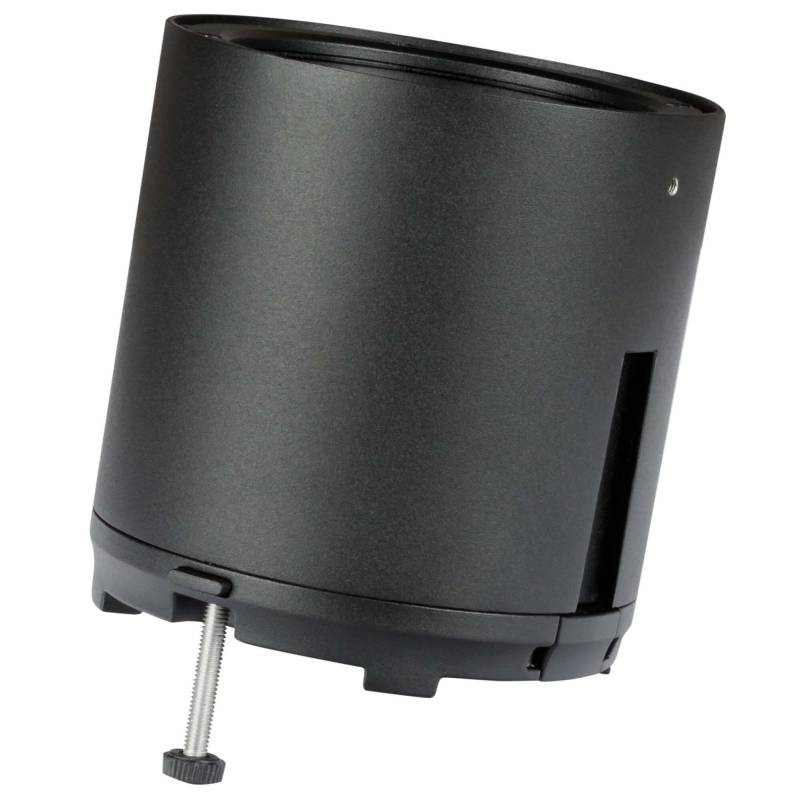

The compact and robust structure is made of high-strength aluminum, designed to ensure durability, efficient heat dissipation, and quick installation even in demanding outdoor environments.

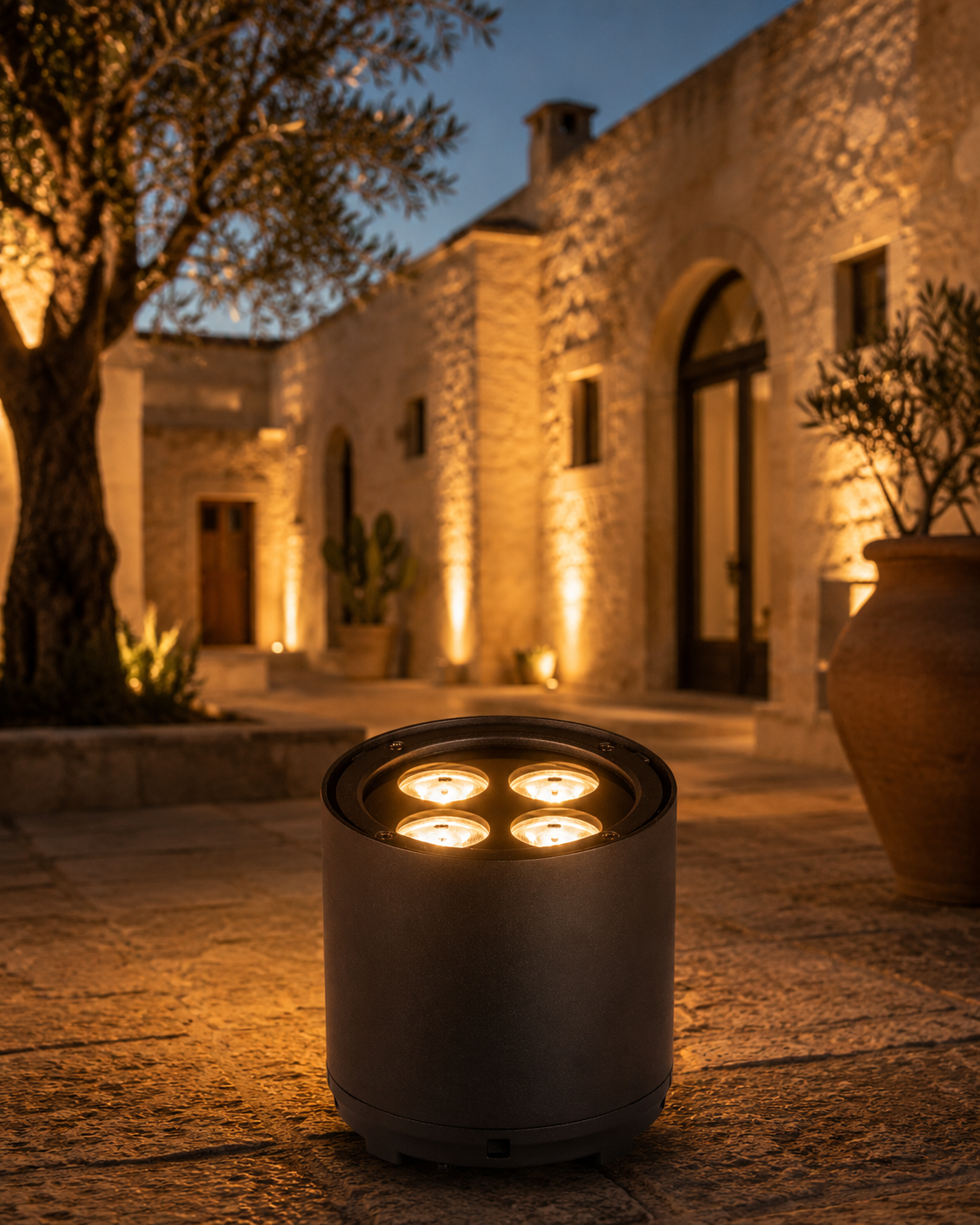

The cylindrical form factor is particularly effective in contexts where a discreet and minimal design is required. As optional accessories, two dedicated covers are available: one in white finish and one mirrored version, allowing the product to blend seamlessly into different architectural environments or, alternatively, to become an intentional reflective design element.

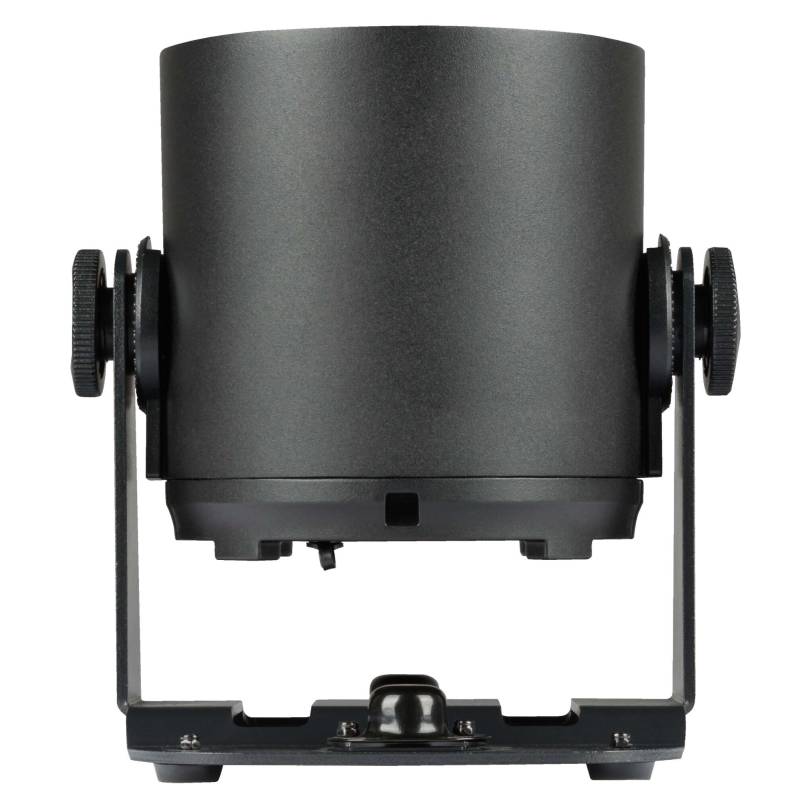

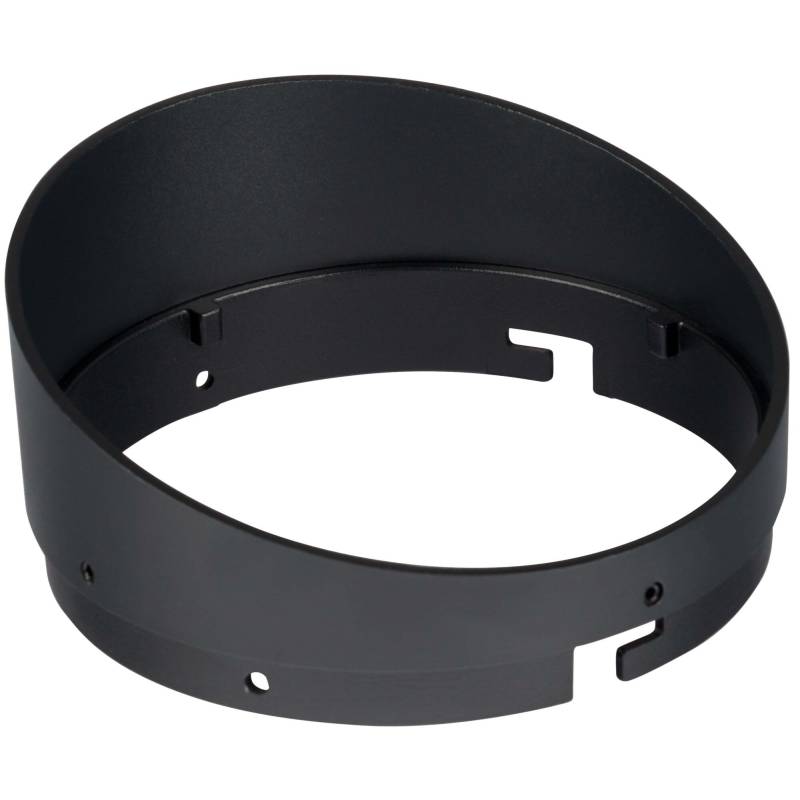

The bayonet mechanical system allows quick installation of dedicated accessories such as the anti-glare filter and the optional diffuser sphere. The diffuser sphere is the accessory that transforms the projector into a decorative light source with a soft and uniform output, expanding its scenic applications. The system also integrates interchangeable magnetic filters, designed to quickly modify the quality and diffusion of the light beam. The mounting bracket is removable via a fast lock system, enabling quick installation and removal without tools.

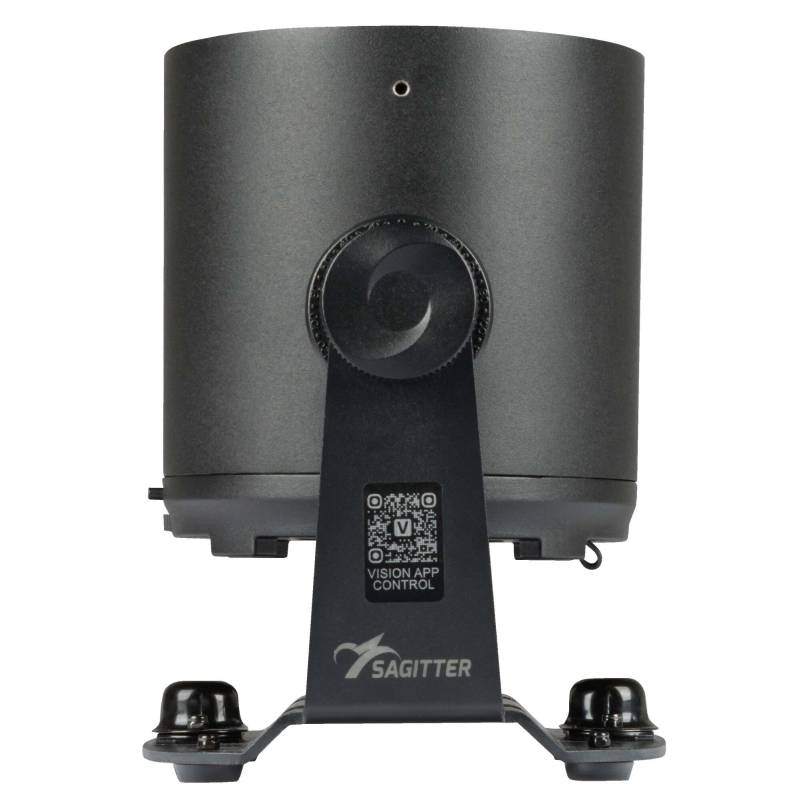

To make control accessible to everyone, wireless technology has been integrated with the dedicated VISION CONTROL App. Thanks to its intuitive interface, every parameter of NOMAD NANO can be easily monitored and adjusted, static programs and complex dynamic effects can be created with a simple touch, without the need for cables or external controllers. The wireless system uses CRMX technology. Through the app it is also possible to manage DMX addressing, select channel modes, and monitor in real time battery status and runtime. This allows both professionals and less experienced users to work with simplicity, precision, and full operational control.
| Light source | 4x20W led RGBL – Full Color LED lifespan: > 50.000h LED refresh frequency: > 600Hz a 18 KHz flicker-free |
| Optic system | Beam Angle: 12° Illuminance: 1670 lux @ 5m (full on) |
| Color system | RGBL Full color Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Electronic strobo, pulse, random |
| Controll & programming | 4 DMX configurations available:
2/3/4/12 channels Key lock password for display lock Protocol USITT DMX 512 Built-in wireless DMX CRMX receiver Vision Control APP Static Color mode Auto mode with 12 programs CCT presets with 11 macros Linear CTC from 2.500 K to 10.000K Virtual color wheel with 51 colors 4 Dimmer curves: Linear, Square, Inv-Square, S-Curve 4 Dimmer speed Power management system Emergency light function |
| Structure and cabinet | High resistance 6063 die cast

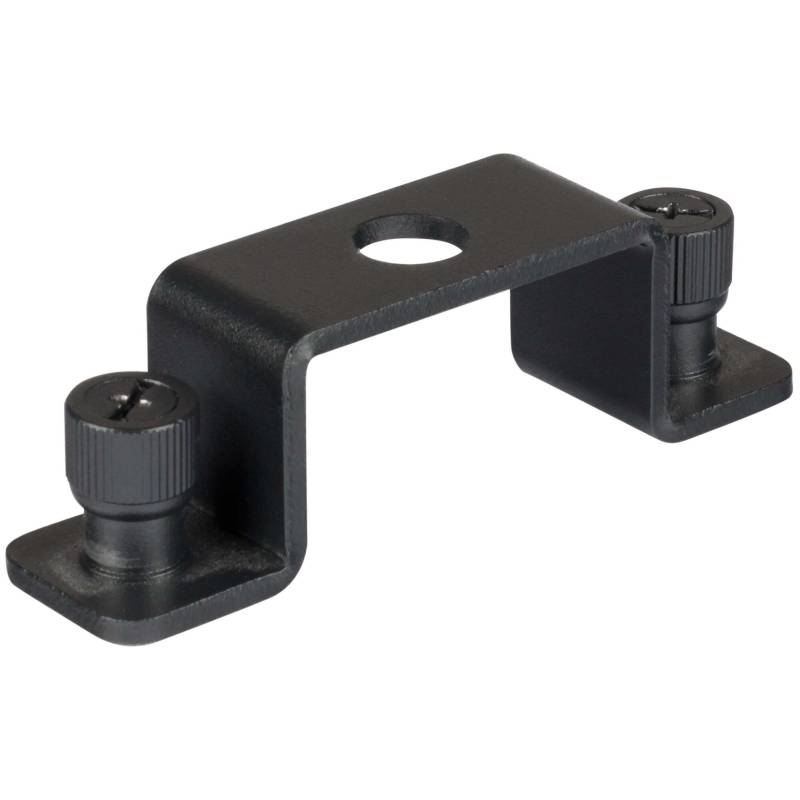

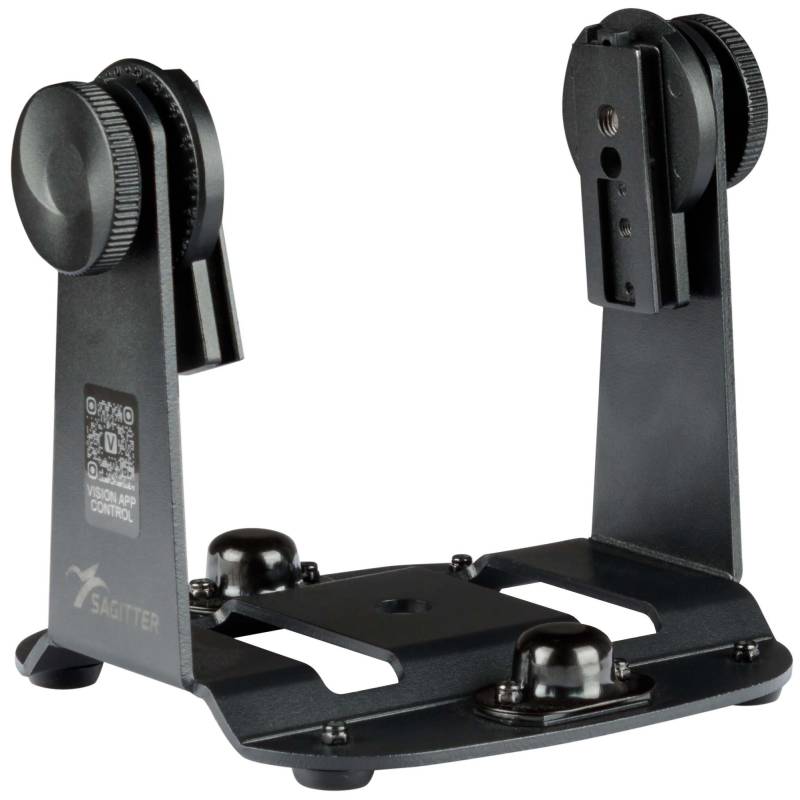

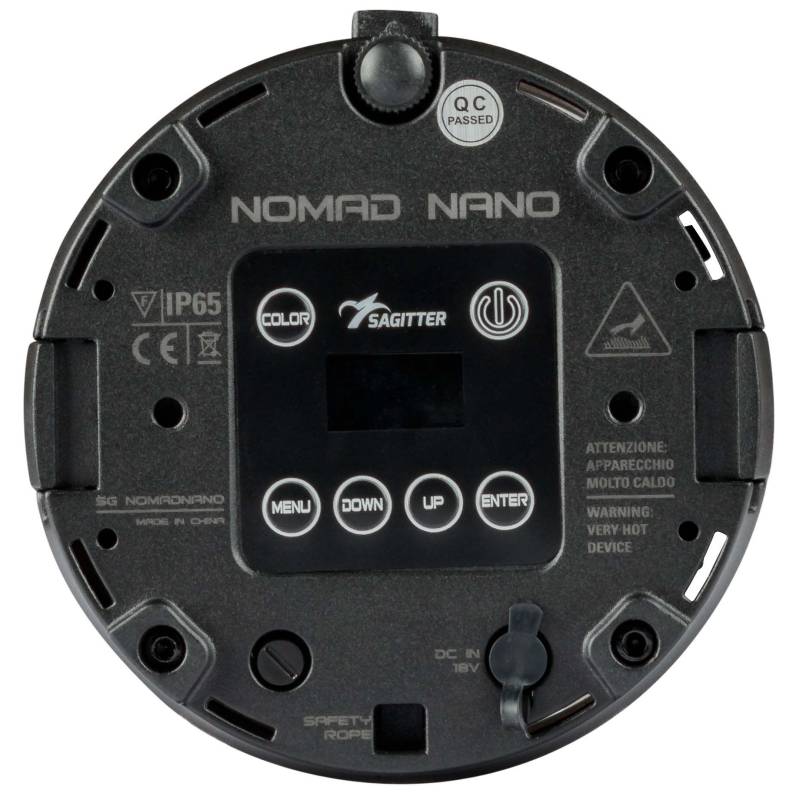

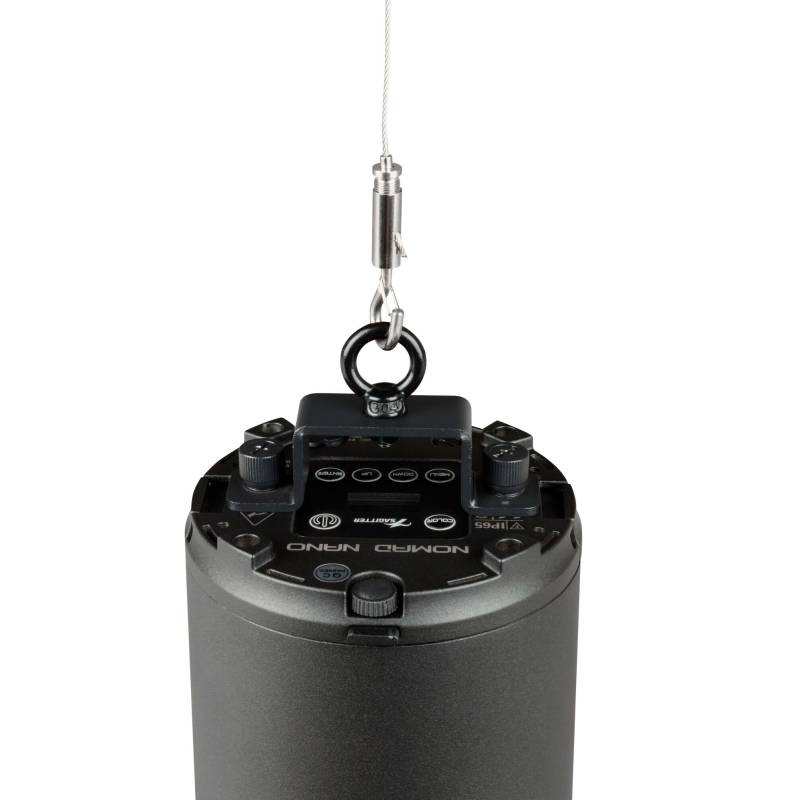

aluminum housing Graphic LCD color display Front tempered glass “Light up” positioning with adjustable angle IP65 rating Magnetic frost filter: 60°x10° (included) Floor bracket with Fast Lock system (included) Suspension bracket (included) Antiglare ring (included) |
| Power Supply | Input Voltage: 18 VDC for
standard use and battery recharge Rechargeable internal Li-Ion battery: 14,8VDC – 10,5Ah Runtime battery: ~ 2h:30m (full ON – Boost power mode) Runtime battery: ~ 4h:30m (Color change – Boost power mode) Charging cycle: ~ 6 hrs (Projector turned off) Power adapter 18 VDC - 5A included |
| Weight and dimensions | Net weight: 2,4 kg (accessories
included) Dimensions: 195hx130diam mm |
