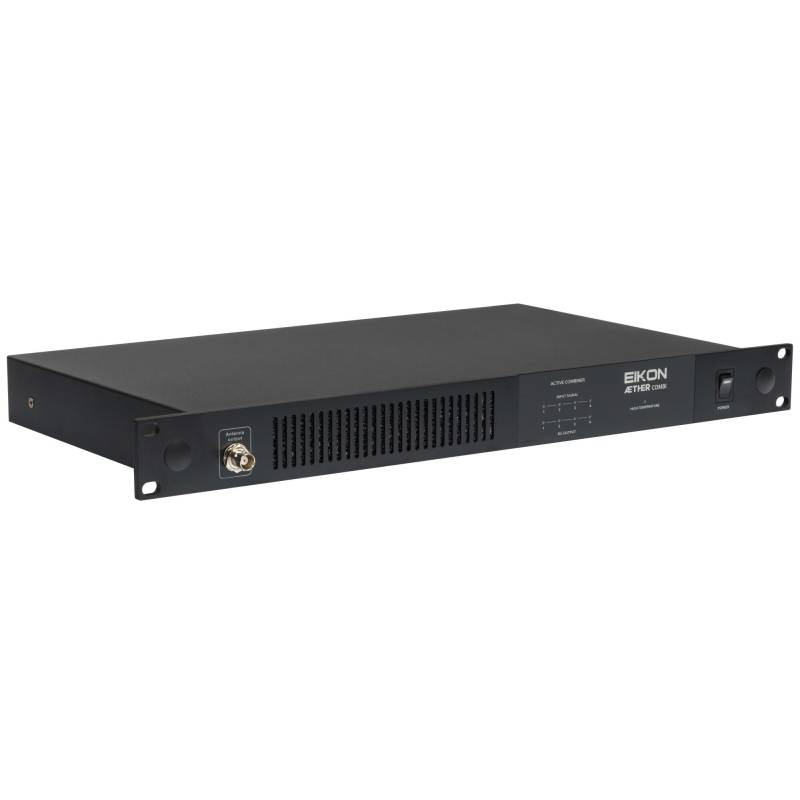

AETHERCOMBI UHF Antenna Combiner

AETHERCOMBI UHF Antenna Combiner
New
AETHERCOMBI UHF Antenna Combiner

Description

4 channel UHF Antenna combiner for AETHERIEM1 In-Ear-Monitor systems

  • Model: AETHERCOMBI
  • Weight: 3.00
  • EAN: 8032496930204
  • This product has a minimum quantity of 1
Compare this Product

AETHERCOMBI  BNC antenna combiner offers 4 RF inputs, synthesizing into one output.

AETHERCOMBI circuit includes 4 DC 12V, 600mA output, and with overcurrent and shortcircuit protection functions, to drive 4 AETHERIEM1 In-Ear-Monitor systems.

It features temperature protection function; when the cooling fan is faulty and unable to effectively dissipate heat, the system automatically shut down to protect the equipment.

Frequency range450~950MHz
Output Gain0±3dBm
Minimum detection threshold0±3dB
Level when the light on18dBm±3dBm
Work current<600mA
Outpur Impedance50Ω
Input Impedance50Ω
Power supply1 2 V / 6 0 0 m A ( 7 . 2 W )
Working temperature-10~+50°C
Weight2000g
Dimension(Length*Width*Height482*45*245mm
