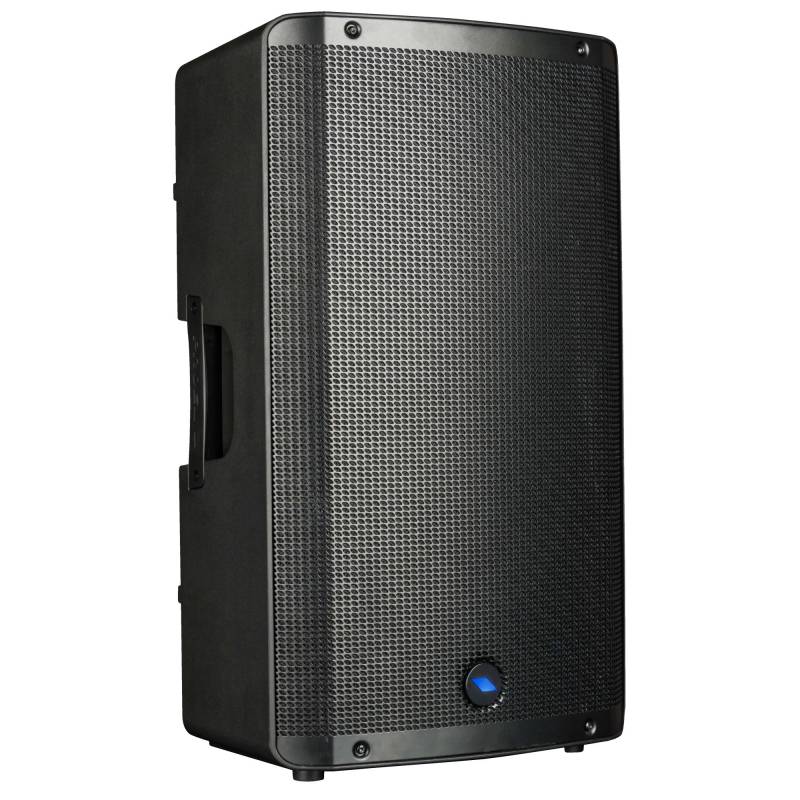

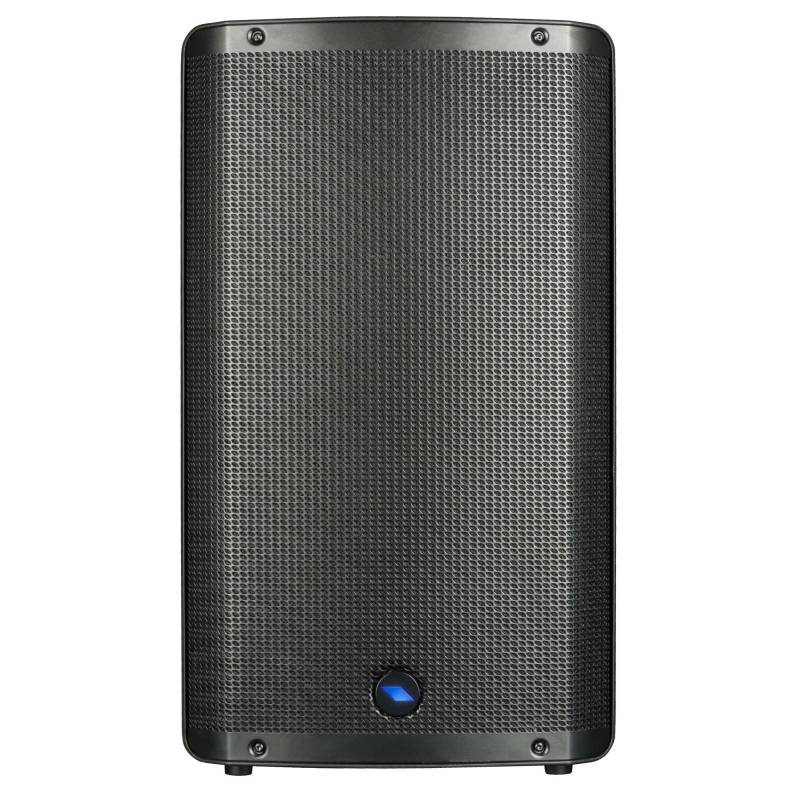

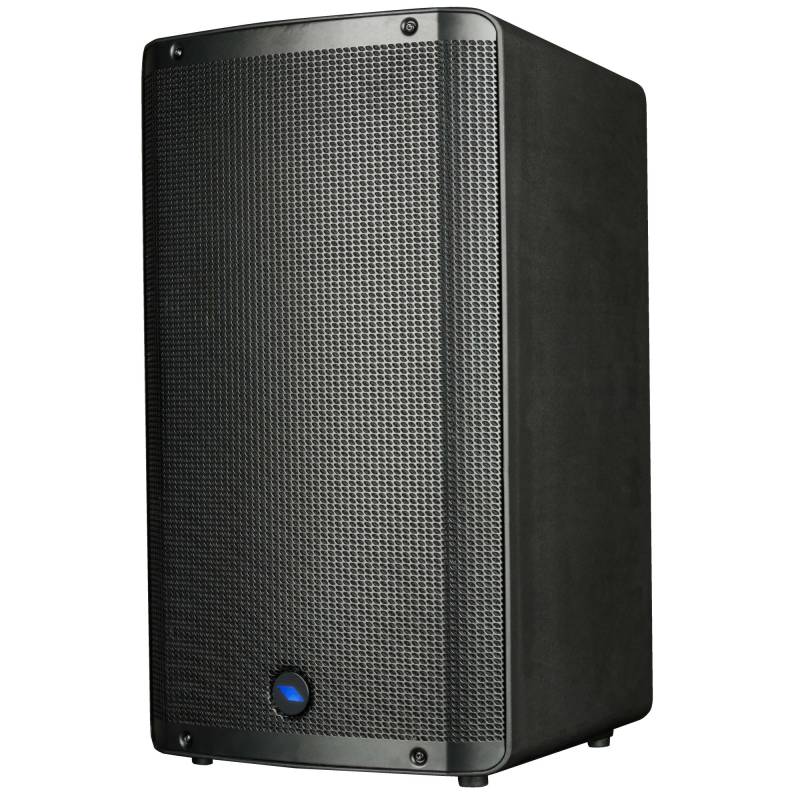

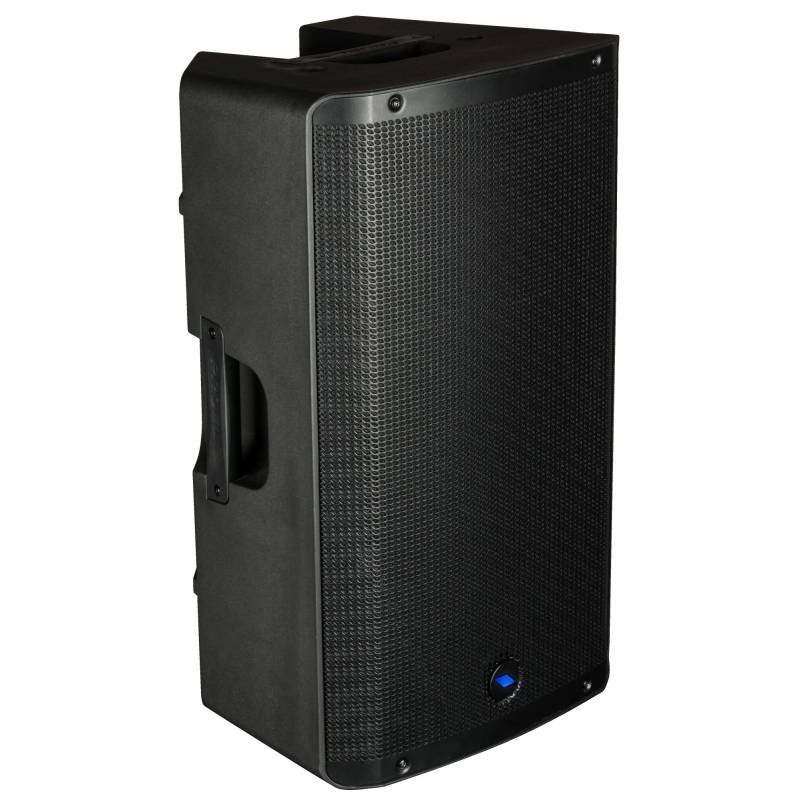

Hi Performance Active Speaker DIVA12EVO
Description
| 2-way Active loudspeaker system. - 1.75” compression driver. - 90° x 60° horn. - 12” woofer with 2.5” VC. - 2000 W peak Class D amplifier with SMPS. - DSP with FIR filters and 5 DSP presets. - 3 Ch mixer with Stereo Bluetooth - SPL MAX: 129 dB. - Frequency range: 50 Hz - 20 kHz - Bluetooth APP control |
- Model: DIVA12EVO
- Weight: 16.92
- EAN: 8032496929420
- This product has a minimum quantity of 1
DIVA12EVO and DIVA15EVO are active speaker systems with digital processing, featuring multiple inputs and versatile BLUETOOTH connectivity. Housed in lightweight ultra-durable polypropylene cabinets with ergonomic handles, they combine selected transducers driven by a 2000W CLASS D amplifier with high headroom and sophisticated dynamic control for maximum output power without distortion.
The dedicated High frequency device is a 1” compression driver with 1.75” voice coil in a neodymium magnet while the Low frequency device is a high power woofer with a 2.5” voice coil in a ventilated ferrite magnet.
The pre-amp section includes advanced processing with high-performance DSP engine and linear phase FIR filters for a very smooth response and high-definition sound.

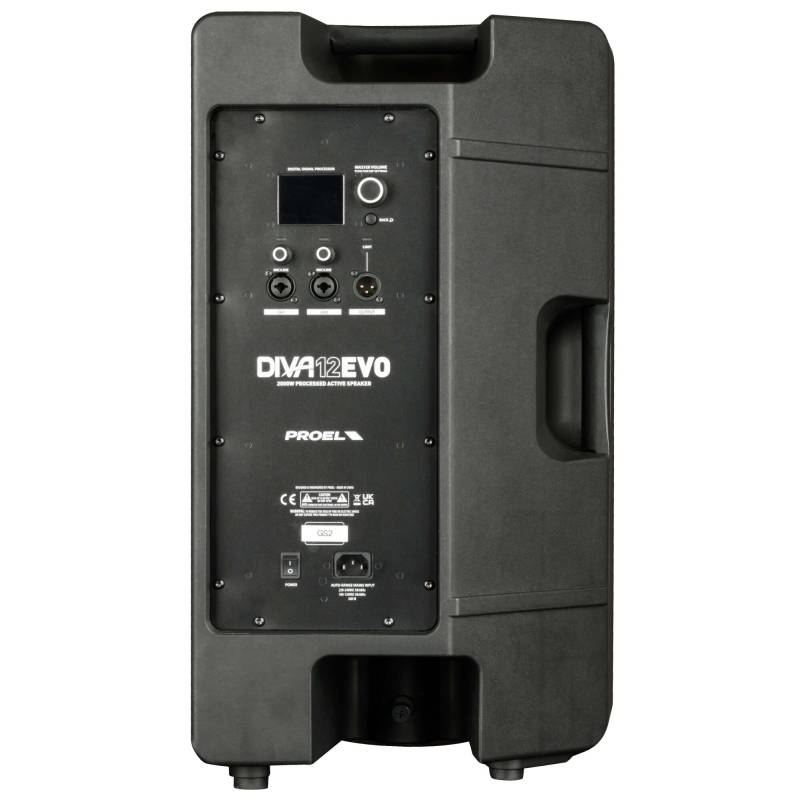

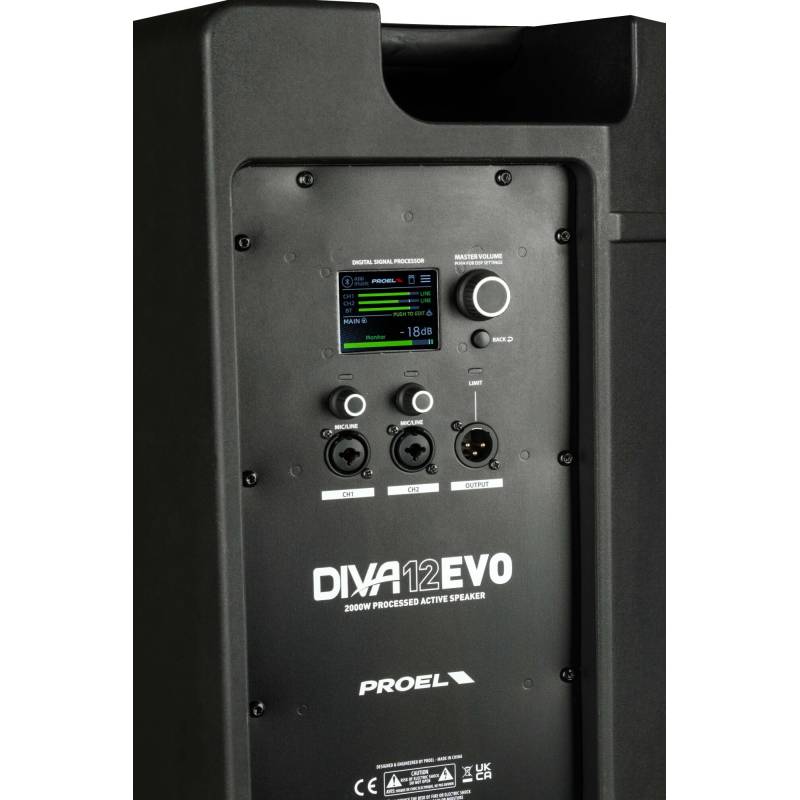

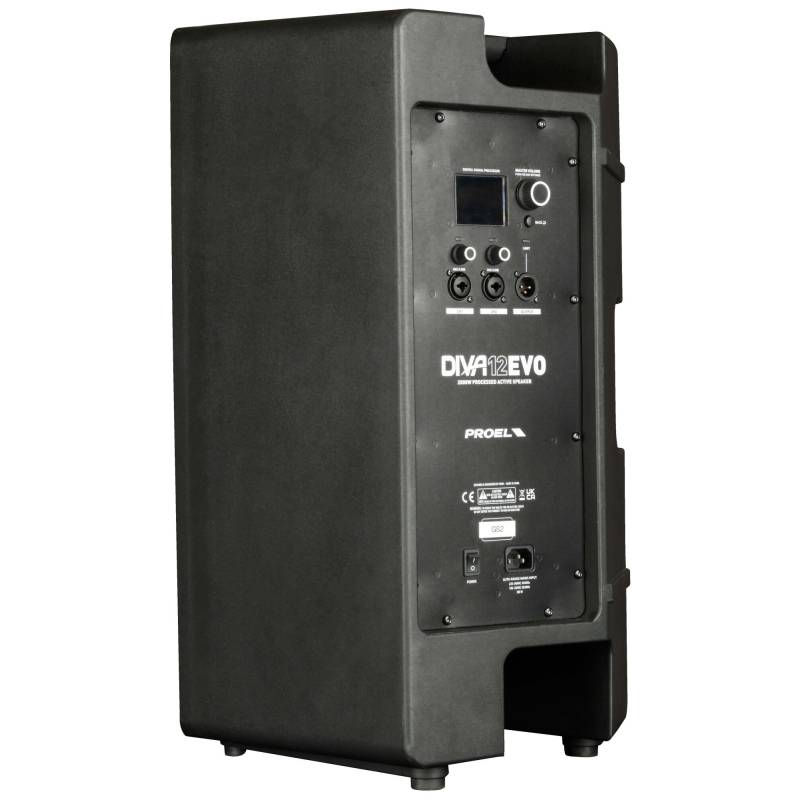

A user interface with color LCD display and single-knob control allows quick selection and viewing of the 4 available Mode presets: Live, Music, DJ, Monitor in 3 available different Location presets: Pole, Floor, Bracket. Thanks to the integrated channel mixer with two LINE/MIC/GTR inputs, EQ for Treble and Bass, parametric EQ with LINE (flat) MIC (speech) and CUSTOM presets,
DIVA12EVO and DIVA15EVO can be used in a variety of applications without external equipment. The BLUETOOTH interface allows you to control the internal mixer via iOS and Android app, and at the same time, play audio in mono streaming with a single speaker or in stereo streaming using a second speaker with the STEREO LINK (TWS) function.
| DIVA12EVO | DIVA15EVO | DIVASUB18EVO | |
| System type | 2-way vented enclosure | Vented enclosure subwoofer | |
| High Frequency Device | 1’’ NEO compression driver, 1.75" voice coil, titanium diaphragm | - | |
| Low Frequency Device | 12" woofer with 2,5" VC | 15" woofer with 2.5" VC | 18'' woofer with 4" VC |
| Angular Coverage | 90° H x 60° V | Omnidirectional (Cardioid with 2 unit) | |
| Total Peak Power | 2000 W | 2000 W | |
| HF Amplifier Continuous Power | 500 W Class D | - | |
| LF Amplifier Continuous Power | 500 W Class D | 1000 W Class D | |
| Power Supply | SMPS | ||
| System Processing | DSP | ||
| Frequency Response | 50 Hz - 20 kHz | 45 Hz - 20 kHz | 30 Hz - 110 Hz |
| Max SPL | 129 dB | 130 dB | 134 dB |
| Inputs | 2 x COMBO | 2 x COMBO | |
| Inputs sensitivity | LINE, GTR, MIC | LINE | |
| Outputs | 1 x XLR-M | 2 x XLR-M (Thru or HPF) | |
| Controls | CH1/2 LEVEL, MASTER VOLUME & DSP, BACK, COLOR LCD | MASTER VOLUME & DSP, BACK, COLOR LCD | |
| Bluetooth | Version 5.0, Audio Streaming, STEREO LINK (TWS) | - | |
| BLE control App | iOS - Android | ||
| Power Supply | 100-120 V~ or 220-240 V~ at 50/60 Hz Auto-Range | ||
| Rated Consumption* | 300 W | ||
| GENERAL SPECIFICATIONS | |||

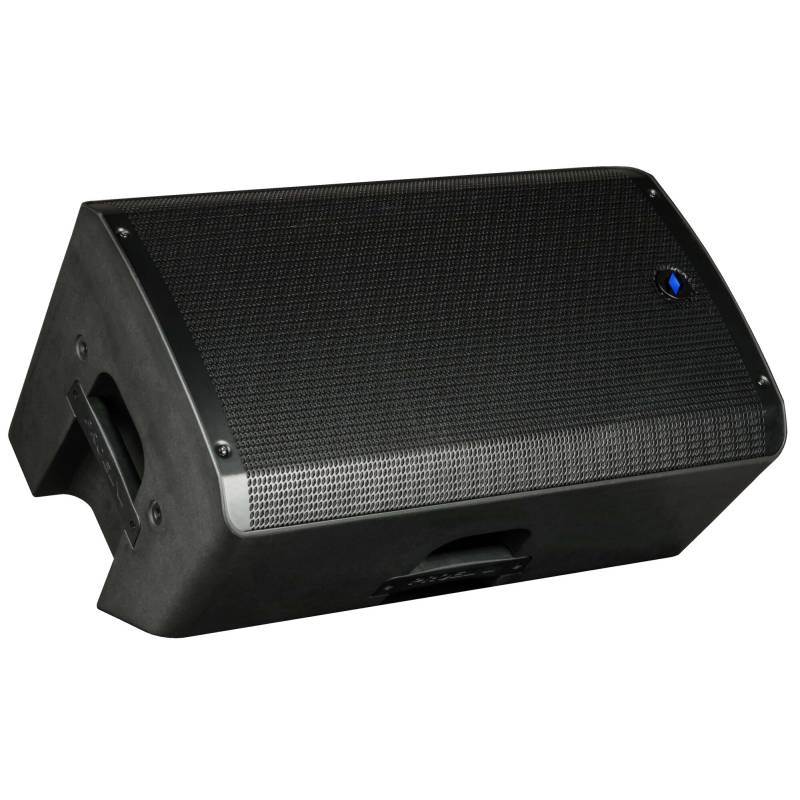

| Floor Monitor Angle | 45° | - | |
| Flying System | 4 x M10 - top/bottom | - | |
| Cabinet Material | Polypropylene, metal grille | Plywood, black anti-scratch paint, metal grille | |
| Handles | 1 x top, 1 x side | 2 x side | |
| Mounting Pole | 1 x bottom | 1 x top (M20) | |
| Wheels | - | - | 4 x 75 mm wheels |
| Dimensions (W x H x D) | 360 x 622 x 350 mm | 420 x 705 x 384 mm | 510x650x650 mm (without
wheels) 510x650x752 mm (with wheels) |
| Weight | 16.2 kg (35.7 lb) | 19.0 kg (41.9 lb) | 38.0 kg (83.77 lb) |
