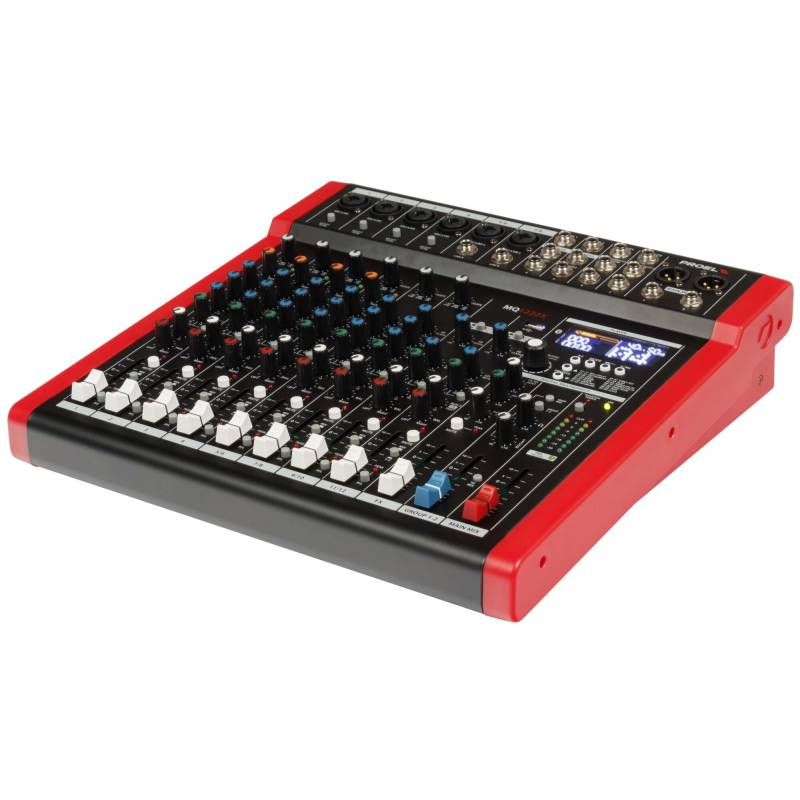

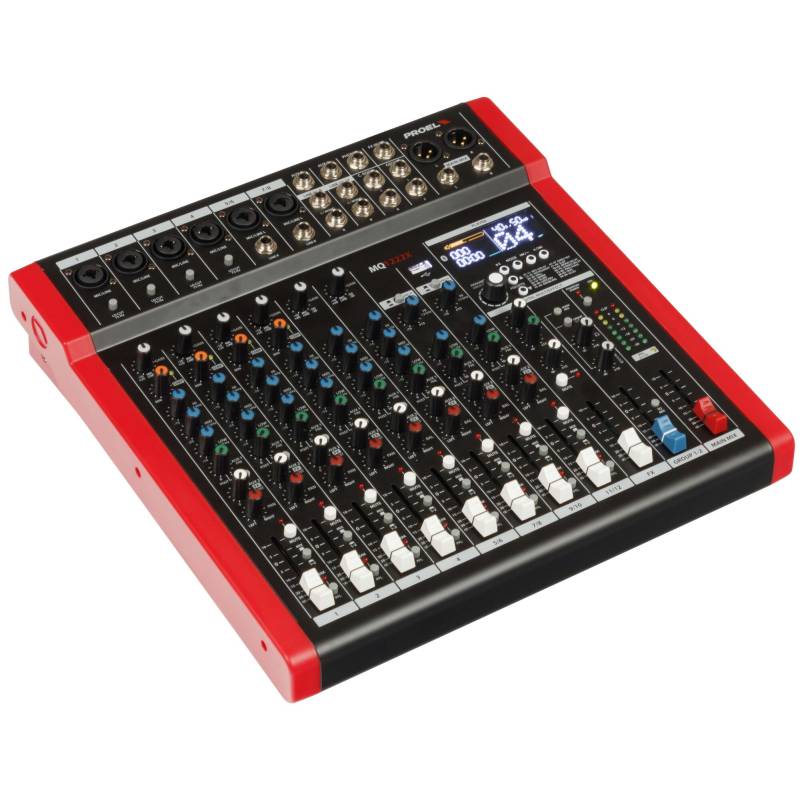

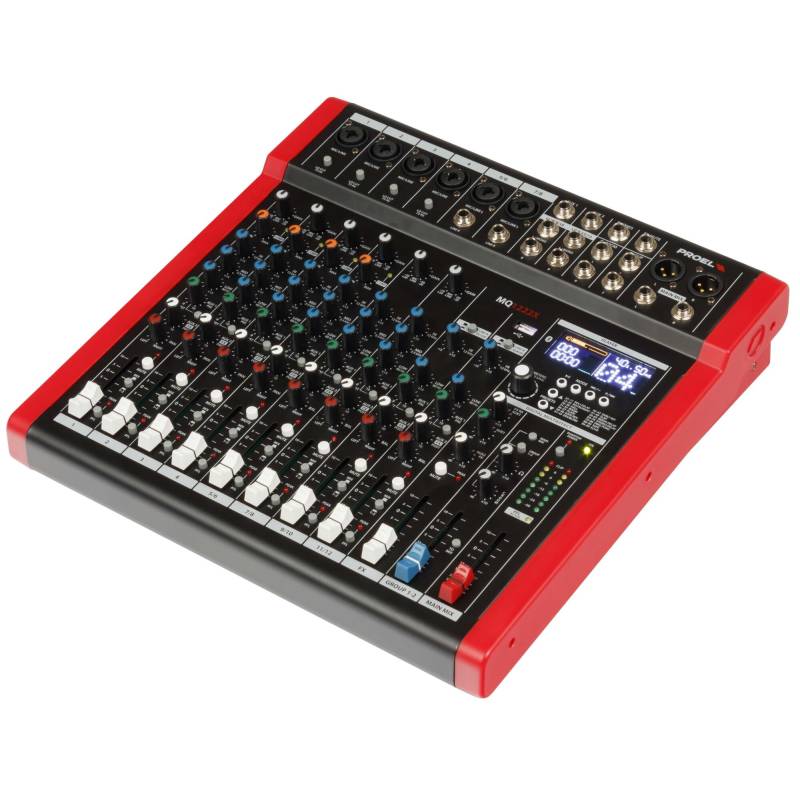

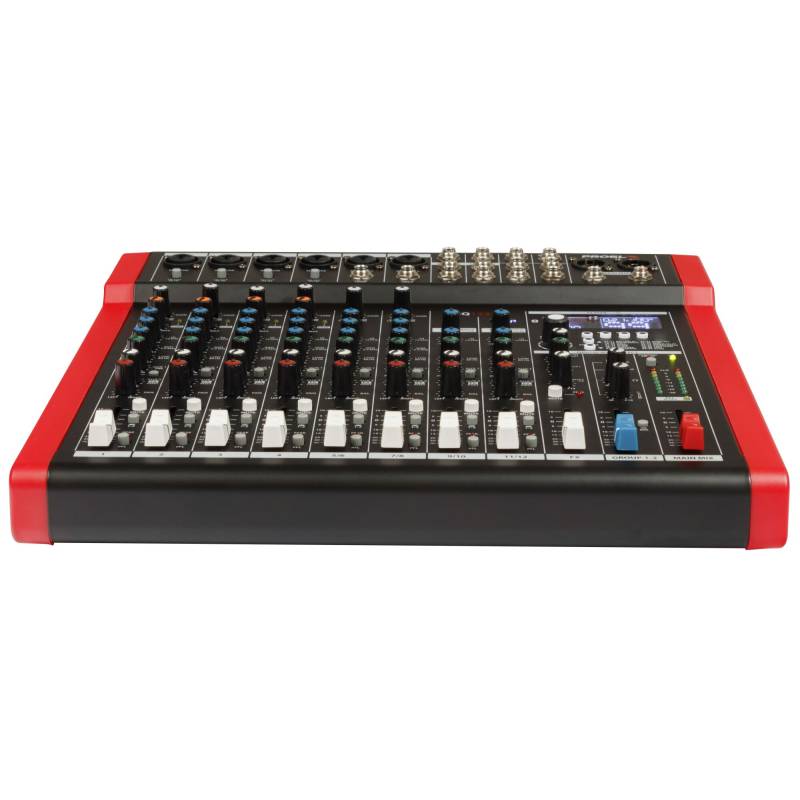

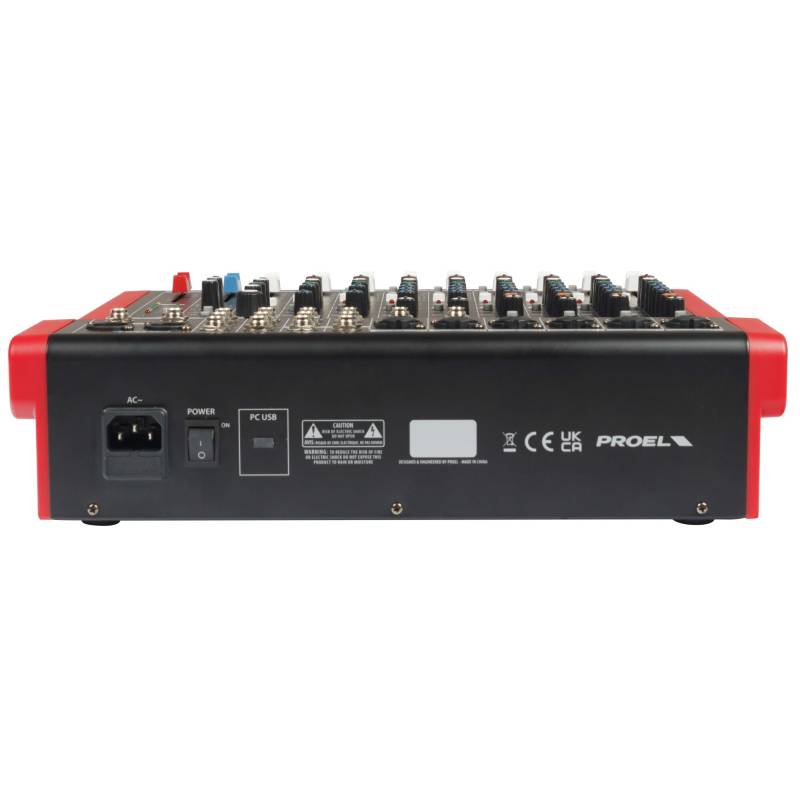

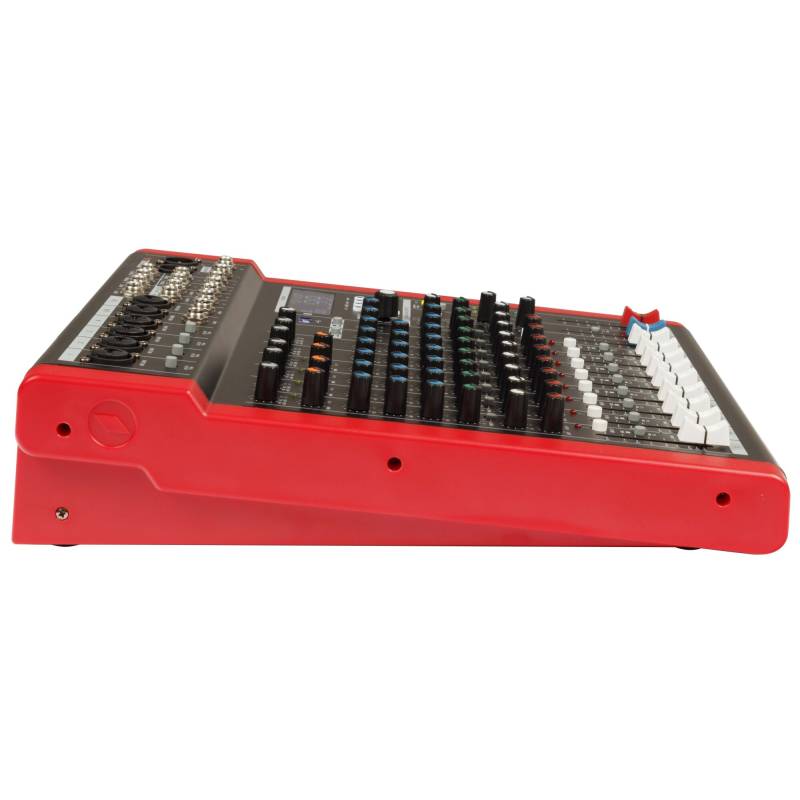

MQ1222X
Description
12-input 4-bus mixer with effect and USB. - 4 MONO MIC/LINE IN, 2 ST MIC/LINE IN and 2 ST LINE IN. - 6 low-noise MIC preamp. - 4 COMPRESSORS. - AUX send and LO-CUT. - 24bit FX DSP. - Bluetooth interface. - USB player. - 2x2 USB Interface. - Balanced MAIN OUT with XLR and ¼” JACK. - Applications: live, home and multimedia
- Model: MQ1222X
- Weight: 7.00Kg
- EAN: 8032496928713
- This product has a minimum quantity of 1
Compact Design. Professional Performance
The MQ Series from PROEL has been crafted to deliver high input density, professional-grade features, and exceptional audio quality in an ultra-compact, elegantly designed format — all at a remarkably competitive price. Engineered with Italian precision by the PROEL R&D team, MQ mixers represent the ideal choice for musicians, performers, and sound engineers seeking reliability, versatility, and premium performance in any sound reinforcement setup.
The Next Generation: MQ X
Taking the MQ concept to the next level, the new MQ X models introduce advanced digital processing and seamless connectivity.

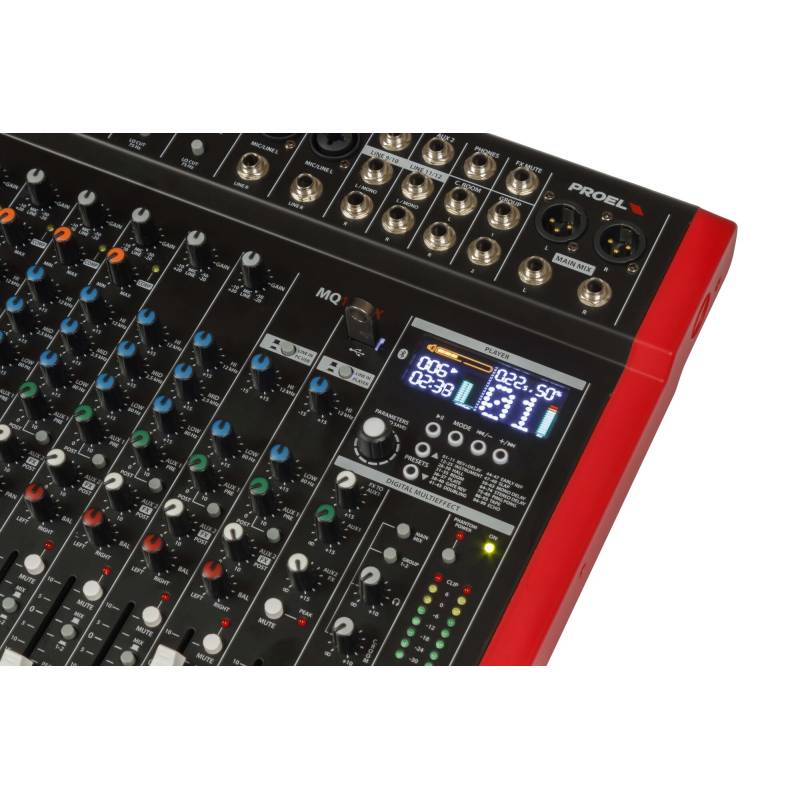

A high-definition 24-bit DSP offers 99 studio-quality effects with adjustable parameters, easily managed through an intuitive LED display.
The integrated MP3 module allows flexible media playback via Bluetooth, USB KEY (USB-A), or PC connection (USB-C) — while the USB audio interface lets you record your mix directly to your computer with ease.

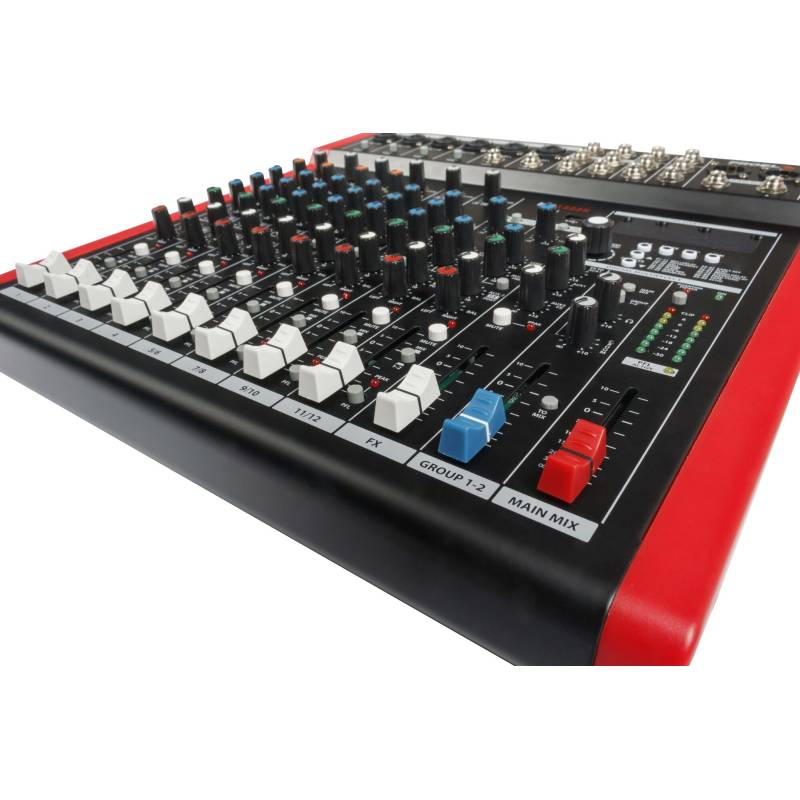

The MQ1222X provides 12 total inputs, including 6 high-quality mic preamps that ensure pristine, transparent sound. Each mono channel is equipped with one-knob intelligent compression for smooth, natural dynamics control. With 2 AUX sends, a stereo group bus, and 45 mm smooth-response faders, the MQ1222X delivers precise control and flexibility for a wide range of live sound and installation applications.
Built to Perform
Housed in ultra-rugged enclosures, MQ X mixers are engineered for long-term durability and stage-ready reliability. For added convenience, optional padded carrying bags and 19” rack-mounting kits are available — making the MQ Series a perfect companion both on the road and in fixed installations.
| MONO INPUT CHANNEL | |||
| Mic Input | sensitivity | from -10 to -50 dB | Balanced XLR-F |
| impedance | 3 Kohm | ||
| Line Input | sensitivity | from +20 to -20 dB | Balanced JACK |
| impedance | 30 Kohm | ||
| Lo cut | 75Hz, 18dB/oct. | ||
| EQ | HIGH (shelving) | ±15 dB @ 12 KHz | |
| MID (peaking) | ±15 dB @ 2.5 KHz | ||
| LOW (shelving) | ±15 dB @ 80 Hz | ||
| Compressor | Fet | CH 1-4, 1-knob | |
| STEREO INPUT CHANNEL | |||
| Mic Input | sensitivity | from -10 to -50 dB | Balanced XLR-F |
| impedance | 3 Kohm | ||
| Line Input | sensitivity | from +20 to -20 dB | Balanced JACK |
| impedance | 30 Kohm | ||
| Line Input | sensitivity | -10 dBv | Balanced JACK |
| impedance | 10 Kohm | ||
| EQ | HIGH (shelving) | ±15 dB @ 12 KHz | |
| MID (peaking) | ±15 dB @ 2.5 KHz | ||
| LOW (shelving) | ±15 dB @ 80 Hz | ||
| MASTER SECTION | |||
| MAIN MIX | nom. out level | +4 dBu | Balanced JACK and XLR-M |
| C. ROOM output | nom. out level | 0 dBu | Unbalanced JACK |
| GROUP output | nom. out level | +4 dBu | Balanced JACK |
| FX/AUX output | nom. out level | 0 dBu | Unbalanced JACK |
| HEADPHONES | min. impedance | 32 ohm | |
| max. out level | (2x) 193 mW | Stereo JACK | |
| DIGITAL MULTIEFFECT /PLAYER | |||
| Effects | 99 presets | ||
| FX DSP resolution | 24 bit | ||
| Bluetooth | Version 5.0, Audio Streaming | ||
| PC USB interface | USB 2.0 / 3.0 | Type C | |
| USB player | USB 2.0 / 3.0 | Type C | |
| A/D and D/A converters | 24 bit 48KHz | ||
| Controls | LCD, DIAL, PEAK LED, MUTE switch, MUTE footswitch | ||
| GENERAL SPECIFICATIONS | |||
| Maximum level | all outputs | +22 dBu | |
| Crosstalk | meas. at 1 KHz | > 82 dBu | |
| HUM & Noise | unweighted | < -93 dBu | |
| THD + Noise | at +4dB, 1kHz | < 0,008 % | |
| Dimensions (WxHxD) | 352 x 352 x 90 mm | ||
| Weight | 3.90 kg | ||
| POWER REQUIREMENTS | |||
| Mains Supply Voltage | 110-240 VAC (±10%) 50 / 60
Hz available with Europe mains cord (Shucko plug), US mains cord (NEMA 5-15P plug), UK mains cord (BS1363 plug) | ||
| Consumption | 50 W |
