WM900M
Description
UHF diversity PLL professional wireless microphone. It is equipped with autoscan and IR sync. 50 meters range. ABS case. Available range: 512-568 _ 606-614 _ 614-670 MHz. Hand-held transmitter with cardioid capsule
- Model: WM900M
- Weight: 2.40
- EAN: 8032496927754
- This product has a minimum quantity of 1
The new EIKON WM900 is a professional UHF TRUE DIVERSITY series, designed for musicians, presenters, and entertainment professionals, but with a focus on budget.
The design was entirely developed by EIKON to ensure maximum reliability and durability for a long life.
The receiver and handheld transmitter are made entirely of metal, while the bodypack transmitter is made of high-density PP, combining strength and maximum lightness.

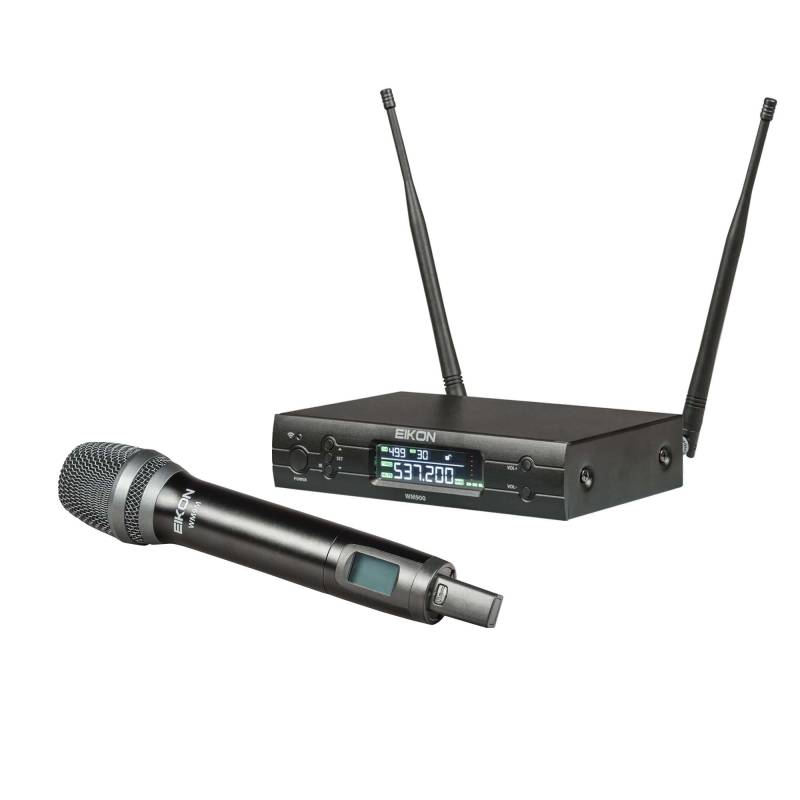

The WM900 wireless microphone system offers 5 different combinations with a single-channel receiver, dual-channel receiver, handheld transmitter, and bodypack transmitter with headset and lavalier microphone.
The system is available in 3 different preset frequency bands that can also be used simultaneously: 512 - 568; 606 - 614; 614 - 670 MHz.

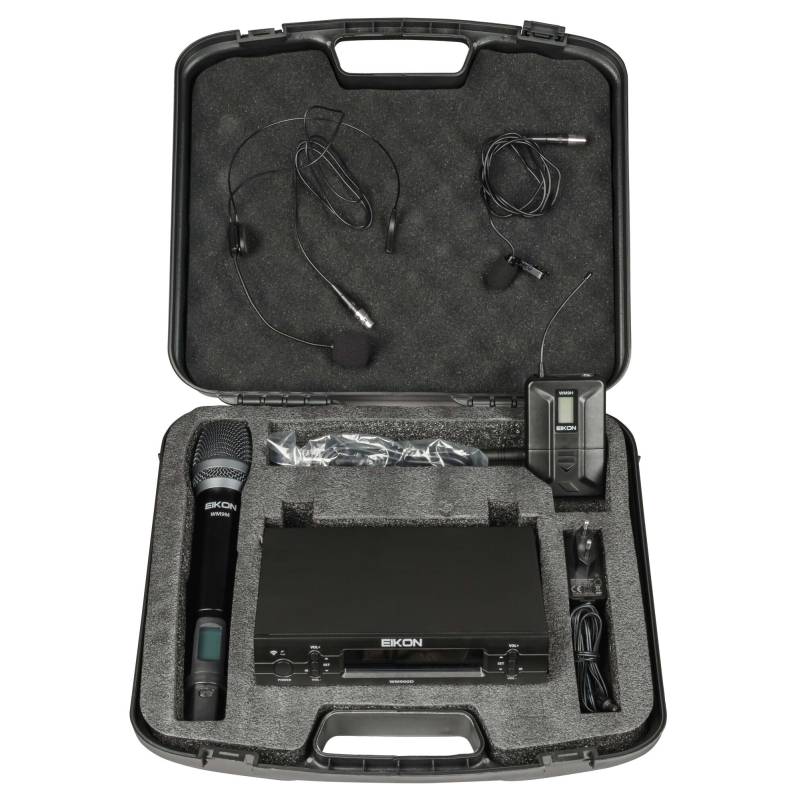

Each configuration includes a sturdy ABS carrying case.

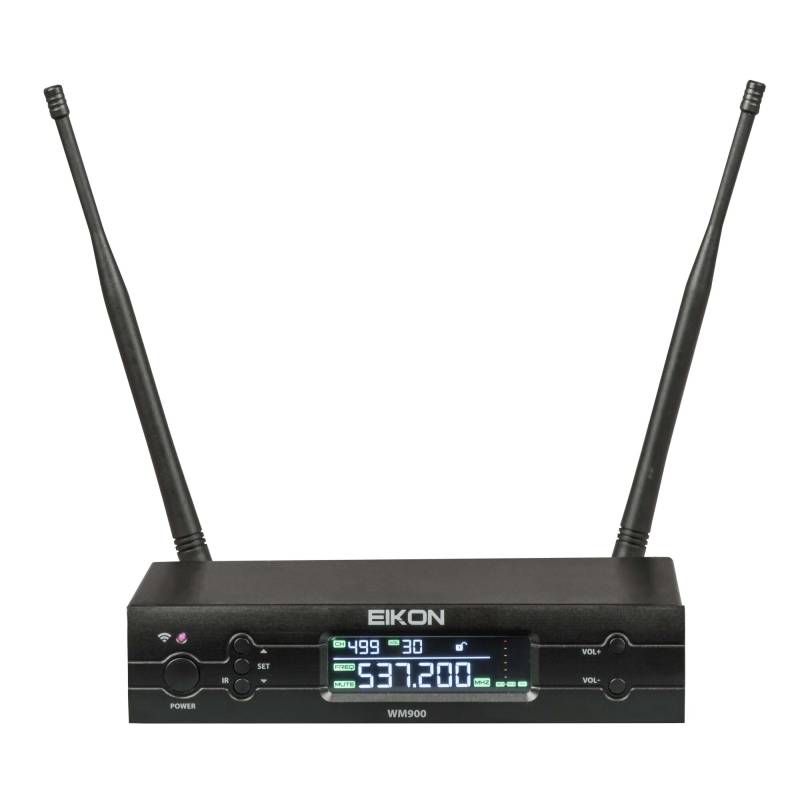

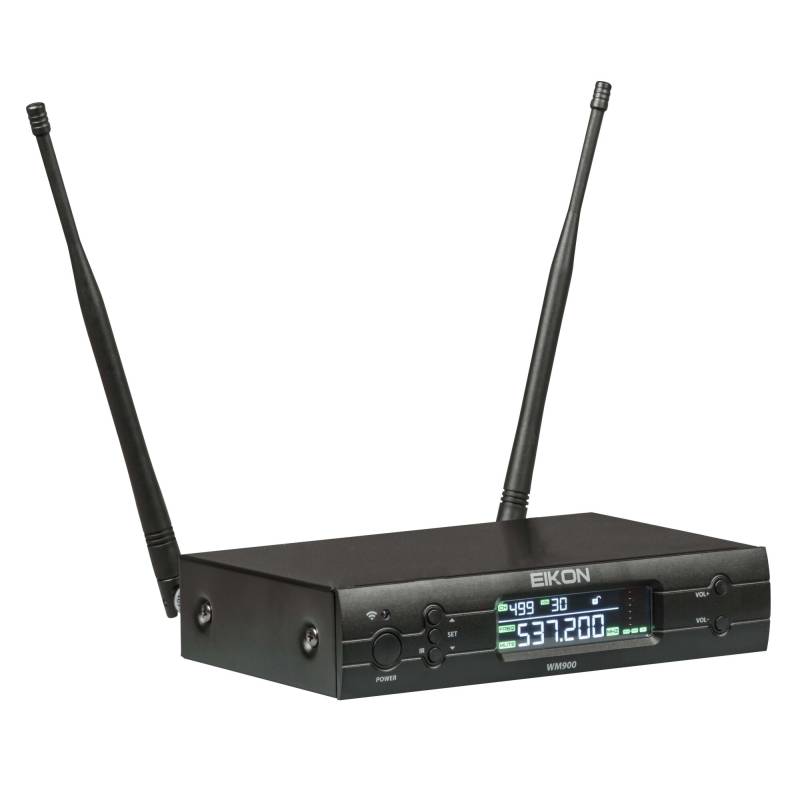

- True Diversity Receiver
- PLL Tuning
- 50 meters range in open space
- BNC antenna OUTPUTS

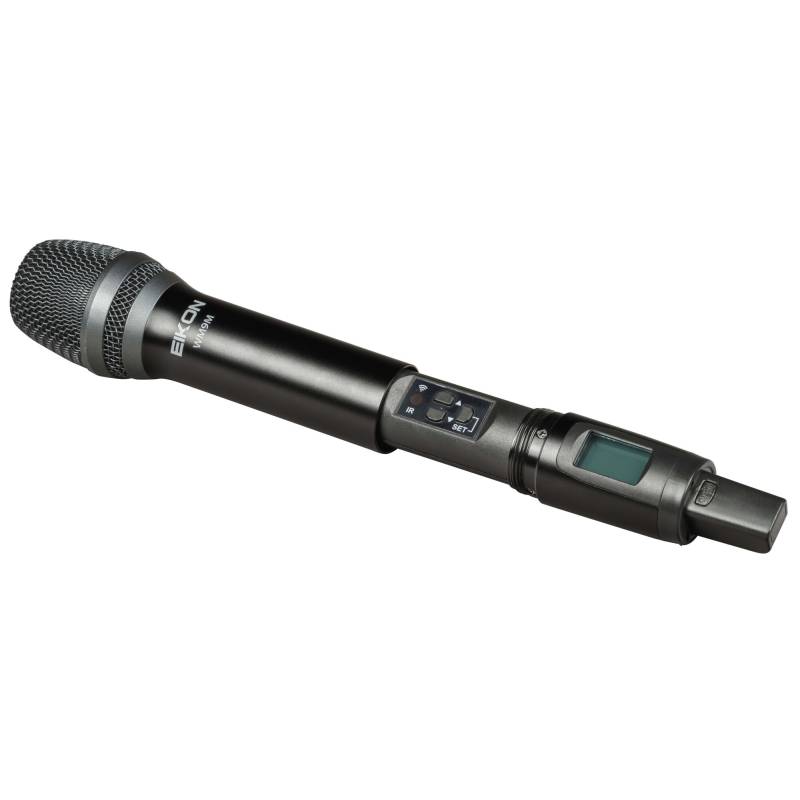

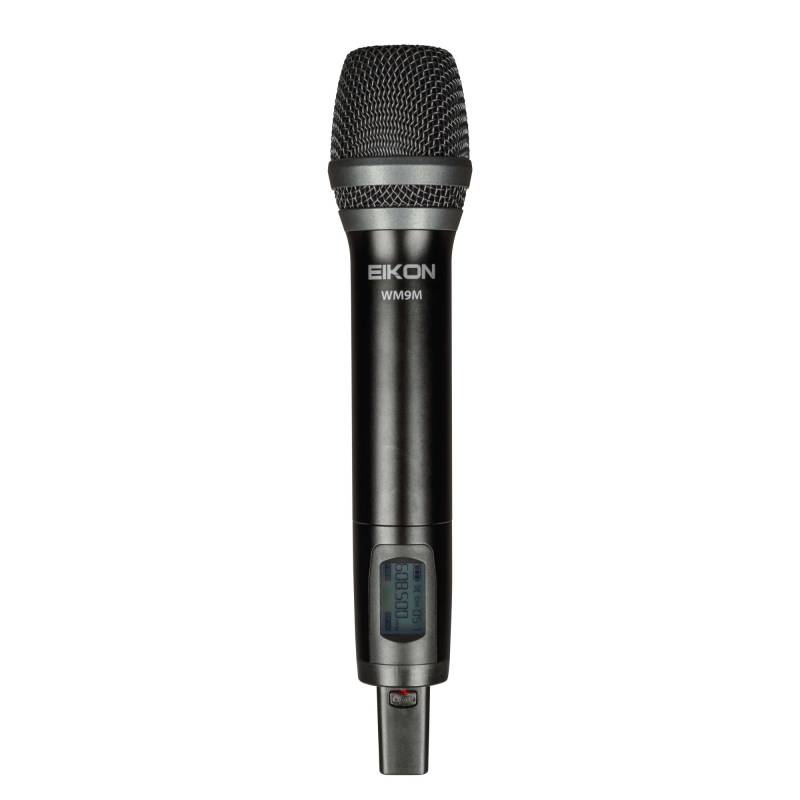

- Cardioid handheld microphone transmitter
- Bodypack transmitter with 3 pole mini-XLR plug
- headset and lavalier mics are included
- Sync IR Function
- Auto Scan Function

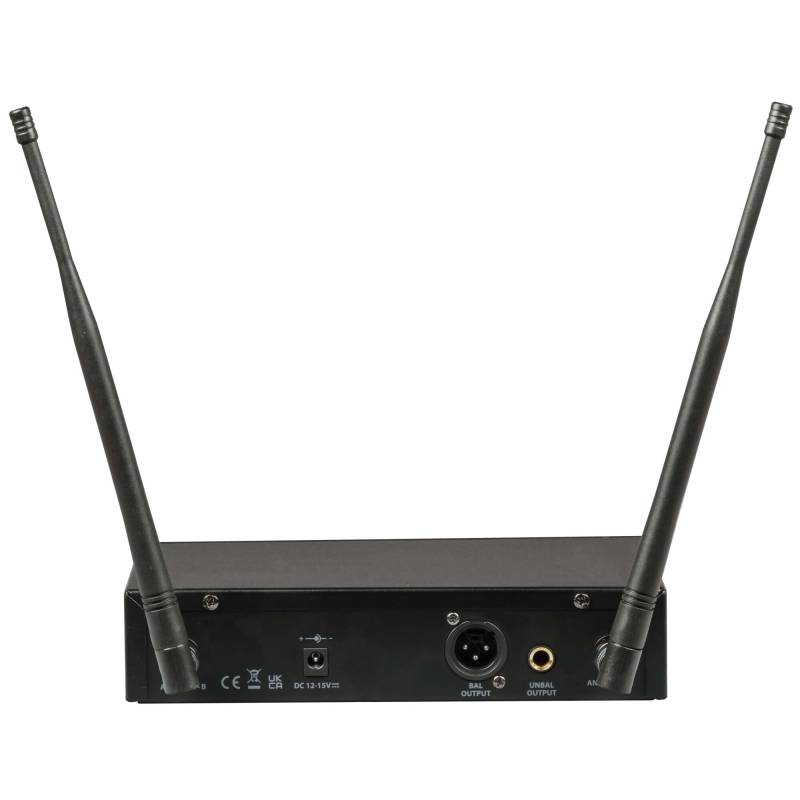

- Balanced and unbalanced OUTPUTS
- ABS carrying case
WM900 / WM900D– Ricevitore UHF PLL | |
RF Channels | Depending on frequency band and country applicable regulations |
RF Frequency Band | UHF A: 512 - 568 MHz |
| UHF B: 606 - 614 MHz |
| UHF C: 614 - 670 MHz |
RF Receiver Type | PLL UHF Synthesized |
RF Modulation type | FM |
RF Sensitivity | -90 dBm / 12 dB SINAD |
THD Distortion | < 1 % |
S/N Ratio | > 90 dB |
Dynamic Ratio | > 100 dB |
Frequency Response | 60 Hz – 17000 Hz (±3 dB) |
XLR balanced nominal audio output | -10 dBu (245 mVrms) |
JACK unbalanced nominal audio output | 0 dBu (775 mVrms) |
Power Supply | 12 - 15V DC 500 mA |
Dimensions | H 43 x L 213 x W 133 mm |
Weight | 750 g |
WM9M – Trasmettitore manuale UHF PLL | |
RF Channels | Depending on frequency band and country applicable regulations |
RF Frequency Band | UHF A: 512 - 568 MHz |
| UHF B: 606 - 614 MHz |
| UHF C: 614 - 670 MHz |
RF Power | max 10 mW |
Modulation method | FM |
RF Max deviation | ± 75 KHz |
RF Frequency Stability | ± 0.002% (-10 ÷ +50 °c) |
Spurious Emission | under limits EN 300422 |
Frequency Response | 50 Hz – 17000 Hz (±3 dB) |
Microphone type | Dynamic Cardioid |
Power Supply | 2x1.5V AA alkaline battery |
Dimensions (DxH) | 49 x 257 mm |
Weight | 350 g |
WM9H – Trasmettitore Bodypack UHF PLL | |
RF Channels | Depending on frequency band and country applicable regulations |
RF Frequency Band | UHF A: 512 - 568 MHz |
| UHF B: 606 - 614 MHz |
| UHF C: 614 - 670 MHz |
RF Power | max 10 mW |
Modulation method | FM |
RF Max deviation | ± 75 KHz |
RF Frequency Stability | ± 0.002% (-10 ÷ +50 °c) |
Spurious Emission | under limits EN 300422 |
Frequency Response | 50 Hz – 16000 Hz (±3 dB) |
Microphone included | Headset and Lavalier Black color |
Input connector | Mini Xlr 3P |
Power Supply | 2x1.5V AA alkaline battery |
Dimensions (HxWxD) | 98 x 63 x 24 mm |
Weight | 130 g |
