LTXSUB10P
Description
Compact passive sub-woofer for installation. - 10” woofer with 2” VC for a deep and extended response. - 150 W continuous rated power. - Impedance 8 ohm. - SPL 1w/1m 95 dB. - Frequency response 45 Hz - 150 Hz
- Model: LTXSUB10P
- Weight: 22.00Kg
- EAN: 8032496926917
- This product has a minimum quantity of 1
The LTXSUB10P is a low profile, very compact sub-woofer designed to be used in fixed multi-way installations requiring an extended low frequency response. Despite the small size, LTXSUB10P can produce a high output level and it is the ideal complement to LTX series.

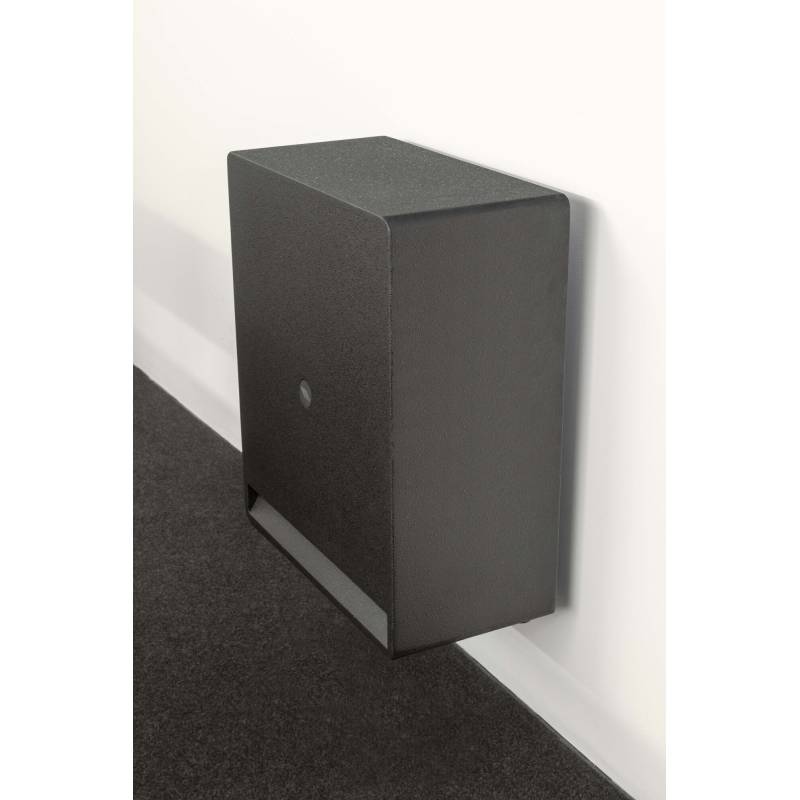

For the construction of the cabinet we have used MDF, a very durable material, finished with strong, anti-scratch paint that provides proper protection for years of service. The supplied brackets allow to install the speaker on walls or ceiling, offering the possibility to obtain a more uniform coverage of the audience.
The high-excursion woofer, together with carefully tuned band-pass cabinet, offers an extended response with deep and tight basses.
| System type | Band-pass enclosure |
| Low Frequency Device | 10” woofer with 2” voice coil |
| Power Rating Continuous | 150 W |
| Power Rating Peak | 300 W |
| Impedance | 8 ohm |
| Frequency Response | 45 - 150 Hz |
| SPL (1w / 1m) | 95 dB |
| Connectors | Terminal blocks |
| Mounting System | 2 x wall/ceiling mounting brackets |
| Construction | MDF |
| Cabinet Colour | Black |
| Dimensions (W x H x D) | 480 x 570 x 253 mm |
| Weight | 20.0 kg / 44.1 lbs |
