PA ATMP240Z6XL
Description
The ATMP240Z6XL is a professional mixer amplifier capable of delivering up to 240W across 6 zones. It features a multimedia Media Player module equipped with a USB input, Bluetooth connection, and WiFi interface for high-quality music streaming from smart devices, NAS, or streaming services such as Spotify, Tidal, Deezer, Qobuz, Amazon Music, and more, via the 4Stream app, Airplay, or other DLNA apps.
By pairing up to 4 RM6 microphone bases with the ATMP240Z6XL, it is possible to create a zoned system with calls directed to a single zone, zone groups, or all zones. Additionally, by utilizing the zone-level line outputs, it can be combined with booster amplifiers to create a 6-zone system with even greater power capacity.
- Model: PA ATMP240Z6XL
- Weight: 12.80Kg
- EAN: 8032496925927
- This product has a minimum quantity of 1
ATMP240ZXL is a professional amplifier mixer capable
of delivering up to 240W on 6 zones. It features a Media Player equipped with
USB input, Bluetooth connection and WiFi interface for streaming high quality
music from smart devices, from a NAS or from stream services such as Spotify,
Tidal, Deezer, Qobuz, Amazon Music and others via the 4Stream APP, Airplay or
other DLNA apps.
This new amplifier mixer has been designed to meet the
needs of a constantly evolving market in the most flexible and professional
way, by responding to precise operational criteria, and it is built and tested
to ensure absolute reliability for the user, even in continuous operational
operation.
By combining up to four RM6 paging microphone bases with the ATMP240ZXL, it is possible to create a zone system with call on a single zone, on groups of zones or on all zones. Moreover, by using the zone outputs at line level it is possible to combine it with booster amplifiers to create a 6-zone system of even greater power.
MAIN FUNCTION
·
Zone paging function through dedicated PA RM6
microphone base (optional).
·
Overload and short circuit protection for each
speaker outputs.
·
LED power indicator.
·
LED audio level indicator.
·
Master level control.
·
Separated Level Controls for 1÷6 zones and AUX inputs.
·
Bass and Treble tone adjustment.
·

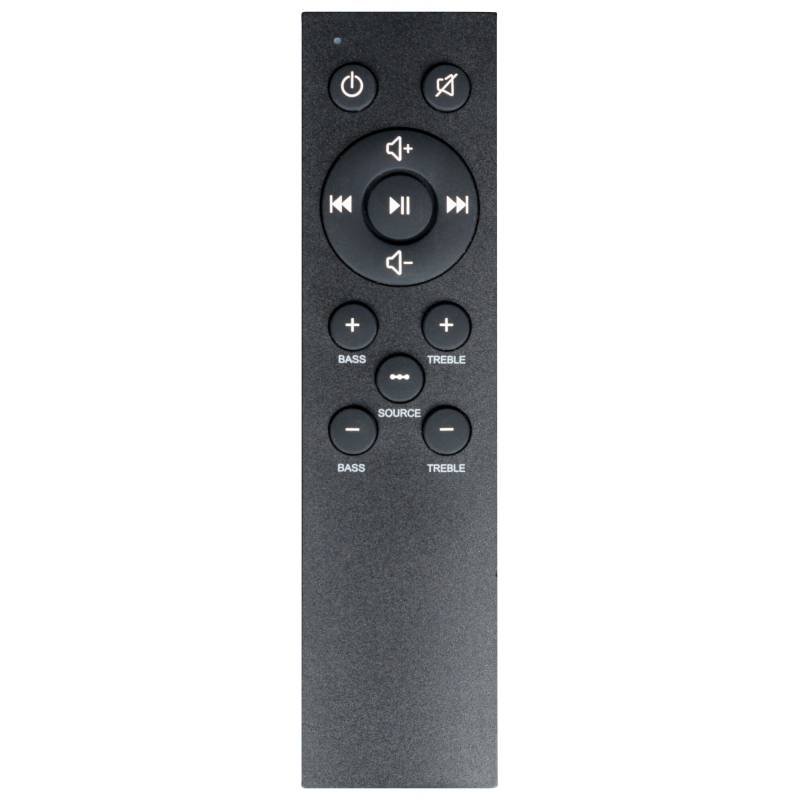

Media
Player equipped with remote control.
·

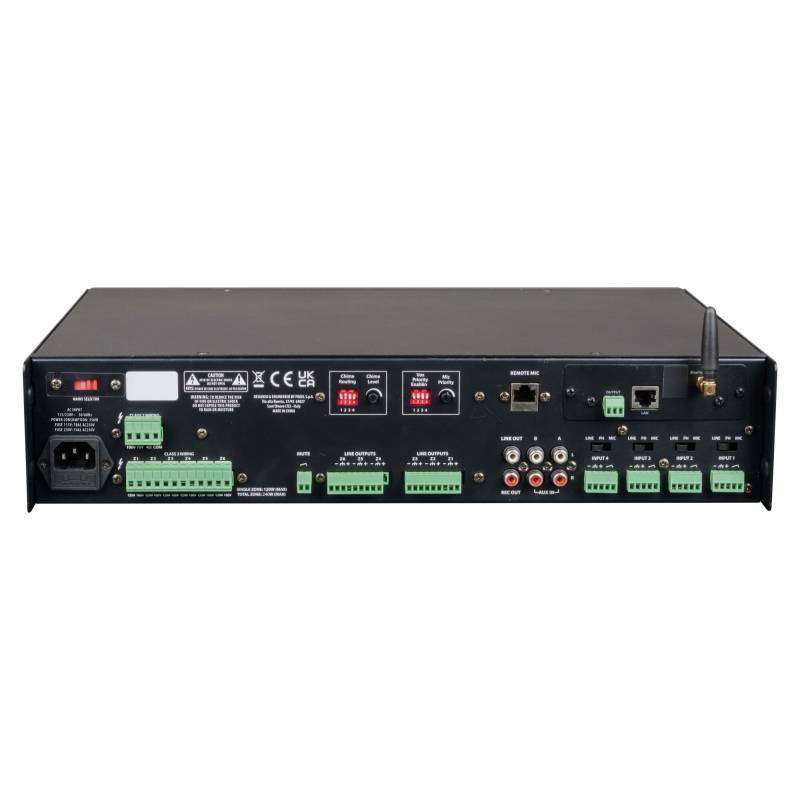

N° 4 MIC / MIC Phantom 48V / LINE inputs
balanced on Euroblock terminals.
·
N° 2 AUX inputs switchable by front selector.
·
Inputs 1 ÷ 4 with independent priority function
(VOX / Contact) on the other inputs selectable by dipswitch 1 ÷ 4.
·
Main power output 4Ω / 70 / 100V on Euroblock
terminal.
·
N° 6 zone outputs at 100V on Euroblock terminal.
·
N° 6 zone outputs at line level balanced on
Euroblock terminal.
·
Independent CHIME function for each input
(routing).
·
REC OUT on RCA.
·
230 / 115 V~ 50 / 60 Hz power supply via voltage
selector.
·
19" 2U rack adapters included.
| Model: | ATMP240Z6XL | Connectors |
| Total Output Power RMS | 240 W | |
| Loudspeakers Outputs | 100 V / 70 V /4 Ω | 5.08 mm EUROBLOCK 4-position |
| Zone Outputs Max Power | 120 W | |
| Zone Outputs Z1÷6 | 100 V | 5.08 mm EUROBLOCK 2 -osition x6 |
| Inputs | 1x REMOTE MIC RM6 (dedicate accessory) 4x LINE/PH/MIC balanced + TALK 2x AUX IN selectable 1x EMC balanced + MUTE | RJ45 3.5mm EUROBLOCK 5-position RCA (L & R) 3.5mm EUROBLOCK 3+2-position |
| Input Sensitivity | MIC: -45 dBv / 1 kΩ balanced PH: -45 dBv / 1 kΩ balanced with phantom LINE: -6 dBv / 47 kΩ balanced AUX IN A/B: 0 dBv / 10 kΩ unbalanced EMC IN: 0 dBv / 10 kΩ unbalanced | |
| Line Outputs | MEDIA OUT unbalanced REC OUT unbalanced LINK OUT unbalanced | 3.5mm EUROBLOCK 3-position RCA RCA |
| Line Outputs Nominal Level | MEDIA OUT: 1V / 75 Ω REC OUT: 1V / 75 Ω LINK OUT: 1V / 75 Ω | |
| Controls | 1 MASTER VOLUME 1 TREBLE TONE 1 BASS TONE 4 MIC/LINE VOLUME 1 AUX A/B/MEDIA VOLUME 6 ZONE VOLUME 6 ZONE SELECTORS CHIME ROUTING AND LEVEL VOX PRIORITY 1x RECORD/PLAY MESSAGE switch 1x START/STOP MESSAGE button | 4x Dip switches 4x Dip switches 3.5mm EUROBLOCK 4 -position |
| Tone Controls | Shelving +/- 10 dB @ 10 kHz Shelving +/- 10 dB @ 100 Hz | |
| Frequency response | 80 Hz ÷ 16 KHz (-3dB) | |
| Distortion (THD) | < 0.5% (@ Pnom 1KHz) | |
| S/N Ratio | MIC: ≥70dB LINE/EMC: ≥70dB AUX: ≥80dB | |
| Operating temperature | 0 ÷ +45°C | |
| Power Supply | 115 V~ ±10% 50/60Hz (select 115V) or 230 V~ ±10% 50/60Hz (select 230V) | VDE IEC C13 |
| Power Consumption | 350 W | |
| Dimensions (WxHxD) | 433 x 89 x 352 mm – 2U rack 19” | |
| Weight | 11.2 Kg |
