FL120P

DESCRIPTION

The FL120P is a two-way passive point source loudspeaker that provides full frequency response and controlled dispersion from an easily manageable enclosure. It is designed for many kinds of foreground sound reinforcement applications requiring high quality sound, repeatable performance, and convenience of operation in an easily portable format.

The 12” low frequency neodymium driver is matched to a 1” high frequency compression driver with 1.75” aluminum voice coil, for low weight and good transient response. The custom-designed HF horn that provide wide and accurate coverage of a typical auditorium

The FL120P’s symmetrical vented enclosure allows it to adapt to multiple portable and fixed applications, such as front-of-house duties on a speaker stand, or pole mounted on an associated subwoofer or, by using the 42° wedge angle, as a powerful stage monitor.

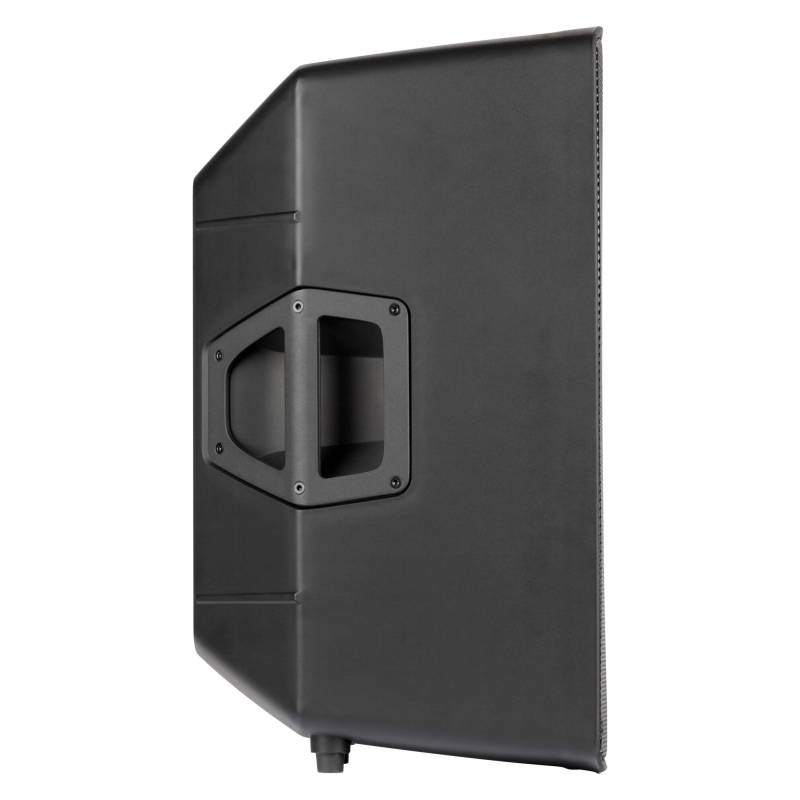

The compact and lightweight high-density PP cabinet is provided with a 35mm pole mount, three recessed aluminum handles for easy lifting and handing, and M10 rigging points to allow suspension in fixed installations using optional mounting brackets.

MOUNTING AND FIXING

The FL120P can be wall mounted in permanent installations either vertically or horizontally using the KPTLTP or KPTFL120 wall brackets

The KPTLTP wall bracket allows to install the speaker on walls and ceiling with variable tilt and swivel orientation, offering the possibility to obtain a more uniform coverage of the audience. It provides free horizontal aiming and 4 steps at 15° for vertical aiming.

The KPTFL120 c-bracket offers five steps of incremental rotational adjustment for a total of 60°, to enable the loudspeaker to be accurately aimed.
