MQ is a series of mixers created by PROEL to offer in a very compact and stylish package a high input density, a full set of features and a superior audio quality, at a very convenient price point. The MQ series includes 5 models with 6, 10, 12 and 16 inputs, able to satisfy most of the sound reinforcement applications. Carefully designed and engineered in Italy by PROEL R&D, MQ mixers are hosted in ultra-rugged cases, providing extended durability for a stage-proof use.
The smallest models of the series, MQ6 and MQ6FX, offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound. The MQ6FX, despite its small size, includes a high-quality 24-bit DSP able to provide musicians and performers with studio-grade effects.
MQ10FX, together with 3-band EQ and one-knob intelligent COMPRESSORS, offers also 100 DSP presets with a convenient LED display for the selection.
MQ12USB additional features include an USB audio I/O interface and extended mixing capability with MONITOR send, STEREO GROUP bus and 45mm control faders.
The top-of-the-line MQ16USB feature 16 inputs and 12 microphone channels together with sweep mids and one-knob intelligent COMPRESSORS on mono channels, 4 AUX sends, STEREO GROUP bus and 60mm control faders.
Optional padded carrying bags and metal brackets for 19” rack mounting are available for selected models.

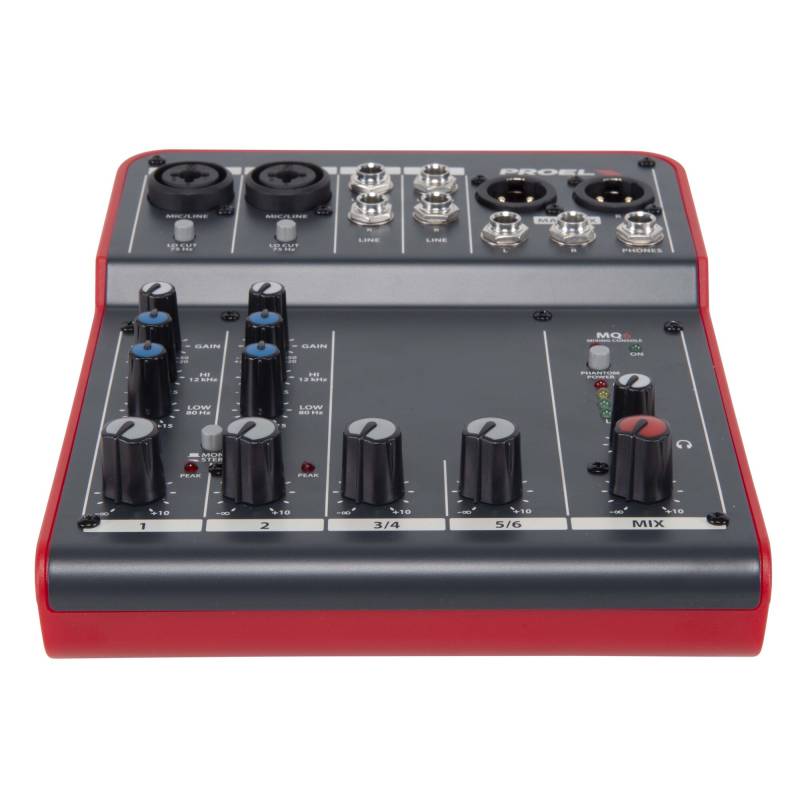

- Ultra- compact 6-input 2-bus mixer
- 4 MONO MIC/LINE inputs with 2-band EQ, LO-CUT filter and PHANTOM power
- 2 low-noise, very high-headroom microphone preamplifiers
- 2 STEREO LINE inputs
- HEADPHONES output
- Electronically balanced MAIN MIX outputs with XLR-M and ¼” JACK connectors
- Two 4-LED VU-METERS
- Stage-proof construction and ultra-rugged metal chassis
- Designed and engineered in Italy by PROEL
|MONO INPUT CHANNEL|
|Mic Input||sensitivity||from -10 to -50 dB||Balanced XLR-F|
|Line Input||sensitivity||from +20 to -20 dB||Balanced JACK|
|Lo cut||75Hz, 18dB/oct.|
|EQ||HIGH (shelving)||±15 dB @ 12KHz|
|LOW (shelving)||±15 dB @ 80Hz|
|STEREO INPUT CHANNEL|
|Line Input||sensitivity||-10 dB||Balanced JACK|
|MAIN MIX||nom. out level||+4 dBu||Balanced JACK and XLR-M|
|HEADPHONES||min. impedance||32 ohm|
|max. out level||(2x) 193 mW||Stereo JACK|
|Maximum level||all outputs||+22 dBu|
|Crosstalk||meas. at 1 KHz||> 82 dBu|
|HUM & Noise||unweighted||< -93 dBu|
|THD + Noise||at +4dB, 1kHz||< 0,008 %|
|Dimensions (WxHxD)||162 x 210 x 51 mm|
|Supply||18 VAC 1000 mA - use only supplied AC/AC ADAPTER|
|Mains Supply Voltage||110-120 VAC (±10%) 50 / 60 Hz (US plug)|
|230-240 VAC (±10%) 50 / 60 Hz (EU plug)|
|240 VAC (±10%) 50 / 60 Hz (UK plug)|
