Description

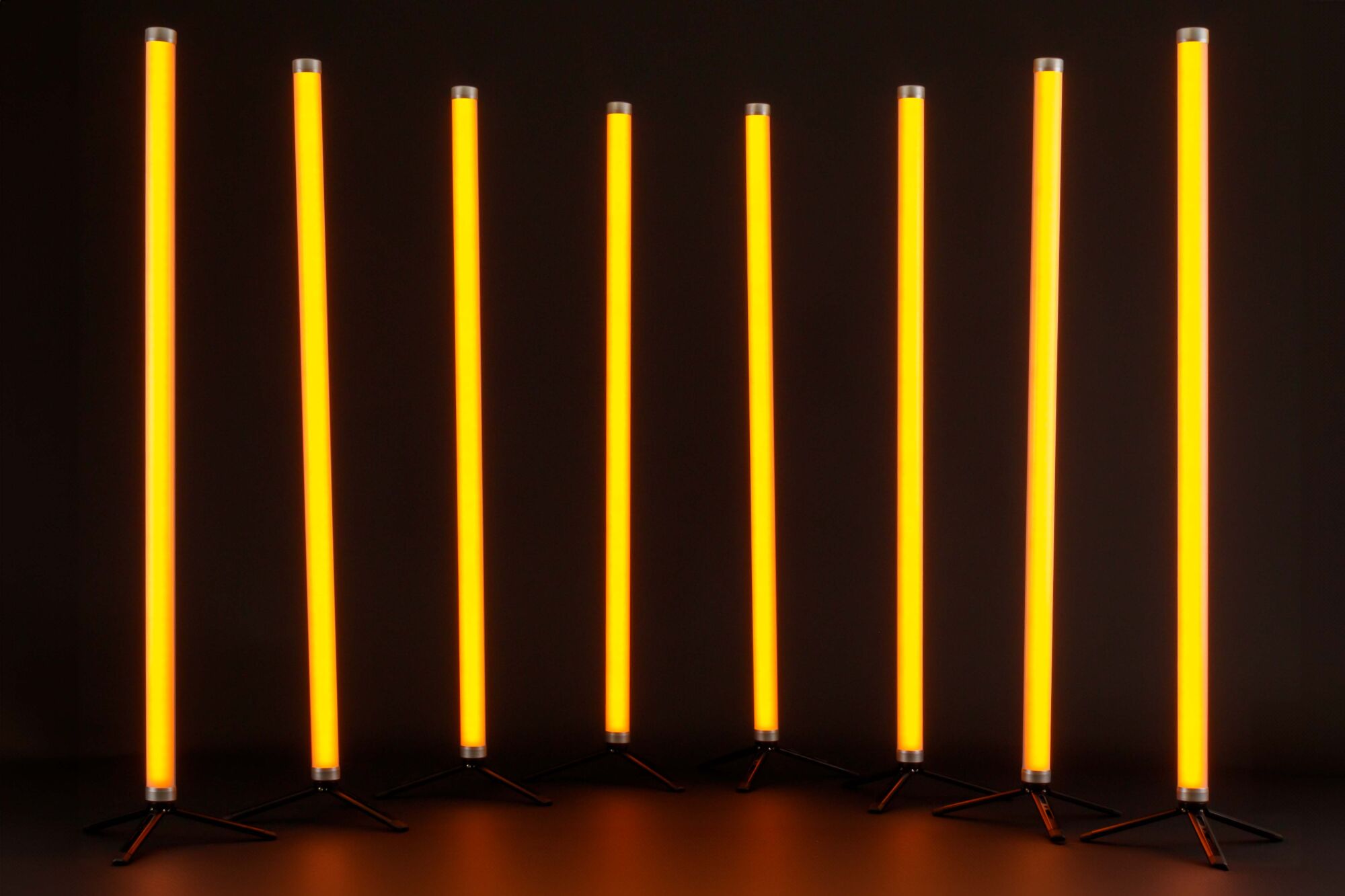

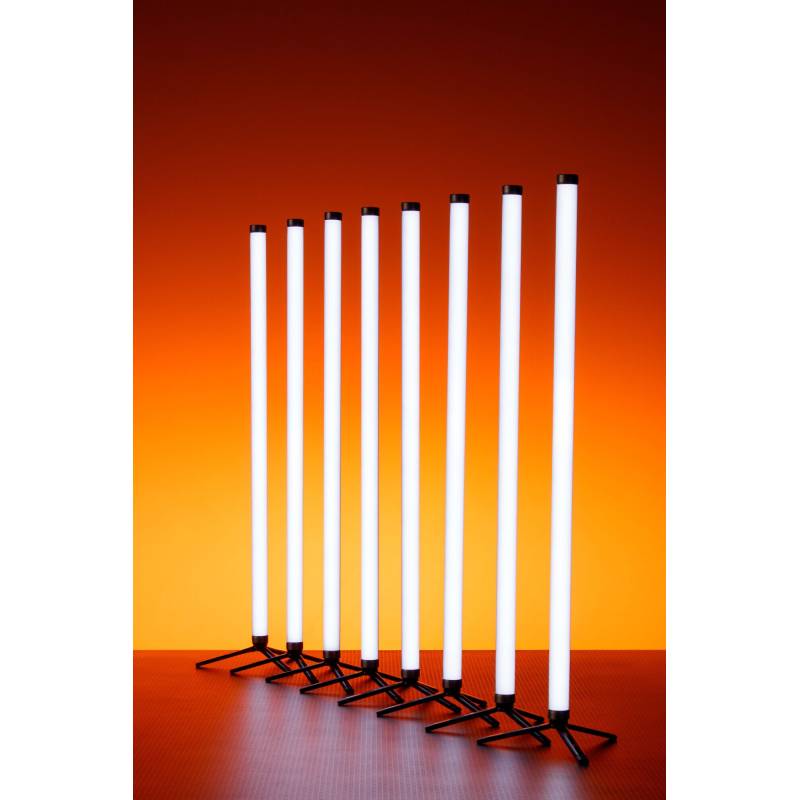

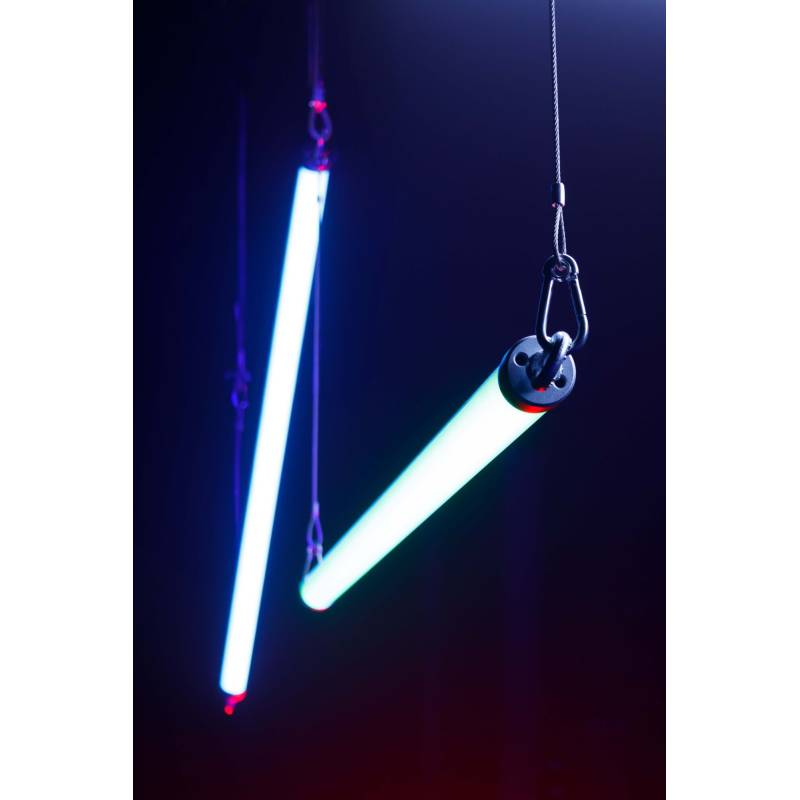

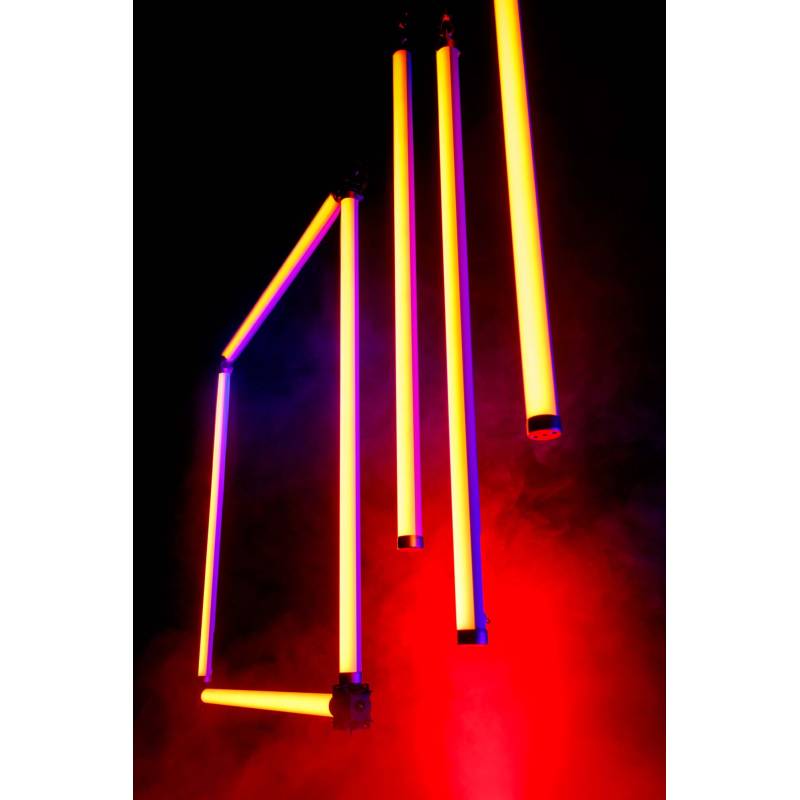

Neos X1
5IN1 RGB + Amber + Mint
Wireless DMX control
Vision Control App
Length 100 cm
IP 54
Pixel control 16 sectors
- Model: SG NEOSX1
- Weight: 1.80
- EAN: 8032496932987
- This product has a minimum quantity of 1

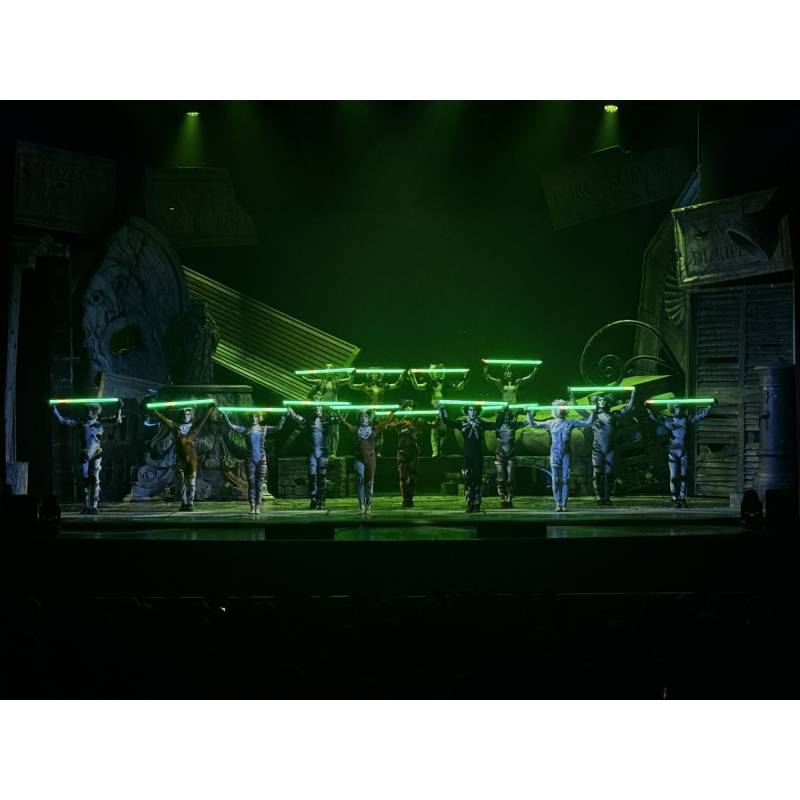

NEOS X1 is a professional IP54 battery-powered LED tube designed for scenic applications, events, and architectural installations where maximum creative flexibility and advanced color control are required.
Thanks to its 5-color RGBAM emission system, IP54 protection rating, integrated lithium-ion battery, and 2.4 GHz wireless DMX transceiver, NEOS X1 represents an advanced solution for lighting designers who require color precision, operational autonomy, and complete installation freedom.
It is equipped with a high-performance multi-chip RGBAM LED source and delivers an extended and more natural color reproduction compared to traditional RGB systems, with more balanced whites and more accurate pastel shades. The tube provides a uniform light emission along its diffusing surface, ideal for linear effects, ambient washes, and decorative applications.
NEOS X1 is completely flicker-free thanks to high-frequency electronic control and an optical design optimized for professional video recording.
The control system allows extensive operational flexibility with multiple DMX modes and built-in automatic programs, along with full color parameter management. Battery management is optimized to extend runtime depending on intensity and selected operating modes, with real-time monitoring and dynamic control directly via APP.
The compact and lightweight structure of the tube is made of high-strength aluminum housing, which improves heat dissipation and increases overall robustness, making it suitable for both indoor and outdoor installations, ensuring durability and quick positioning even in complex configurations.
To make control accessible to everyone, wireless technology has been integrated with the dedicated VISION CONTROL App. Thanks to its intuitive interface, every parameter of NEOS X1 can be easily monitored and adjusted, static programs and complex dynamic effects can be created with a simple touch, without the need for cables or external controllers. Through the app it is also possible to manage DMX addressing, select channel modes, and monitor in real time battery status and runtime. This allows both professionals and less experienced users to work with simplicity, precision, and full operational control.
| Light source | 320x0,5W LED RGB+Amber+Mint (64R - 64G - 64B - 64A - 64M) LED lifespan: > 50.000h CRI ≥ 95 Ra LED refresh frequency:15 KHz |
| Optic system | Beam Angle: 135°x115° |
| Color system | LED source RGB+Amber+Mint (64R - 64G - 64B - 64A - 64M) Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Adjustable strobe effect Pixel control |
| Control and programming | 7 DMX configurations available: 3/4/6/13/48/80/88 channels Protocol USITT DMX 512 Built-in wireless DMX transceiver Vision Control APP Static Color mode Auto mode with 30 programs selectable from the display, with speed adjustment Color mode with 101 color macros and 112 white macros Color calibration system Power management system 4 different dimming curves available |
| Structure and cabinet | Die cast aluminum housing Color LCD display 1/4-20 UNC thread connection terminal Front opaline plexiglass IP54 rating |
| Power supply | Input Voltage: 18VDC - 5A Switching power supply unit Rechargeable internal Li-Ion battery: 14,4VDC 6400mAh Runtime battery: ~ 1h:45m (full ON - Boost power mode) Runtime battery: ~ 3h:50m (Color change - Boost power mode) Charging cycle: ~ 6 hrs (Projector turned off) Max power: 70W External power supply included IN AC 100-240V, 50/60 Hz - OUT 18VDC - 5A |
| Weight and dimensions | Net weight: 1,35 kg Dimensions: 1060xØ44 mm |
