EIKON J&J V2 wireless jack transmission system
Description
EKJ&J is a UHF wireless system for guitar and instruments that provides reliable, high-quality signal transmission.

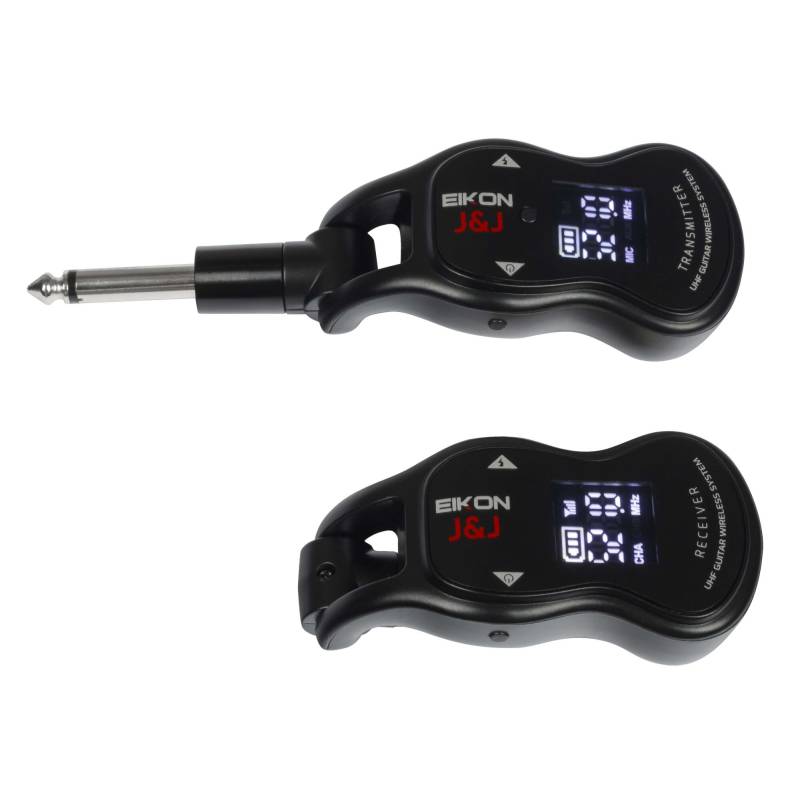

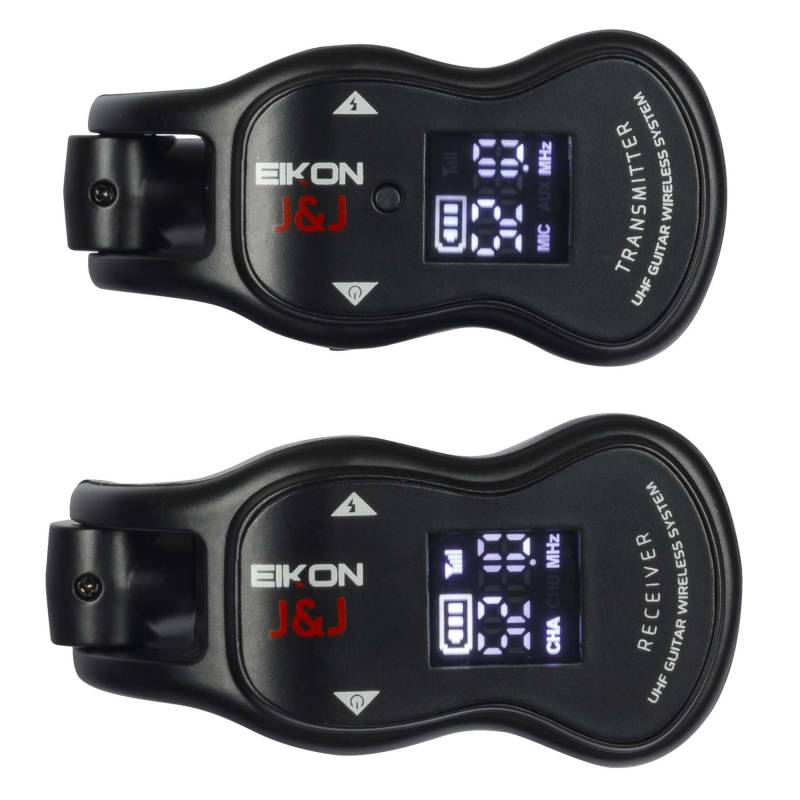

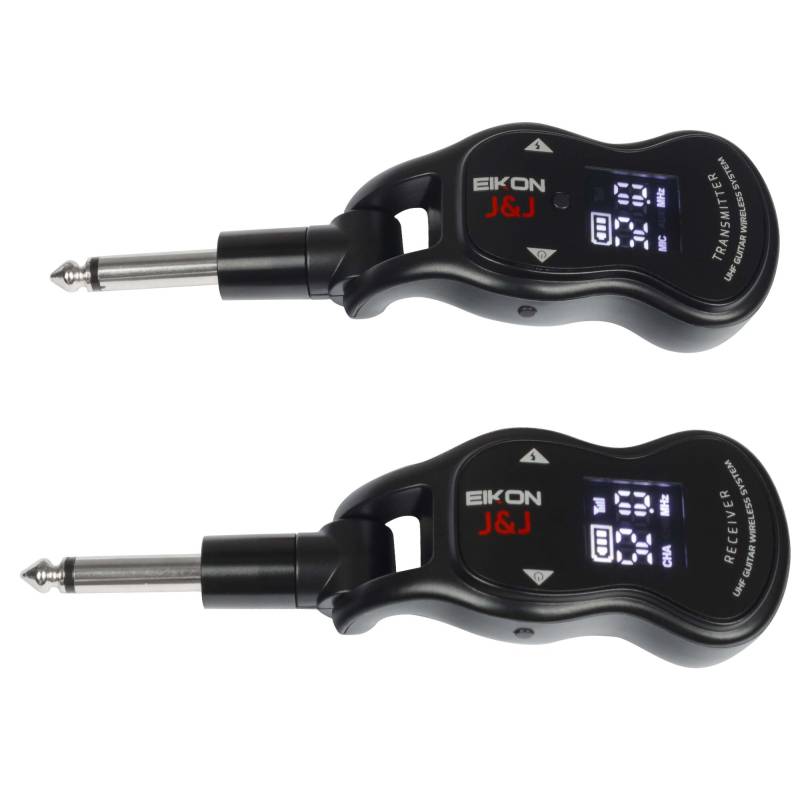

EKJ&J comes with 3 units: a compact "plug-in format" EKJ&J transmitter, a compact "plug-in format" EKJ&J receiver, and a USB to USB-C charging cable.
- Model: EKJJV2
- Weight: 0.25
- EAN: 8032496930266
- This product has a minimum quantity of 1
- UHF 512 - 541 MHz or 863 – 865 MHz frequency band
- Quartz locked modulation mode
- Up to 30 meters range
- Built in 3.7V/500mA lithium battery
- 5V USB charging cable included
- Up to 4 hours autonomy
- Up to 6 systems usable in the same location

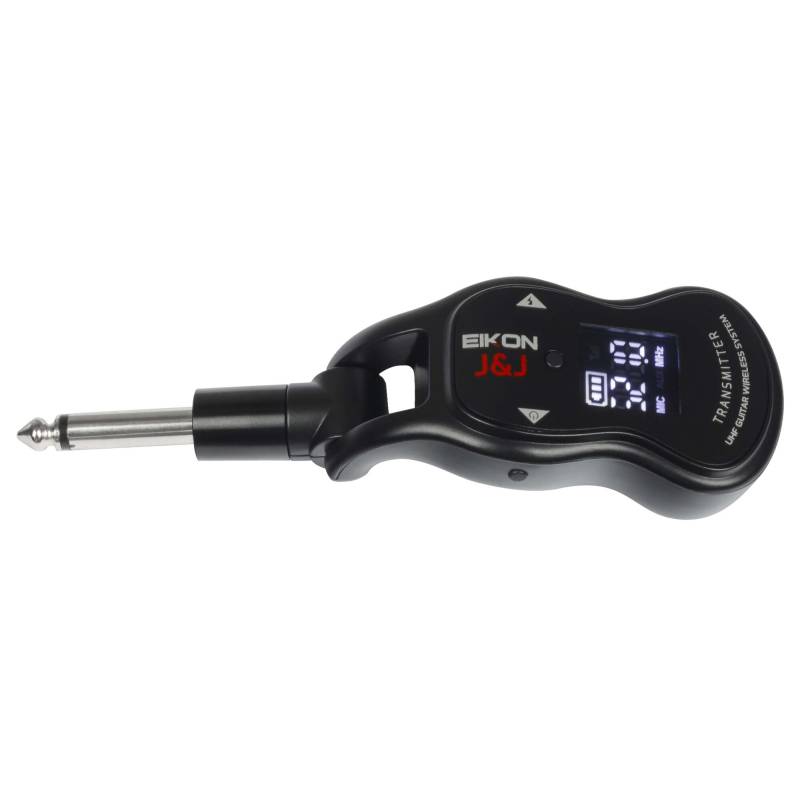

EKJ&J – UHF PLL Transmitter | |
RF Channels | 16 frequency presets |
RF Frequency Band | UHF: 512 - 541 MHz or 863 – 865 MHz |
RF Frequency Stability | ±0,002% |
RF Oscillation Mode | Quartz locked |
RF Modulation Type | Wideband FM Stereo |
RF Output Power | 10mW |
Sub-harmonic | < 40 dB |
Operating current | 120 mA |
Operating Time | 3 to 5 hrs |
Operating Power Supply | 3.7 V / 500 mA - built-in Lithium battery |
Charging mode | USB charging 5V – type USB mini connector |
Charging time | 3 hours |
Weight | 0.05 Kg |
|
|

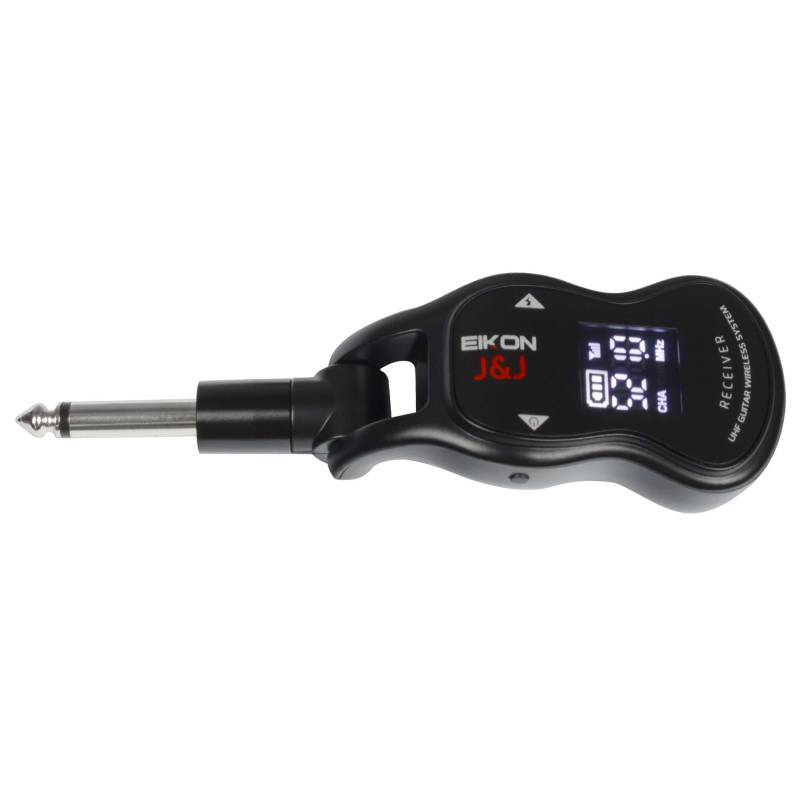

EKJ&J –UHF PLL Receiver | |
RF Channels | 16 frequency presets |
RF Frequency Band | UHF: 512 - 541 MHz or 863 – 865 MHz |
RF Frequency Stability | ±0,005% |
RF Oscillation Mode | Quartz locked |
RF Modulation Type | Wideband FM Stereo |
RF Receiving Sensitivity | < -98 dBm |
RF Receiving range | 15 to 30 meters depending on used band conditions |
Audio dynamic range | 106 dBm |
THD Distortion | < 0.5% |
S/N Ratio | > 102 dBA |
Audio output connector | 6.3 mm Mono Jack |
Output Power Max (continuous) | 400 mW |
Operating current | 80 mA |
Operating Time | 5 hours |
Operating Power Supply | 3.7 V / 500 mA - built-in Lithium battery |
Charging mode | USB charging 5V – type USB mini connector |
Charging time | 3 hours |
Weight | 0.05 Kg |
