UXLR - EIKON wireless XLR transmission system
Description
UHF PLL wireless audio system for XLR signals, consisting of female XLR transmitter, male XLR receiver, USB-C cable, semi-rigid case. Dual input sensitivity, Phantom Power. 2 frequency bands: 863-865 MHz or 568.500–580.100 MHz
- Model: UXLR
- Weight: 0.40
- EAN: 8032496926344
EIKON is pleased to announce the arrival of UXLR, a device with an exclusive design accessible to anyone to extend their wireless connections.

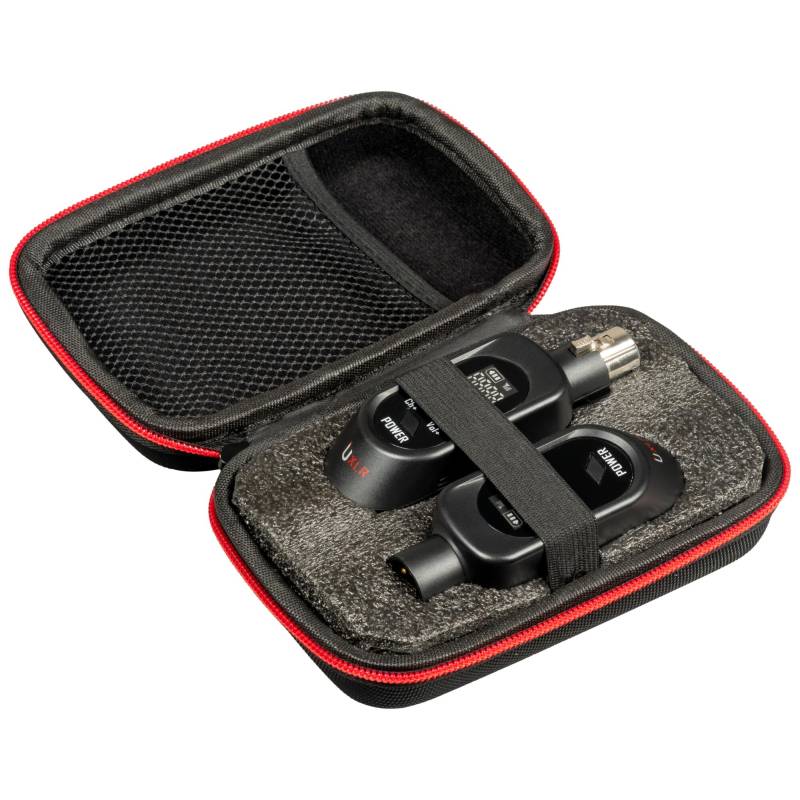

The UXLR is a UHF PLL wireless audio system for the transmission of signals that travel via an XLR connection, to such a degree as to provide a signal that is reliable and of high quality. The system is composed of 3 units: female XLR transmitter device, male XLR receiver device and USB-C charging cable, all enclosed in a practical semi-rigid case.

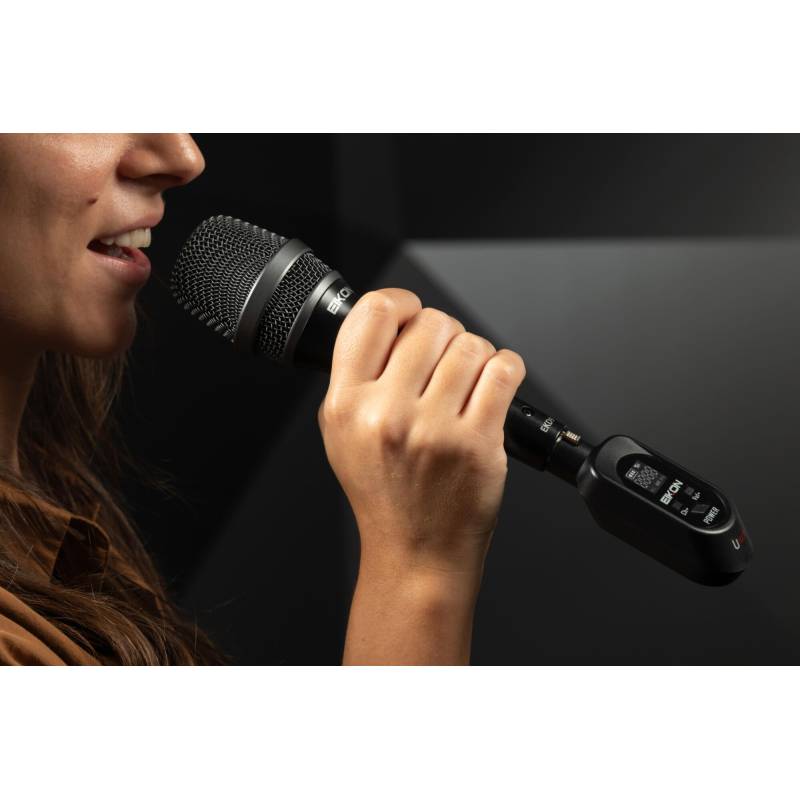

There are 16 channels of frequencies available (30 for the version in the 500 MHz band), allowing the possibility of using the device simultaneously or in the presence of other wireless equipment. UXLR represents the simplest and most cost-effective way to wirelessly transmit balanced or unbalanced XLR signals such as those connecting mixer equipment with active speakers and amplifiers, or to turn any dynamic or condenser microphone into a wireless microphone, thanks to dual input sensitivity and the Phantom Power function.
- MIC / LINE input sensitivity selection
- UHF Quartz locked DQPSK modulation mode
- Up to 30 meters range
- Built in 3.7V/800mA lithium battery
- 5V USB-C charging cable included
- Up to 5 hours autonomy
UXLR – UHF PLL Transmitter | |
RF Channels | 16 or 30 frequency presets depending on band |
RF Frequency Band | UHF: 863-865 MHz or |
RF Frequency Stability | ±0.002% |
RF Oscillation Mode | PLL Synthesized |
RF Modulation Type | DQPSK |
RF Output Power | 10mW |
Sub-harmonic | < 40 dB |
Operating current | 130 mA |
Operating Time | 3 to 5 hrs |
Operating Power Supply | 3.7 V / 800 mA - built-in Lithium battery |
Charging mode | USB charging 5V – type C connector |
Charging time | 3 hours |
Weight | 0.10 Kg |
|
|
UXLR – UHF PLL Receiver | |
RF Channels | 16 or 30 frequency presets depending on band |
RF Frequency Band | UHF: 863-865 MHz or |
RF Frequency Stability | ±0.005% |
RF Oscillation Mode | PLL Synthesized |
RF Modulation Type | DQPSK |
RF Receiving Sensitivity | < -98 dBm |
RF Receiving range | Up to 30 meters |
Audio dynamic range | 106 dBm |
THD Distortion | < 0.5% |
S/N Ratio | > 102 dBA |
Operating current | 85 mA |
Operating Time | 3 to 5 hrs |
Operating Power Supply | 3.7 V / 800 mA - built-in Lithium battery |
Charging mode | USB charging 5V – type C connector |
Charging time | 4 hours |
Weight | 0.10 Kg |
