SG HLF4D

LIGHT SOURCE

• 1x230W Led COB Cold white 5600K

• CRI = 95 Ra

• LED lifespan: > 50.000h

• LED refresh frequency: adjustable from 900 Hz to 20 KHz. Anti flicker

OPTIC SYSTEM

• Beam Angle: manual zoom from 9° to 51°

• Field Angle: manual zoom from 13° to 62°

• Illuminance: 10500 Lux @ 5mt (9°)

• Illuminance: 977 Lux @ 5mt (51°)

COLOR SYSTEM

• Cold White 5600K COB LED Source

EFFECTS

• Linear dimmer 0-100%

• Independent adjustment of dimmer with external knob

• Adjustable Strobe

• 4 Dimmer curves available (Linear / Square / I-Square / S-Curve)

• 2 Dimmer mode selectable (LED / Halogen)

CONTROL AND PROGRAMMING

• 5 DMX configurations available: 1/2/2/4/5 channels

• Protocol USITT DMX 512

• Manual dimmer mode controlled by independent knob or by display

STRUCTURE AND CABINET

• Aluminium housing black color

• New PMMA fresnel lens

• LCD blue graphic display

• Mounting points: single bracket

• Rotating barndoor included

• XLR 3/5-poles DMX IN/OUT connection

• USB connection for software upgrade and wireless control (wireless pen not included)

• IP rating: IP20

• Electronic controlled forced air fan cooling system “low noise”

• 3 selectable fan modes

• Pan / Tilt / Zoom pole control (available only on request – order code SG HLF4DPL)

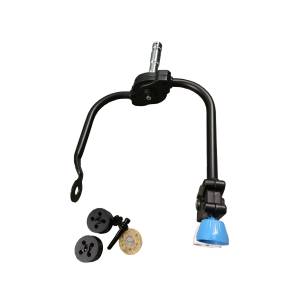

• Pan / Tilt bracket for pole control (sold separately – order code SG HLF4PLBR)

POWER SUPPLY

• Input Voltage: AC~100-240V, 50/60 Hz

• Switching power supply unit

• Max power: 250W @ 230VAC

• IN/OUT power connection with TrueONE sockets

• Power supply cable 1mt included

• Max 4 pcs linkable @ 230VAC

WEIGHT AND DIMENSIONS

• Net weight: 8,7 kg

• Dimensions: 357x401x404(h) mm (barndoors included)
