8-channel Compact Mixer PLAYMIX8
Description
8 IN Compact Mixer - 24bit FX DSP. - 4 MONO MIC/LINE IN with 3 band EQ , -20 dB PAD and PHANTOM power. - 2 Low Noise MIC Preamplifiers. - 2 STEREO LINE IN. - MAIN outputs with XLR-M connectors - Bluetooth - MP3 Player/Recorder Applictions: home recording, education, personal mixer
- Model: PLAYMIX8
- Weight: 2.80Kg
- EAN: 8032496914587
- This product has a minimum quantity of 1
PLAYMIX is a series of mixers created by PROEL to offer in a very compact and stylish package a high inputs density, a full set of features and a superior audio quality, at a very convenient price point.
PLAYMIX mixers are available in 3 models, with the same channel and master functions, but offering 6, 8 or 10 inputs respectively. The mono MIC/LINE channels feature low-noise, high-headroom microphone preamps, 3-band EQ with sweep MIDs and HPF, and 60mm control faders, for a full control of your sound.

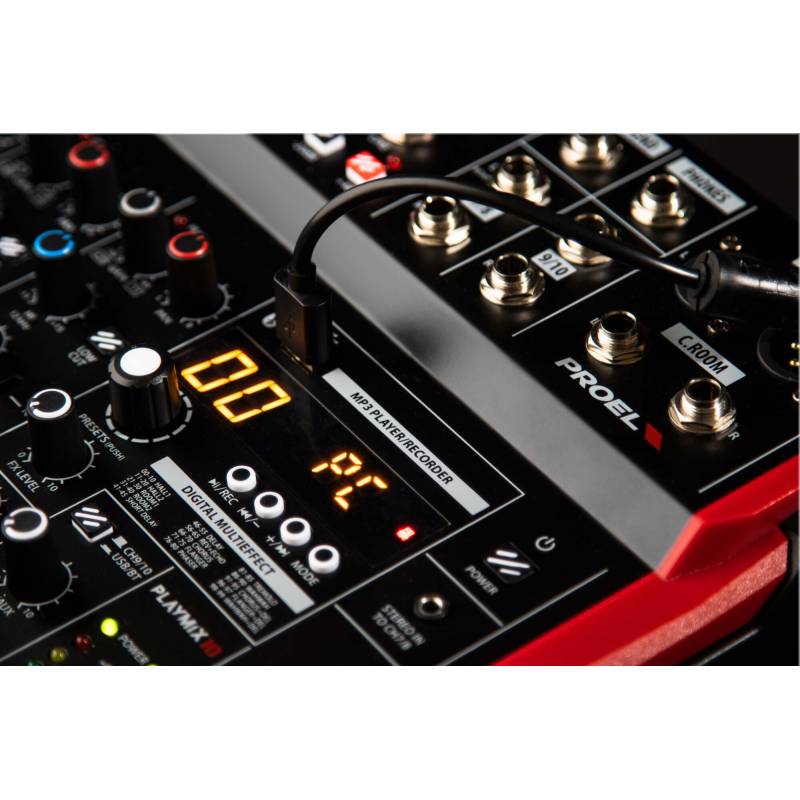

All models feature an advanced DIGITAL section with LCD display, including:
- A high-quality 24-bit built-in DSP with 100 studio-grade presets of single and combined effect (REVERBS, DELAYS, MODULATIONS)
- A 48KHz stereo USB audio interface for playing/recording thru PC connection

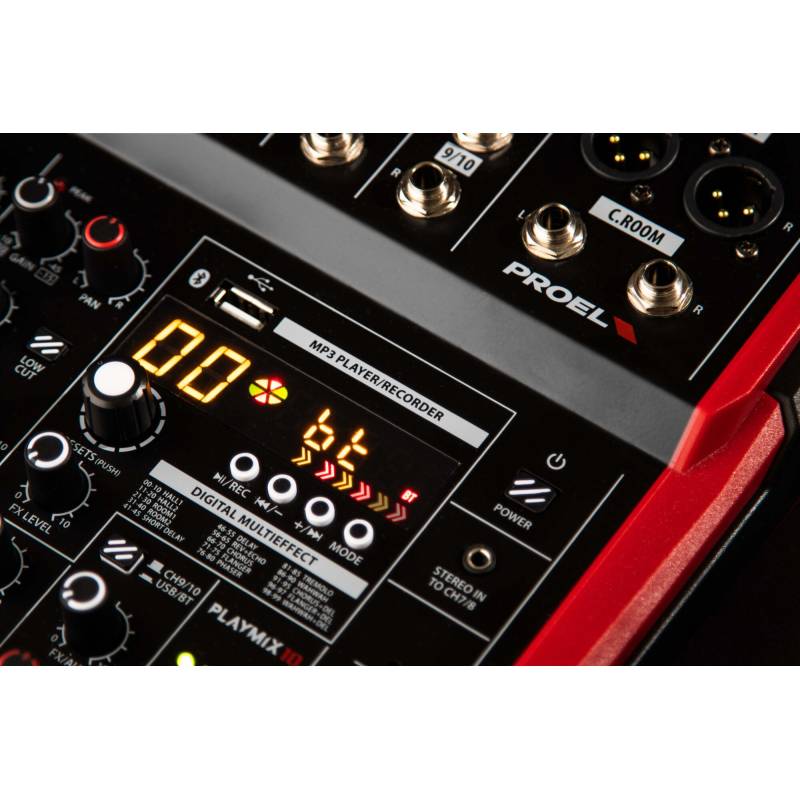

- A built-in MP3 player from USB memory key or BLUETOOTH interface

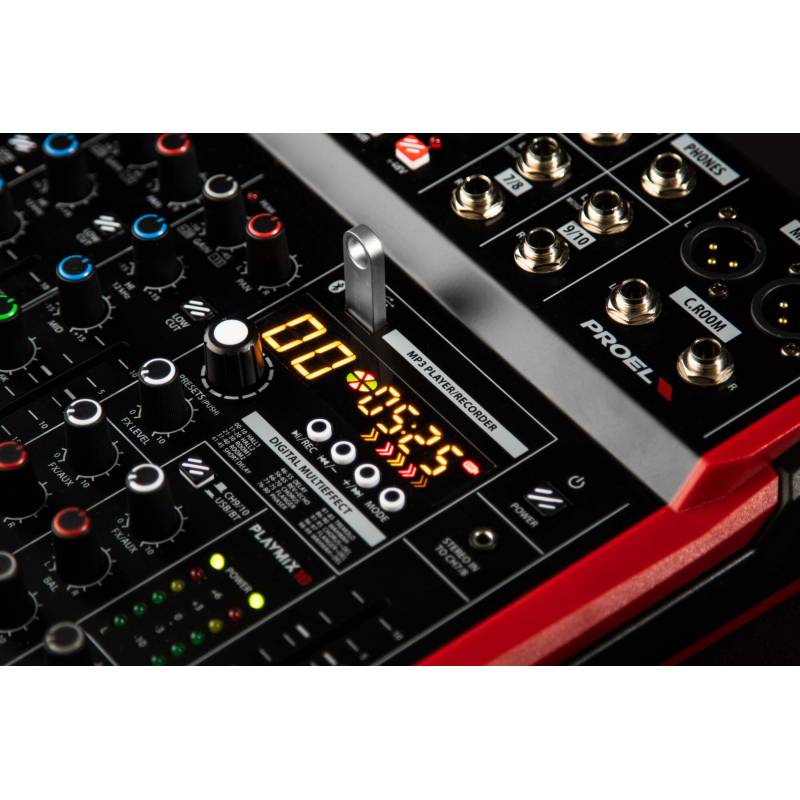

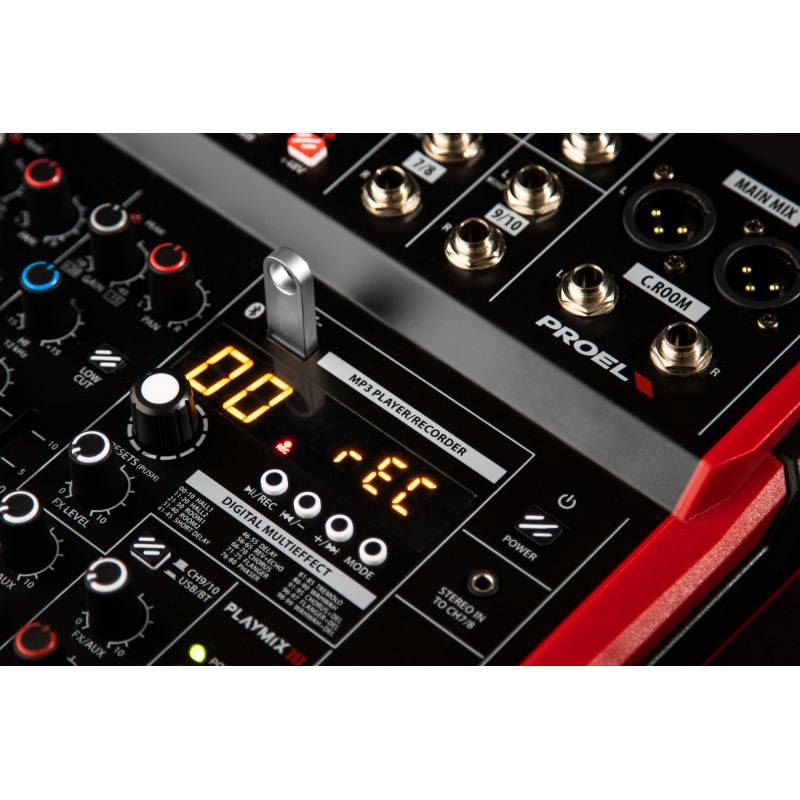

- On-the-go stereo recording on USB memory key

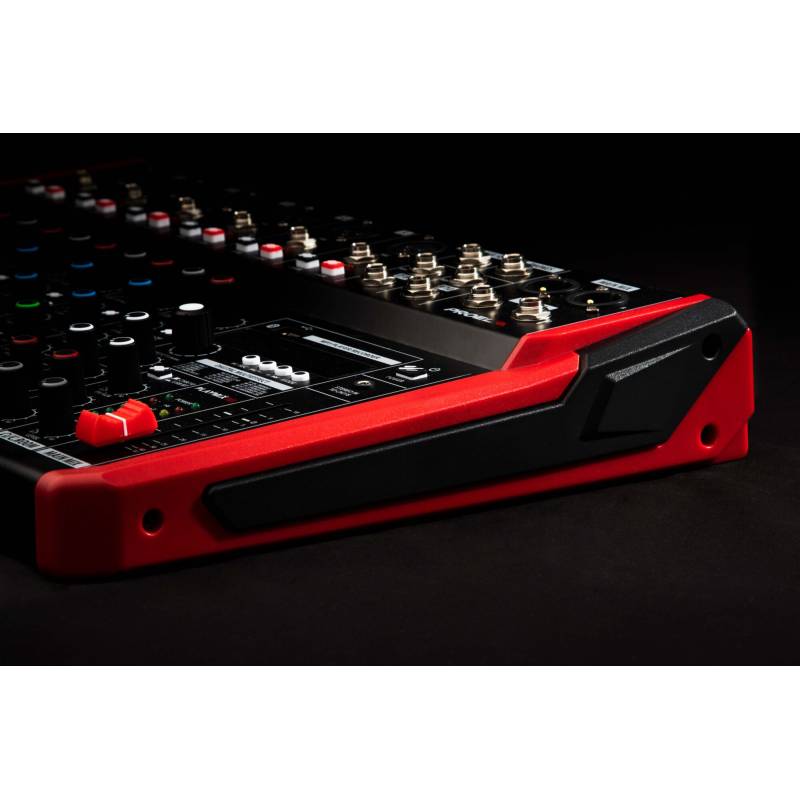

Carefully designed and engineered in Italy by PROEL, PLAYMIX mixers are hosted in rugged cases, providing extended durability for a stage-proof use and they offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound for a wide range of applications.
| MONO INPUT CHANNEL | |||
| Mic Input | sensitivity | from -10 to -45 dB | Balanced XLR-F |
| impedance | 1 Kohm | ||
| Line Input | sensitivity | from +20 to -15 dB | Balanced JACK |
| impedance | 20 Kohm | ||
| Lo cut | 80Hz, 6dB/oct. | ||
| EQ | HIGH (shelving) | ±15 dB @ 12K Hz | |
| MID (peaking) | ±12 dB @ 250-6K Hz | ||
| LOW (shelving) | ±15 dB @ 80 Hz | ||
| STEREO INPUT CHANNEL | |||
| Line Input | sensitivity | from +12 to -15 dB | Balanced JACK |
| impedance | 20 Kohm | Stereo Mini JACK | |
| MASTER SECTION | |||
| MAIN MIX | nom. out level | +4 dBu | Unbalanced XLR-M |
| C. ROOM output | nom. out level | +4 dBu | Unbalanced JACK |
| SEND output | nom. out level | +4 dBu | Unbalanced JACK |
| HEADPHONES | min. impedance | 64 ohm | Stereo JACK |
| Bluetooth | Version 5.0, Audio Streaming | ||
| USB Audio Interface | Stereo IN/OUT, 16-bit converter 44.1 KHz (PENDRIVE) / 48 KHz (PC) sample rate | Type A | |
| DIGITAL EFFECT PROCESSOR | |||
| Effects | 100 presets | ||
| A/D and D/A converters | 24 bit | ||
| DSP resolution | 24 bit | ||
| Controls | 2-DIGIT display, DIAL, LEVEL | ||
| GENERAL SPECIFICATIONS | |||
| Maximum level | all outputs | +15 dBu | |
| Crosstalk | meas. at 1 KHz | > 75 dB | |
| HUM & Noise | unweighted | < 90 dB | |
| THD + Noise | at +4dB, 1kHz | < 0,009 % | |
| Dimensions (WxHxD) | 331 x 274 x 61 mm | ||
| Weight | 2,50 kg | ||
| POWER REQUIREMENTS | |||
| Supply | use only supplied AC/DC ADAPTER 5VDC 1A | ||
| Mains Supply Voltage | 100-240 VAC (±10%) 50/60 Hz | ||
| Consumption | 15 W |
