AQU Flex 7Z
Description
AQU Flex 7Z
Led source 7x40W RGBW
Motorized zoom 4° - 45°
Outdoor use IP65
DMX control
- Model: SG AQUFLEX7Z
- Weight: 9.50Kg
- EAN: 8032496916307
- This product has a minimum quantity of 1
AQUFLEX7Z is the latest evolution in Sagitter's range of outdoor projectors. This innovative product represents a cutting-edge solution as it combines excellent performance, versatility, and durability.
AQUFLEX7Z is designed to adapt to various applications, offering the flexibility needed to excel in different indoor and outdoor contexts: whether for concerts, live events, theatrical performances, or architectural lighting, it stands out for its superior performance.
Among its main features are:
- Extraordinary Brightness thanks to the 7 powerful 40W LED sources;
- Precision in RGBW mixing which allows for the creation of unique and immersive atmospheres;
- Special high-strength aluminum alloy that helps ensure durability and great reliability over time;
- Electronic zoom from 4° to 45° that allows for adjusting the projection to specific sizes and needs;
- IP65 certification: ensures complete protection against dust and water, making AQUFLEX7Z ideal for both indoor and outdoor applications.
| Light source | 7x40W led RGBW Full Color LED lifespan: > 50.000h LED refresh frequency: > 600Hz a 15 KHz flicker-free |
| Optic system | Projection angle: zoom from 4° to 45° Luminous flux: 22.000lux @ 5m (full on - 4.3°) PMMA plano-convex optics 42mm |
| Color system | RGBW Full color Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Adjustable strobe effect Color macros selectable via DMX Motorized zoom |
| Control and programming | 5 DMX configurations available:
4/5/7/13/17 channels Key lock password for display lock Protocol USITT DMX 512 Built-in wireless DMX transceiver Master/Slave mode Static Color mode Auto mode with 15 programs selectable from the display Color mode with 50 color macros Virtual white wheel with 11 macros Color calibration system 4 different dimming curves available |
| Structure and cabinet | High resistance die cast aluminum housing Color LCD display Front tempered glass “Light up” positioning with adjustable angle IP65 rating DMX 3-poles XLR IN/OUT IP65 connectors Mounting points: 1 pair of 1/4-turn locks omega bracket Low-noise controlled cooling system |
| Power supply | Input Voltage: AC~100-240V,
50/60 Hz Switching power supply unit Max power: 280W @ 230VAC Seetronic X Series IP65 Power Connectors IN/OUT Power supply cable 1mt included |
| Weight and dimensions | Net weight: 7,5 kg Dimensions: 297x450x200 mm |
-300x300w.jpeg "Case AQU Flex")
-300x300w.jpeg "AQU Bar 16P")

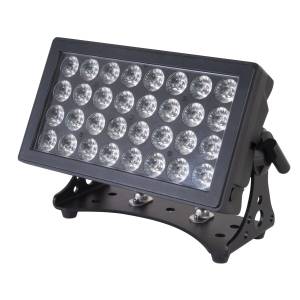

-300x300w.jpg "IP Color 32CDL WD version")

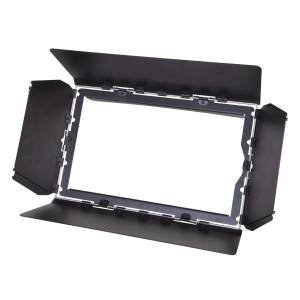

-300x300w.jpg "Barndoor for IP Color 32CDL")
-300x300h.jpg "Flightcase for Archer X10")
-300x300h.jpg "Super Clamp")

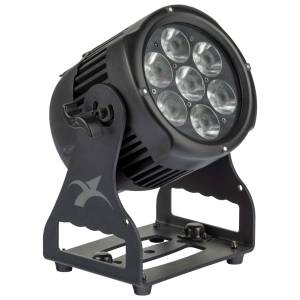

-300x300h.jpeg "AQU Par BAT")
