Archer X10
Description
Archer X10
Hybrid beam/spot moving head
Osram 420W HRI discharge source
Beam mode angle: 1.6° ~ 18°
Spot mode angle: 3° ~ 41°
Color wheel with 13 colors
13 static gobos
9 rotating gobos
Linear frost
8-facet circular prism
6-facet linear prism
DMX control
- Model: SG ARCHERX10
- Weight: 64.60Kg
- Dimensions: 85.00cm x 51.00cm x 67.00cm
- EAN: 8032496921752
- This product has a minimum quantity of 1
| Light source | OSRAM Sirius HRI 420W Metal
Halide Lamp Color temperature: 6600K |

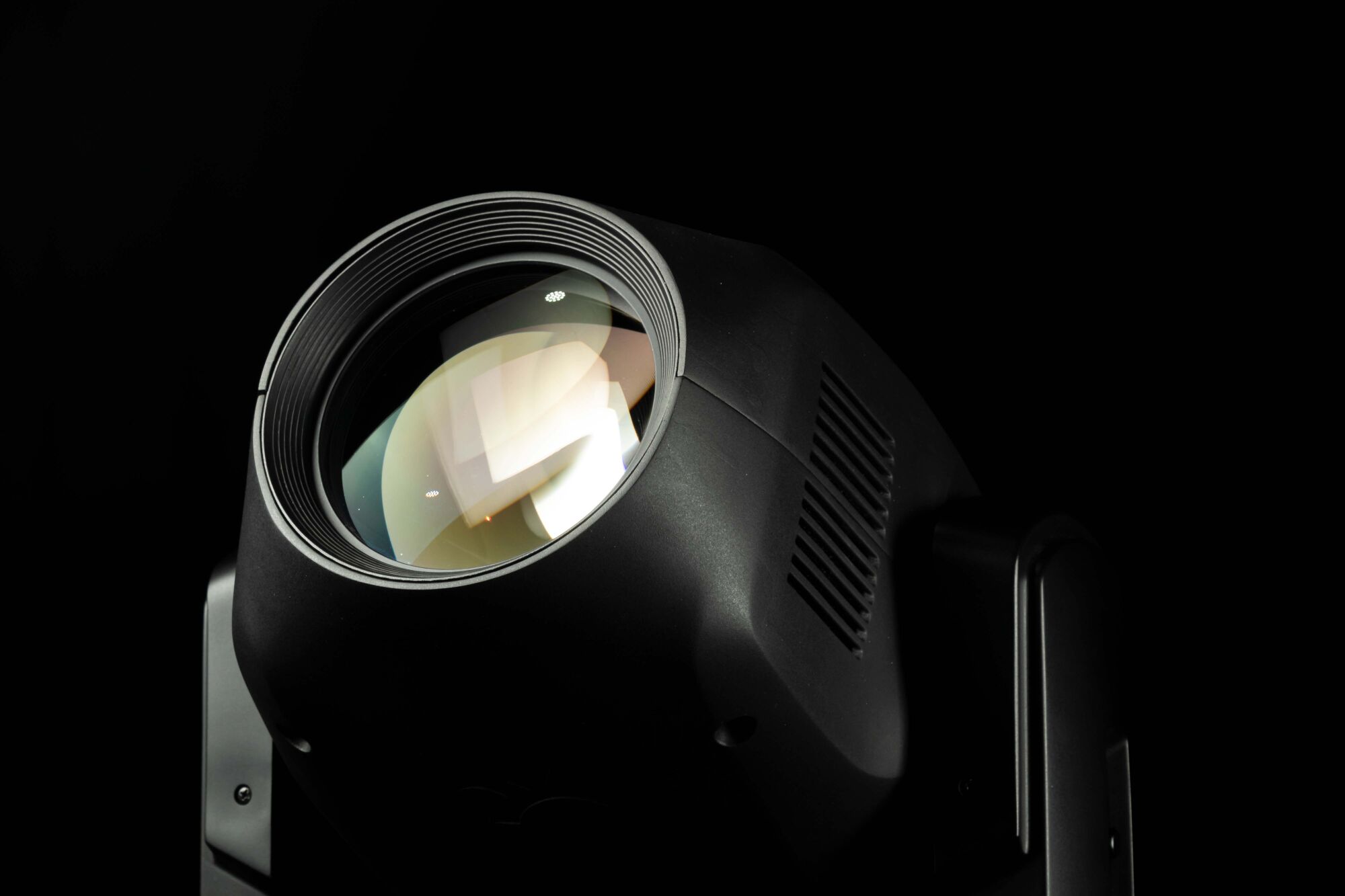

| Optic system | Projection angle: Beam mode
angle 1.6° ~ 18° - Spot mode angle 3° ~ 41° Electronic focus Electronic zoom Illuminance: 531700 Lux @ 10m (1.6°) |
| Color system | Color wheel 13 dichroic filters + open |
| Effects | 16-bit dimmer High speed mechanic strobe Fixed gobo wheel with 13 gobos + open Rotating gobo wheel with 9 gobos + open with bidirectional rotation and indexable Gobo scroll effects at variable speed Circular prism 8 facet with bidirectional rotation and indexable Linear prism 6 facet with bidirectional rotation and indexable Linear frost filter |
| Control and programming | 2 DMX configurations available:
19/324 channels Control signal USITT DMX512, RDM, Art-Net, sACN Optional wireless DMX receiver (order code SG WECONUSB) 4 Dimmer curves: Linear, Square, I-Square, S-Curve 5 Dimmer mode: Standard, Stage, TV, Architectural, Theatre |
| Structure and cabinet | Aluminum internal structure with

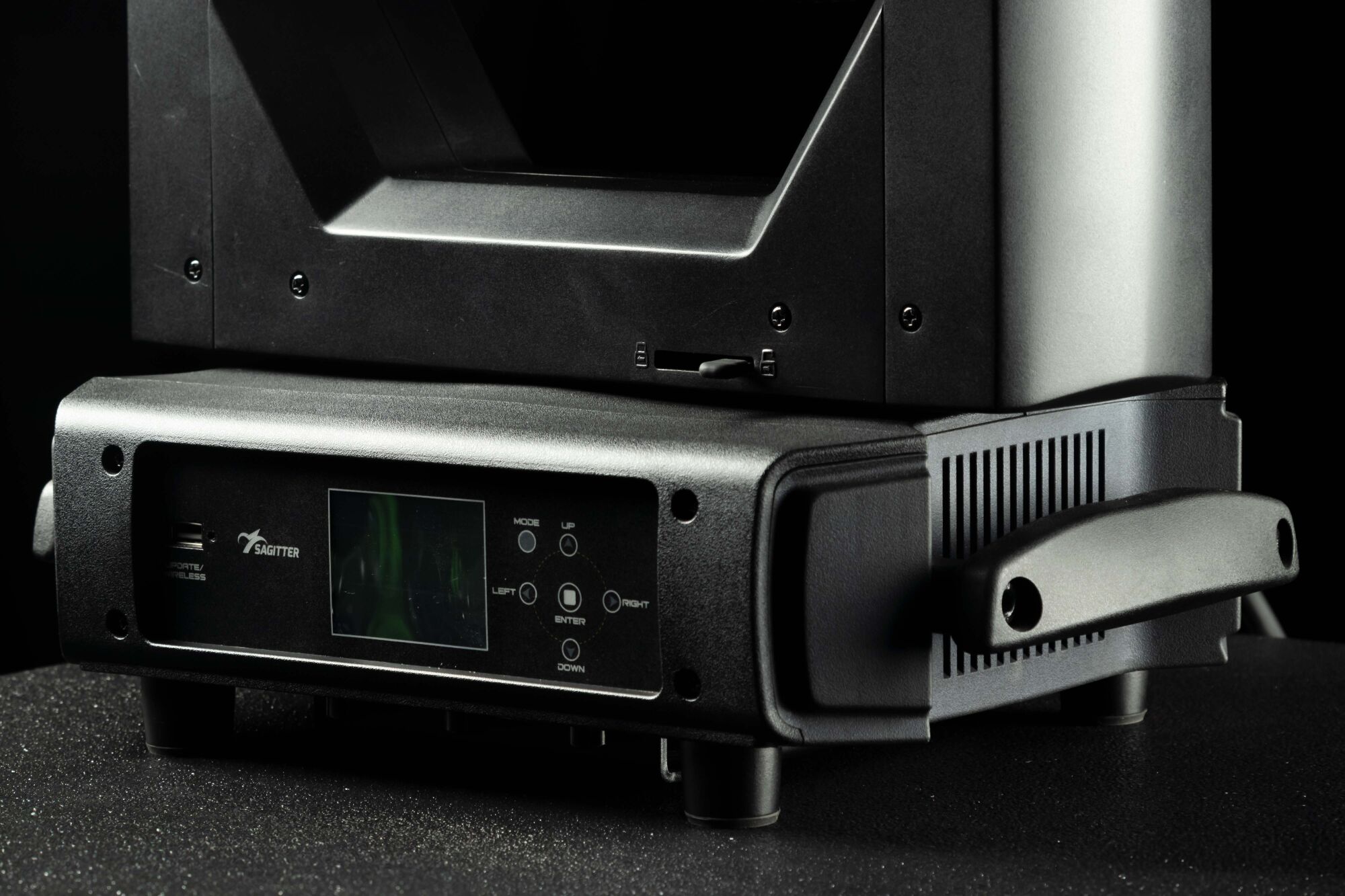

hi-resistance ABS cover High resolution LCD colour display Pan&Tilt three-phase motion motors Mounting points 2 pairs of 1/4-turn locks omega older Pan&Tilt movement lock system XLR 3-poles DMX IN/OUT connection XLR 5-poles DMX IN/OUT connection IP rating 20 Low-noise controlled cooling system Backup battery for user menu access without connecting to the main power |
| Power supply | Input Voltage: AC~100-240V,
50/60 Hz Output Voltage: AC~100-240V, 50/60 Hz – Max 5A Switching power supply unit Max power: 550W @ 230VAC Power connections: Seetronic X Series IP65 IN/OUT |
| Weight and dimensions | Net weight: 22 kg Size: 397 × 265 × 616 mm |
