AX16CL
- Model: AX16CL
- Weight: 12.30Kg
- Dimensions: 130.00cm x 26.00cm x 24.00cm
- EAN: 8032496975199
- This product has a minimum quantity of 1
DESCRIPTION

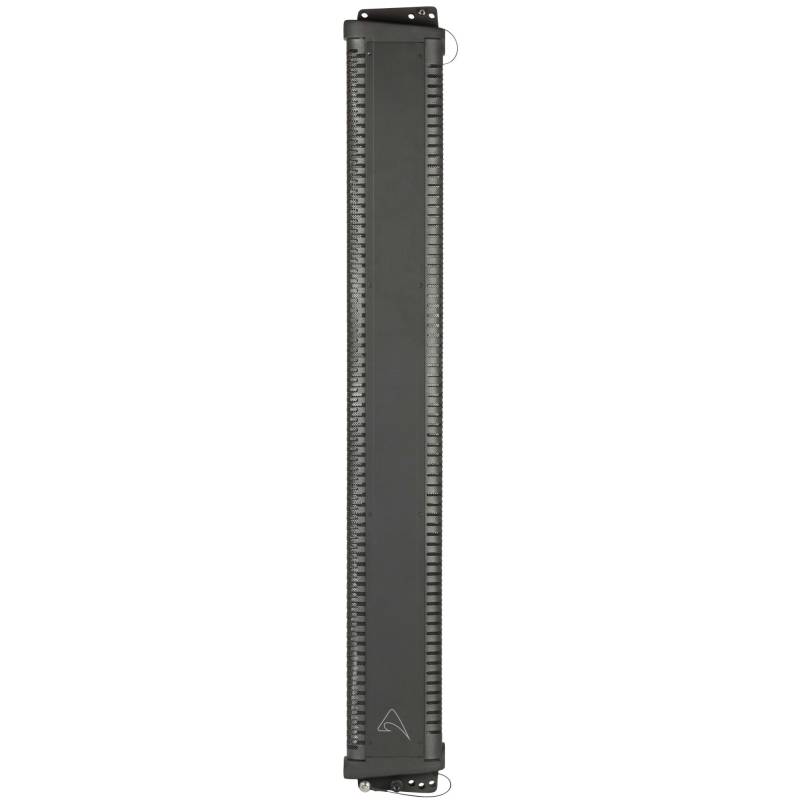

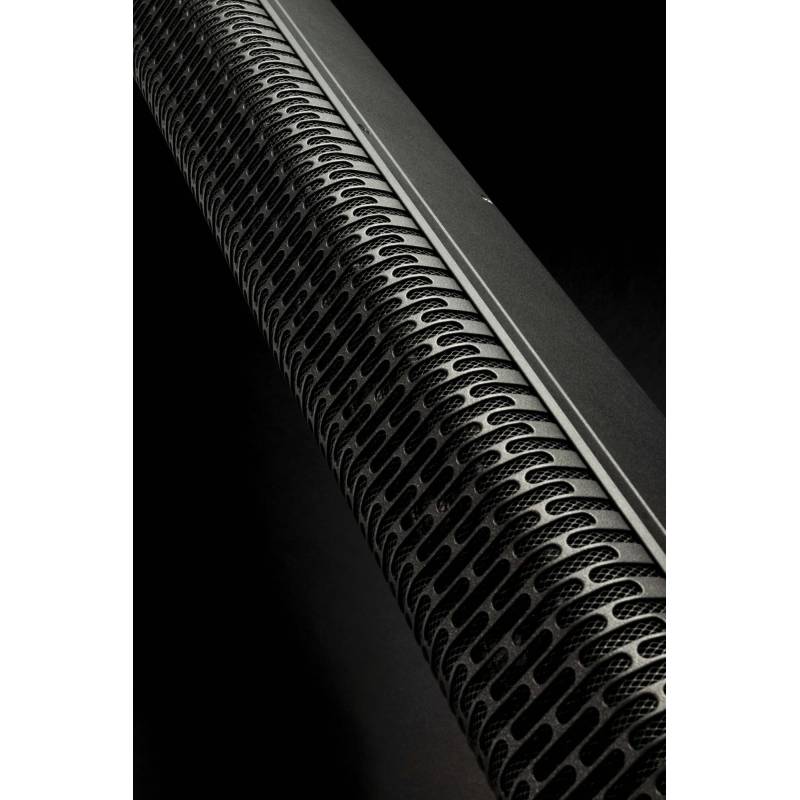

The AX16CL Line Array is a passive system equipped with sixteen 2.5” neodymium transducers with waterproof cones, designed for portable and permanently installed applications where high power and clarity are needed. The aluminum frame box structure ensures lightweight and strength, while the shape features a back-loaded transmission line design with clean mid-bass reproduction and natural cardioid behavior. The wide horizontal dispersion make the system flexible and adaptable to many different applications.
THE SYSTEM

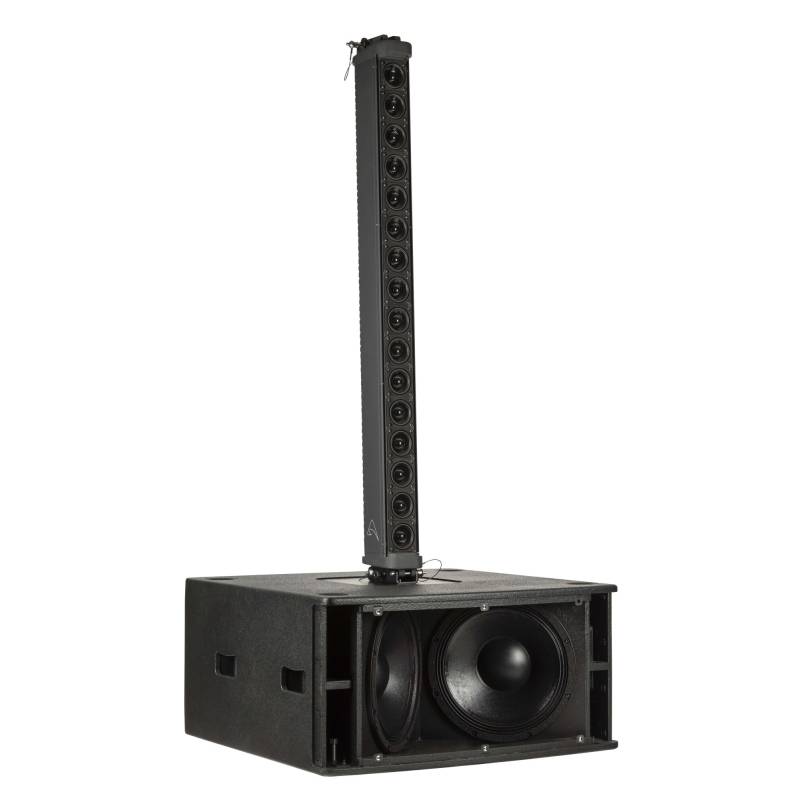

The AX16CL line array module has been designed to be combined with the SW212A, a compact and lightweight 2x12” Band-Pass/Bass-Reflex subwoofer, equipped with a 2800W Class D amplifier with Power Factor Correction and PROEL’s proprietary 40bit floating point CORE2 DSP. Up to four AX16CL modules can be driven by one amplifier channel of the SW212A subwoofer. The built-in CORE2 DSP, which can be also remotely controlled using PRONET AX software, provides 4 presets for different combinations: 2, 4 or 1 columns plus 1 user preset.
The standard system, composed of four AX16CL line array modules and two SW212A subwoofers, features 5600W of total power and a line-array dispersion pattern, making it the perfect solution for high-performance portable sound reinforcement applications.
RIGGING HARDWARE AND ACCESSORIES
Thanks to its elegant mechanical design the AX16CL can be easily transported, while the integrated suspension system makes its deployment very fast and simple. Each unit comes with two aluminum brackets and two pins that allows multiple array elements to be easily combined either together or with the matching SW212A subwoofer. The brackets allow inter-cabinet angles of 0°, 2° and 4°.
A complete range of accessories for transport, installation and connections are available.
KEY FEATURES
- High Power passive portable Line Array element
- 16 x 2.5” neodymium transducers with waterproof cones
- 320W continuous power – 640W program power
- Line Array dispersion characteristics
- Acoustic transmission line back loading design, resulting in clean mid-bass reproduction and natural cardioid behavior
- Wide horizontal dispersion
- Fast, easy-to-use integrated suspension system
- Aluminium frame structure
- Designed for mobile and installed applications
- Black or white finish
| SYSTEM | |
| System’s Acoustic Principle | Line Array Element Short Transmission Line Back Loading |
| Frequency Response (±3dB) | 200 Hz – 16kHz (Processed) |
| Nominal Impedance | 32 Ohm |
| Minimum Impedance | 23,7 Ohm |
| Horizontal Coverage Angle | 80° (-6dB) |
| Sensitivity (4V) | 103 dB SPL @ 1m* |
| Maximum Peak SPL @ 1m | 128 dB SPL |
| TRANSDUCERS | |
| Type | 16 x 2.5" (66mm) Neodymium magnet woofers, 0.8" (20mm) VC |
| Waterproof Cone | Waterproof Cone |
| Ventilated voice coil | Ventilated voice coil |
| INPUT CONNECTIONS | |
| Connector Type | Neutrik® Speakon® NL4 x 2 (1+/1- signal IN & LINK ; 2+/2- thru) |
| POWER HANDLING | |
| Continuous AES Pink Noise Power | 320 W |
| Program Power | 640 W |
| ENCLOSURE & CONSTRUCTION | |
| Dimensions (W x H x D) | 90 mm (3.54”) x 1190 mm (46.85”) x 154 mm (6.06”) |
| Enclosure Material | Aluminum |
| Paint | High resistance, water based paint, black or white finish |
| Flying system | Aluminum Fast Link structure with dedicated pins |
| Net Weight | 11,5 Kg (25,4 lbs.) |
| *measured @4 m and scaled @1 m |
